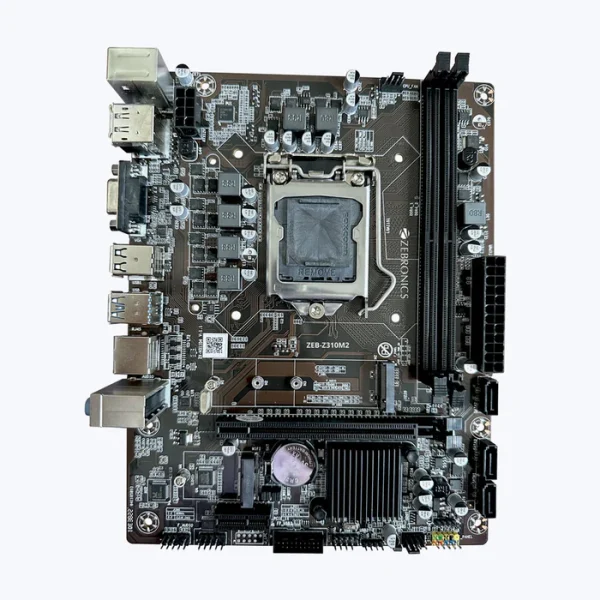

Zebronics Z310M2 mATX Intel LGA 1151 Motherboard
Brand: Zebronics
- DDR4 Memory Support: The Z310M2 NVMe motherboard is compatible with DDR4 memory modules, offering impressive speeds between 2133MHz and 2666MHz to guarantee optimal system performance.
- Socket configuration: Designed with an LGA 1151 socket, this motherboard guarantees smooth data transfer and increased processing power by supporting the latest generation of Intel processors.
- Powerful audio: Immerse yourself in a captivating audio experience featuring crystal-clear sound delivered through the 5.1 effect
- Motherboard: Equipped with LAN support, the motherboard ensures fast and reliable internet connectivity with speeds of 10/100/1000 Mbps. Furthermore, its PCIe 16 slot facilitates seamless data transfer for graphics cards and various expansion cards.
- Storage: The ZEB-Z310M2 NVMe motherboard provides 3 SATA ports, allowing for the connection of multiple storage devices such as hard drives and SSDs. Additionally, the inclusion of a SATA M.2 slot supports M.2 (NVMe) drives for additional peripheral connection to the motherboard.
- Connectivity: Incorporating USB 3.0 ports elevates data transfer speeds, offering swifter and more effective connectivity for external devices.
... people are viewing this right now
Original price was: ₹9,499.00.₹3,545.00Current price is: ₹3,545.00.
Out of stock
Email when stock available
Specifications
| Supported CPU | Intel i3/i5/i7/Celeron/Pentium 6th,7th,8th & 9th generation series processor in LGA 1151 | |
| Chipset | Intel H110 | |
| Memory Supported | 2 No.s DDR4 DIMM Memory Slots Memory up to 32GB Supports DDR4 2133/2400/2666 MHz memory | |
| BIOS | AMI BIOS | |
| I/O Interface | 1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio Jacks, 1 x Display Port , 1 x PS/2 for Keyboard & Mouse | |
| Onboard Interface | 1 x 24 Pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector,1 x Front Panel Connector, 1x Front Audio Connector, 1 x Speaker Connector, 1 x USB 2.0 Connectors, 1 x 4 Pin USB 2.0 Connector, 1 x USB 3.0 Connector, 1 x CPU Fan Connector, 1x SYS Fan Connector, 3 x SATA 3.0 | |
| Integrated LAN | Supports RTL8106E 10/100Mbps Ethernet LAN | |
| Expansion Slot | 1 x PCI Express x16 Slot, 1 x PCI Express x1 Slot, 1 x M.2 Slot, 1 x M.2 for WIFI module | |
| Form Factor | Micro-ATX | |
| Country of Origin | People's Republic of China | |
Package contents |
||
| ZEB-Z310M2 Motherboard | 1U | |
| SATA Cable | 1U | |
| I/O Backplate | 1U | |
| Driver Disc | 1U | |
| User Manual | 1U |
