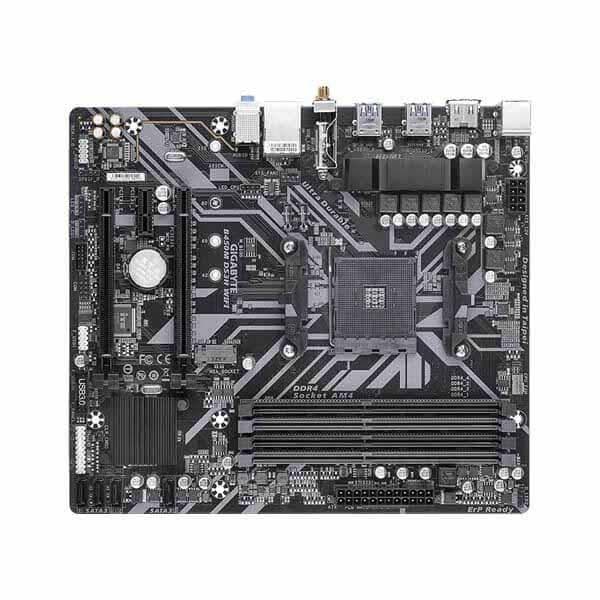

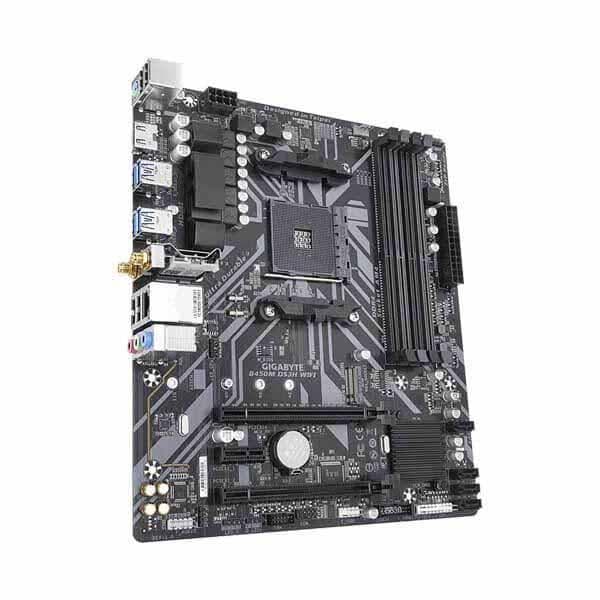

Gigabyte B450M DS3H WiFi Motherboard

Gigabyte B450M DS3H WiFi Motherboard

Features

• Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® Dual Band 802.11ac WIFI & BT 4.2
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• High Quality Audio Capacitors and Audio Noise Guard Design
• RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
• Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
• Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• CEC 2019 Ready, Save Power with a Simple Click

AMD StoreMI technology

GIGABYTE B450M DS3H WiFi and 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy • Optimizing computer responsiveness from system boot to application launch • Offering SSD performance with HDD capacity at an affordable cost • Quickly accessing key files by automatically learning users' computing behaviors

GET READY FOR AMD RYZEN™ 5000 SERIES

GIGABYTE B450M DS3H WiFi motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE B450M DS3H WiFi motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE B450M DS3H WiFi motherboards are perfect for users looking to build the best AMD platform systems.

CONNECTIVITY

Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2. Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s) GIGABYTE B450M DS3H WiFi comes with M.2 solution offers considerably faster storage performance and support for PCIe and SATA interfaces* for M.2 SSD devices.

Realtek GbE LAN with cFosSpeed Internet Accelerator Software

B450M DS3H WiFi has Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

COOLING

Smart Fan 5

B450M DS3H WiFi comes With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

PERFORMANCE

Immersive VR Gaming Experience

> VR requires more performance than Full HD graphics for a steady 90FPS or greater. > Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC

• Graphics Card: NVIDIA GTX 1050 / AMD R9 290 or greater, Compatible HDMI 1.4 video output
• CPU: AMD Ryzen™ 7 series processor
• Motherboard: GIGABYTE AMD X470 / B450 motherboards
• Memory: 8GB RAM or greater
• USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
• OS: Windows 10 64-bit or newer

LIGHTING

RGB Fusion 2.0 with Digital LEDs Support

With B450 M DS3H WiFi Motherboards, RGB Fusion 2.0 is even better with Digital LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. B450M DS3H WiFi Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

AUDIO

High-Quality Onboard Audio Design Delivers high-quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

ULTRA-DURABLE

Solid Pin Power Connectors

Make Good Connection and Significantly Lower the Wires Capacity

GIGABYTE B450M DS3H WiFi and 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading. Solid Pin Power connector advantages

1. Larger contact area for electricity
2. More metal quantity to sustain higher power and generated heat
3. Ultra durable and longer lifespan

START SULFURIZATION PROTECTION

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE B450M DS3H WiFi motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

B450M DS3H WiFi has HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

EXCELLENCE

GIGABYTE BIOS & Applications

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE B450M DS3H WiFi has been able to reinvent the BIOS to give users a better experience while setting up their new system.

CEC 2019 Ready

Save the power as easy as one click CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE B450M DS3H WiFi motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE B450M DS3H WiFi motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
