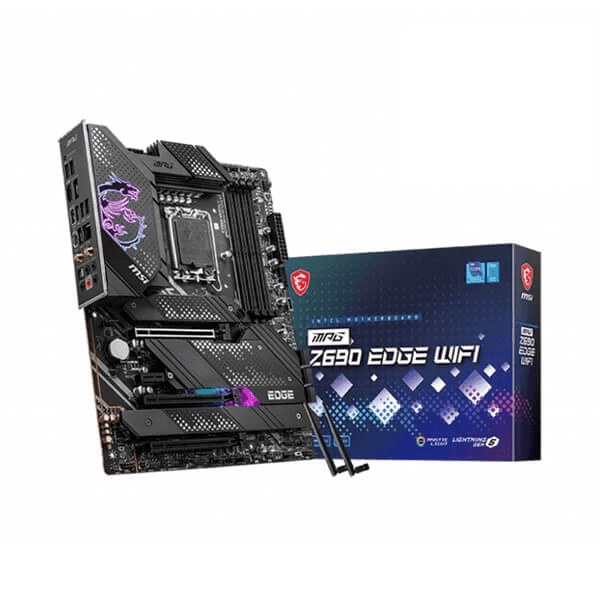

MSI MPG Z690 Edge WIFI DDR5 Intel Motherboard

Brands
10 sold in last 11 hours
Hurry! Over 8 people have this in their carts
  • Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  Estimated Delivery: Mar 31 – Apr 04
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

31,209.00

+

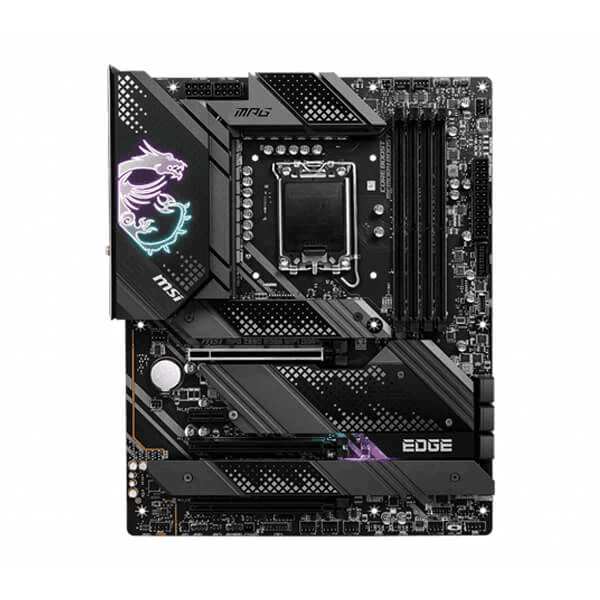

MSI MPG Z690 Edge WIFI DDR5 Intel Motherboard

Features:

MSI MPG Z690 Edge WIFI DDR5

  • MPG Z690 Edge Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
MPG Z690 EDGE WIFI
MPG Z690 EDGE WIFI


MSI Gaming Logo

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and Tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MPG Z690 EDGE WIFI

Game in Style

For competitive gamers looking for premium 12th Gen Intel Core performance with PCI-e 5.0 x16 graphics card architecture, accelerated DDR5 memory, and a vast array of M.2 Gen4 storage options, the MSI MPG Z690 EDGE WIFI gaming motherboard is perfect for gaming in style.

  • Supports Intel Core 12th Gen Processors (LGA 1700)
  • 4 x DDR5 DIMMs, Memory Boost (6400MHz+ OC)
  • Direct 16+1+1 Phase Power Design with 75A SPS
  • 4 x M.2 Gen4 Slots with Shield Frozr
  • 1 x PCI-e 5.0 x16 (128GB/s), 2 x PCI-e 3.0 x16 Graphic Card Slots
  • Intel I225-V 2.5G LAN
  • Wi-Fi 6E with Bluetooth 5.2
  • USB 3.2 Gen 2×2 Type-C (20Gbps)

Z690 Chipset, Direct 16+1+1 Phase VRM, Premium Cooling, DDR5 Memory Boost

MPG Z690 EDGE WIFI

MPG Z690 EDGE WIFI

MPG Z690 EDGE WIFI

MPG Z690 EDGE WIFI

Supports Intel Core 12th Gen Processors

The MPG Z690 EDGE WIFI motherboard supports 12th Gen Intel Core processors.

  • Form Factor: ATX
  • Socket Type: LGA 1700
  • Chipset: Intel Z690



Direct 16+1+1 Phase VRM with 75A SPS

The robust VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors:

1. Digital PWM IC

2. 1 Phase GT Power

3. 16 Direct Power Phases (Smart Power Stage / 75A)

4. 1 Phase AUX Power

6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.

Premium Cooling Solution

VRM Cooling: Features heavy-plated heatsinks, connecting heat pipe, choke and 7W/mK thermal pads for improved thermal dissipation.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

Chipset Cooling: Includes an enlarged heatsink.

4 x DDR5 Dual Channel (6400+ MHz Overclocked*)

Memory Boost: A fully-isolated circuit delivers pure DDR5 data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.

*1DPC 1R Max. overclocking frequency 6400+ MHz, supports Intel XMP 3.0 OC.

PCI-e 5.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6E Connectivity

MPG Z690 EDGE WIFI

MPG EDGE WIFI

MPG Z690 EDGE WIFI

MPG EDGE WIFI

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:

  • 1 x PCI-e 5.0 x16 slot (with Steel Armor)
  • 2 x PCI-e 3.0 x16 slots



*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 M.2 Connectors

The MPG Z690 EDGE WIFI motherboard features MSI’s latest M.2 slots (Intel Optane supported):

  • 4 x Gen4 x4 64Gb/s slots



*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

Processor
  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1700
Chipset Intel® Z690 Chipset
Memory
  • 4x DDR5 memory slots, support up to 128GB1
  • Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1
  • Max. overclocking frequency: 1
  • DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5400+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots
  • 3x PCIe x16 slots
  • PCI_E1 slot (From CPU)
  • Supports PCIe 5.0 x16
  • PCI_E3 & PCI_E4 slots (From Z690 chipset)
  • Supports PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (From Z690 chipset
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1/ 2
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi-GPU Supports AMD® CrossFire™ Technology
Storage
  • 6x SATA 6Gb/s ports
  • SATA5~8 (From Z690 Chipset)
  • SATAA~B (From ASMedia ASM1061)
  • 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061)
  • 4x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports PCIe 4.0 x4
  • Supports 2260/ 2280/ 22110 storage devices
  • M2_2 slot (From Z690 Chipset)
  • Supports PCIe 4.0 x4
  • Supports 2260/ 2280 storage devices
  • M2_3 slot (From Z690 Chipset)
  • Supports PCIe 4.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_4 slot (From Z690 Chipset)
  • Supports PCIe 4.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2~4 support Intel® Optane™ Memory
  • Supports Intel® Smart Response Technology for Intel® Core™ processors
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices1
  • Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
SATAA & SATAB do not support RAID function.
USB Intel® Z690 Chipset
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
  • 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel)
  • 2x USB 2.0 Type-A ports on the back panel
  • 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector
USB Hub-GL850G
  • 4x USB 2.0 ports available through internal connectors
Audio Realtek® ALC4080 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Intel® I225V 2.5Gbps LAN controller
WiFi & Bluetooth Intel® Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.22, FIPS, FISMA
Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1xTPM module connector
  • 1x Clear CMOS jumper
  • 1x Tuning controller connector
  • 1x TBT connector (Supports RTD3)
LED Feature 1x 4-pin RGB LED connector 3x 3-pin RAINBOW LED connectors 1x EZ LED Control switch 4x EZ Debug LED
Back panel ports
  • DisplayPort
  • 2.5G LAN
  • Wireless Antenna
  • Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2x2 20Gbps Type-C
  • Optical S/PDIF Out
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 2 kg
Dimensions 30 × 24 × 6 cm
