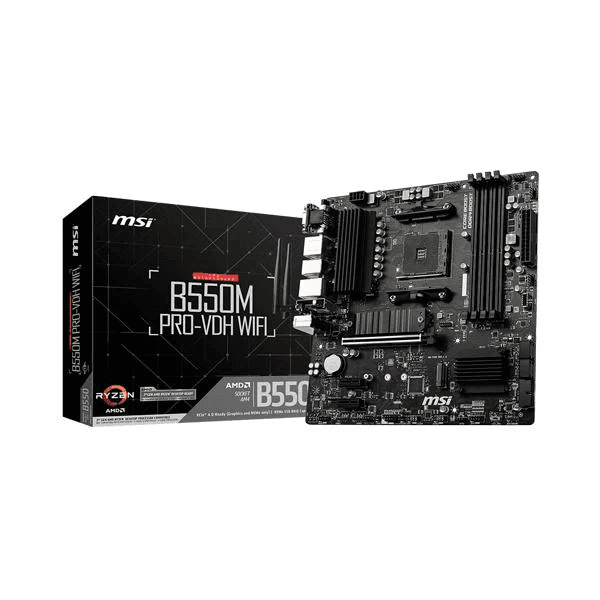

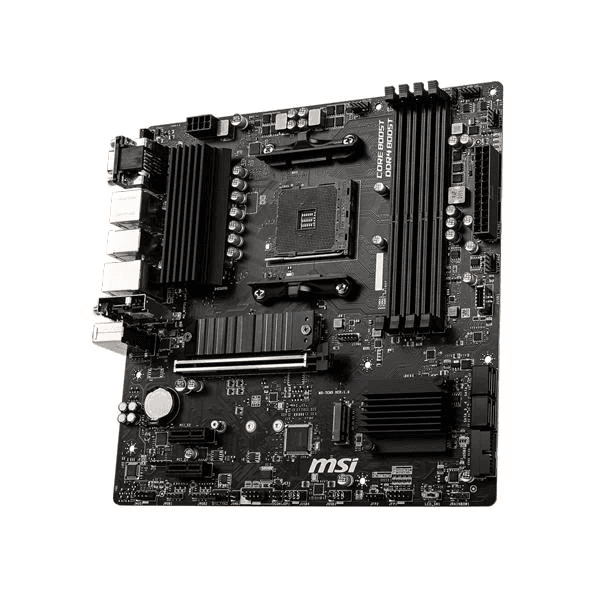

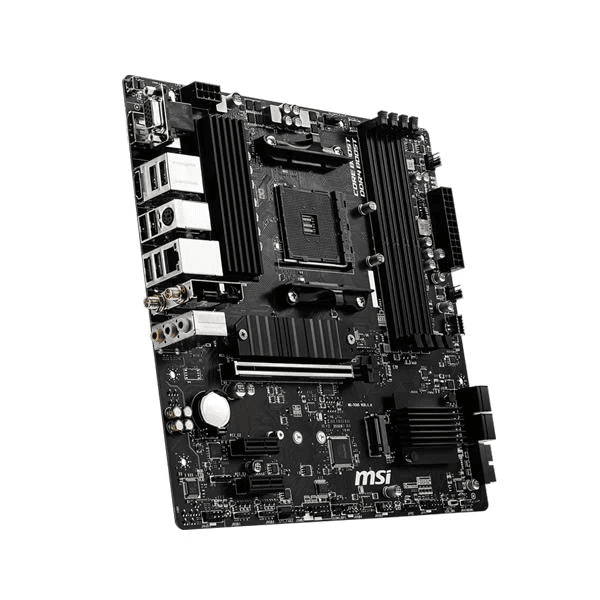

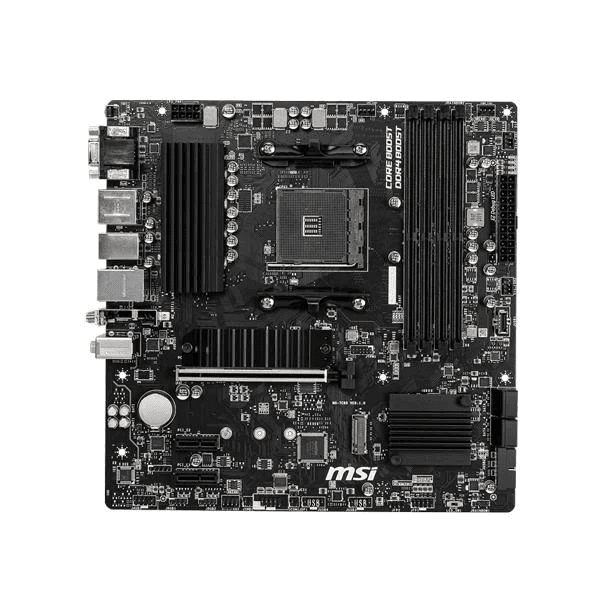

Msi B550m Pro-vdh Wifi Motherboard

Name: Msi B550m Pro-vdh Wifi Motherboard
Brand: MSI
SKU: B550M-Pro-VDH-wifi
Price: 9793.00 INR
Availability: InStock

SKU: B550M-Pro-VDH-wifi

MSI

users viewing this item right now

₹17400

₹9793 Save Extra

Availability

In Stock

B550M PRO-VDH WIFI Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
B550M PRO-VDH WIFI Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system

Msi B550M PRO-VDH WIFI Motherboard provide not only optimized professional workflows but also less troubleshooting and longevity.

Important Notice :

BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

MSI B550M PRO-VDH WIFI Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
B550M PRO-VDH WIFI Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Key Features

Model	B550M PRO-VDH WIFI
CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Expansion Slot	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
Onboard Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3 Maximum shared memory of 16 GB
Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® 8111HN Gigabit LAN controller
Wireless LAN & Bluetooth	Wi-Fi AC Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

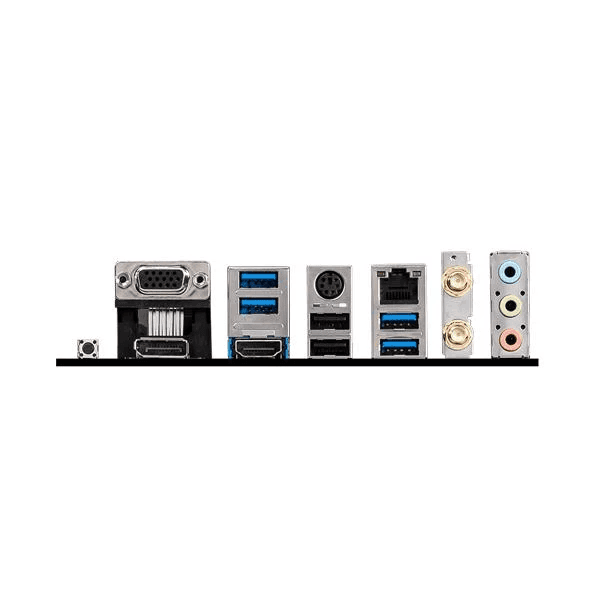

Back panel ports	VGA USB 3.2 Gen 1 5Gbps Type-A Keyboard / Mouse LAN Flash BIOS Button DisplayPort HDMI™ USB 2.0 USB 3.2 Gen 1 5Gbps Type-A Wi-Fi Antenna connectors 3x Audio jacks
Dimensions	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING	8 mounting holes
