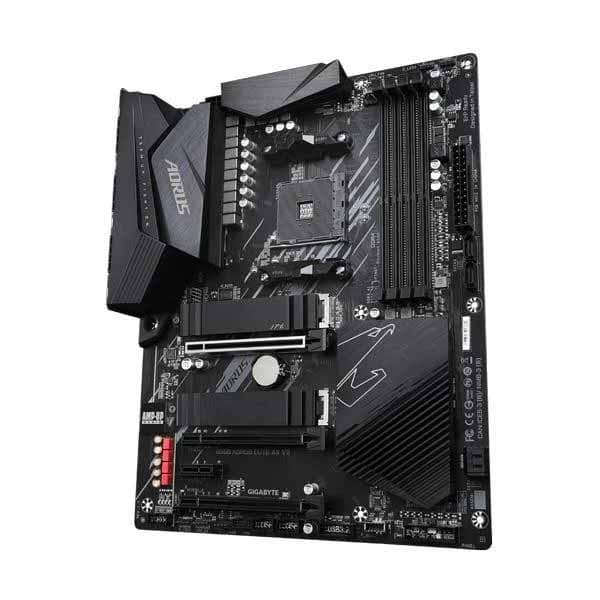

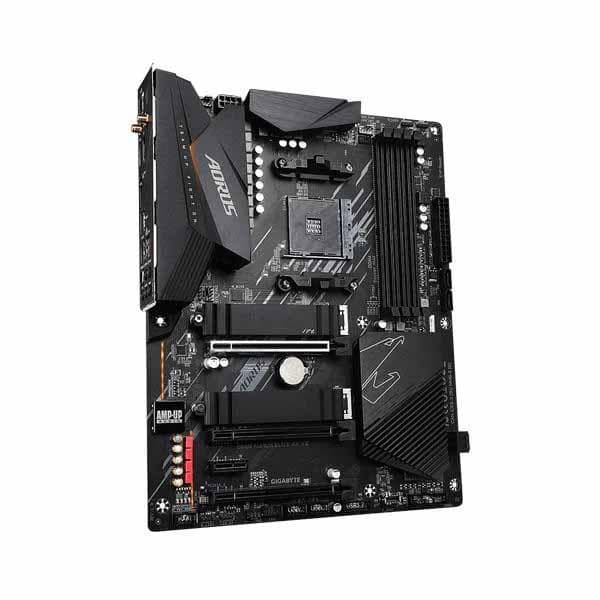

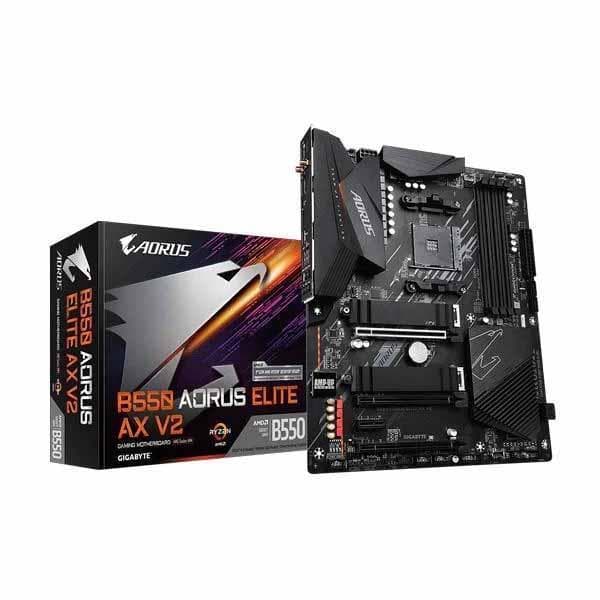

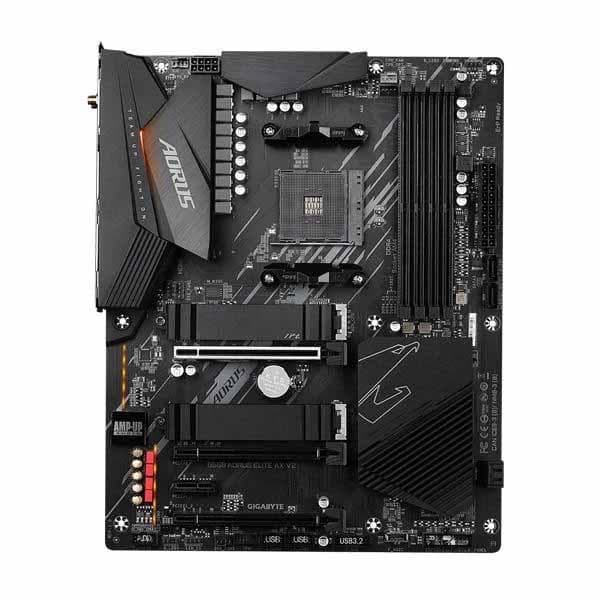

Gigabyte B550 AORUS Elite AX V2 (Wi-Fi) Motherboard

Gigabyte B550 Aorus Elite AX V2 Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, M.2 with Thermal Guard, RGB FUSION 2.0, Q-Flash Plus

Important Notice :

• BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
• The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
• For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

AMD B550 AORUS Elite AX V2 Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus

• Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 12+2 Phases Digital Twin Power Design with 50A DrMOS
• Advanced Thermal Design with Enlarged Surface Heatsinks
• Ultra Durable™ PCIe 4.0 x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
• Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
• AMP-UP Audio with ALC1200 and WIMA Capacitors
• Blazing Fast 2.5GbE LAN with Bandwidth Management

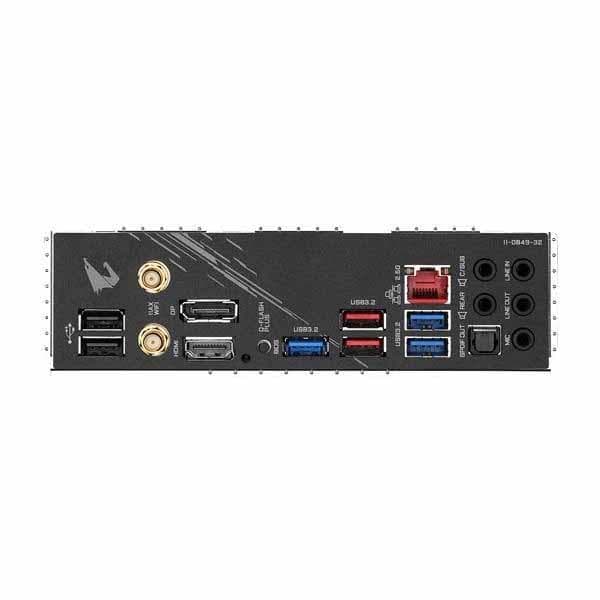

• Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Pre-installed IO Shield for Easy and Quick Installation

GIGABYTE B550 AORUS Elite AX V2 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

Ultimate design

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS Elite AX V2 motherboards for enthusiast. No Compromise and never stop to achieve higher.

12*+2 Phases Digital Twin Power Design

• Digital PWM Controller delivers appropriate voltage to the CPU
• With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total
• All-solid capacitors to improve Transient response and minimize oscillation
• 24pin+8pin Solid Pin CPU Power Connectors

B550 AORUS Elite AX V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 AORUS Elite AX V2 motherboards easier to upgrade.

Memory Layout - Daisy Chain Design

With the optimized daisy-chain routing, the B550 AORUS Elite AX V2 motherboard provides a proven speed of DDR4-4000MHz and beyond with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 AORUS Elite AX V2 motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

DEFINITIVE AESTHETICS

B550 AORUS Elite AX V2 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.

Ultra Durable™ PCIe Armor

Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
