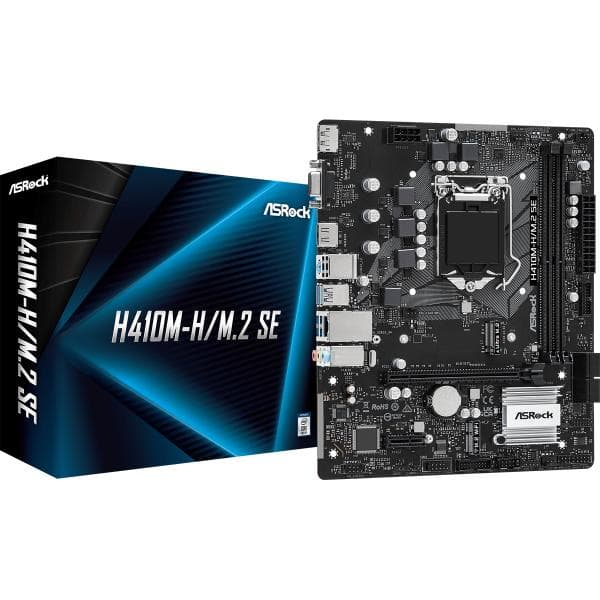

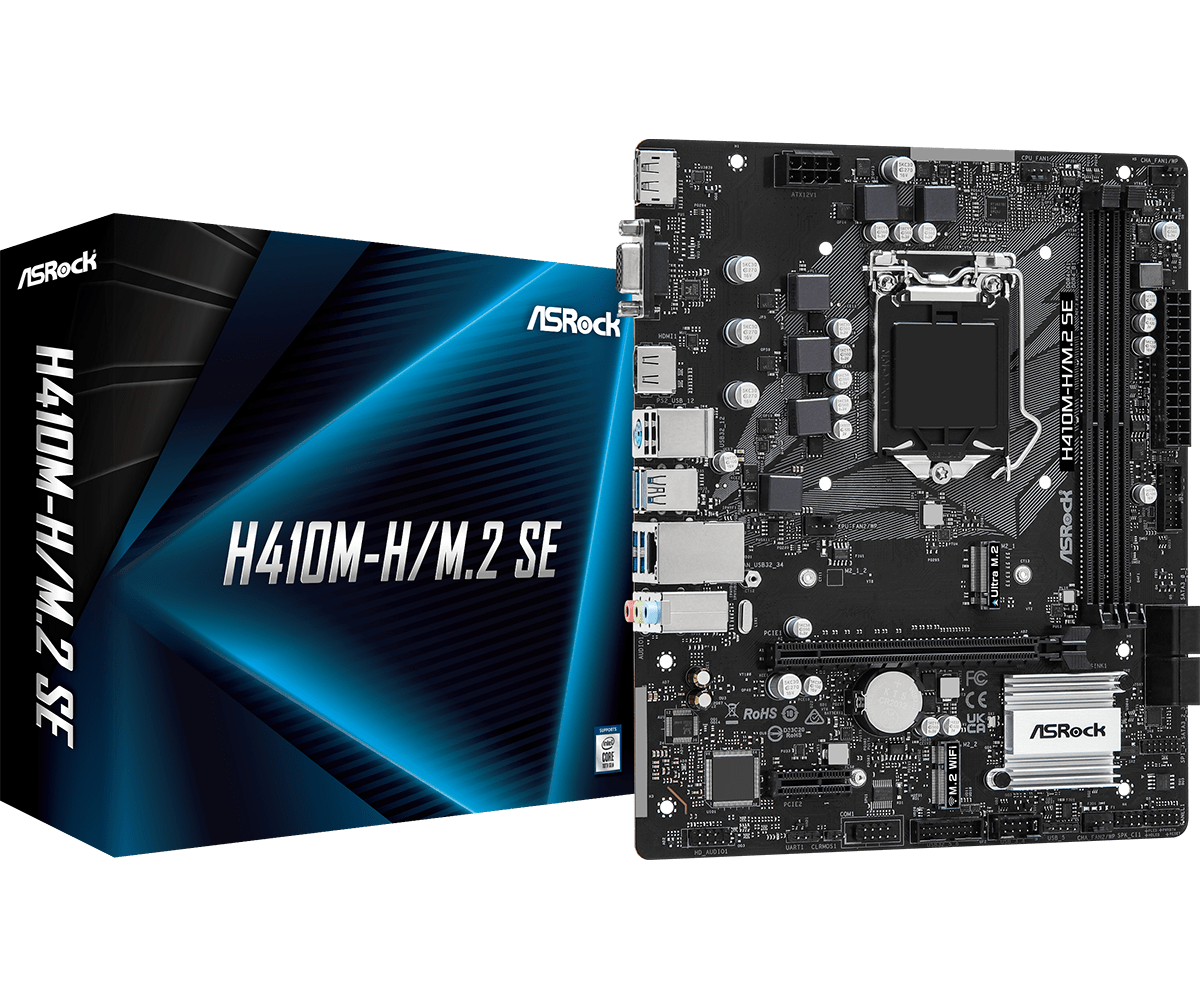

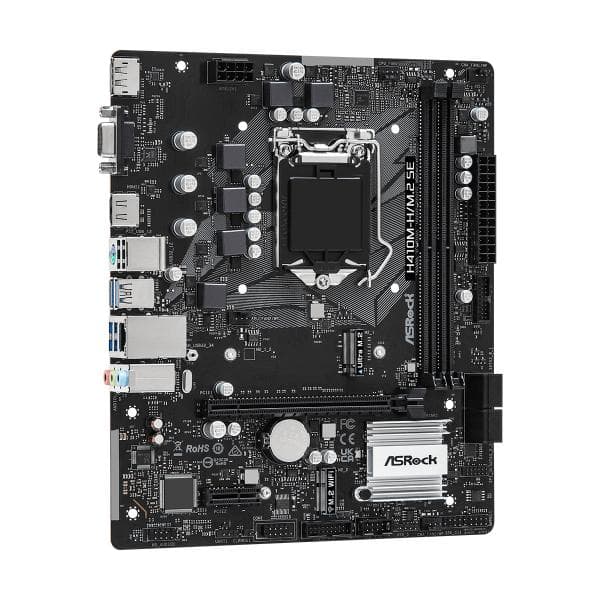

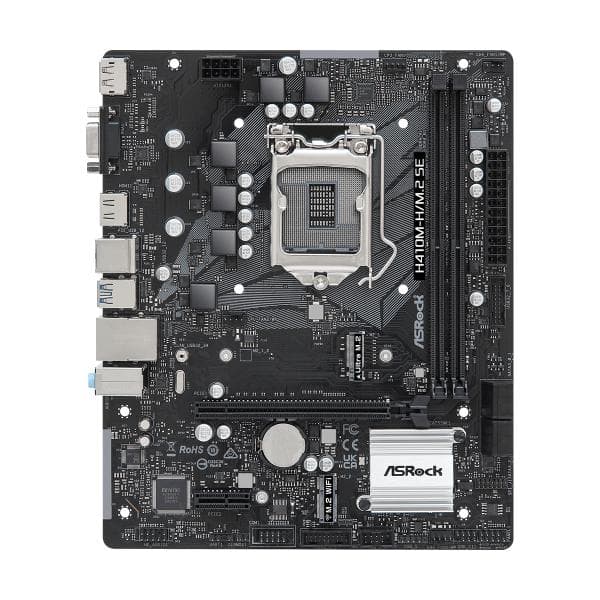

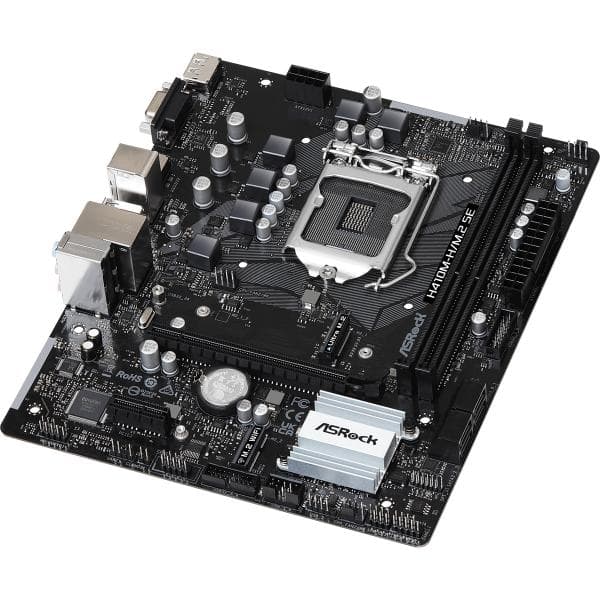

Asrock H410M-H/M.2 SE mATX Intel Motherboard
11 sold in last 1 hour
Hurry! Over 5 people have this in their carts
- Supports 10th Gen Intel Core™ Processors (Socket 1200)
- Supports DDR4 2933MHz
- Intel H370 Chipset
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options : HDMI, D-Sub, DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 M.2 (PCIe Gen3 x4 & SATA3)
- 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- 5 USB 2.0 (3 Front, 2 Rear)
- Gigabit LAN
- TPM Module onboard
- Supports ASRock Auto Driver Installer
Estimated Delivery: Nov 11 – Nov 15
... people are viewing this right now
Original price was: ₹8,999.00.₹4,799.00Current price is: ₹4,799.00.
Asrock H410M-H/M.2 SE Micro ATX Motherboard ( Intel Socket LGA 1200, Supports 10th Gen Intel Core CPU, 2 x DDR4 RAM Slots, Max 64GB RAM Support )
.png)
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Supports DDR4 2933MHz
- Intel® H370 Chipset
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options : HDMI, D-Sub, DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 M.2 (PCIe Gen3 x4 & SATA3)
- 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- 5 USB 2.0 (3 Front, 2 Rear)
- Gigabit LAN
- TPM Module onboard
- Supports ASRock Auto Driver Installer
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
| Feature | Specification |
|---|---|
| Model/Brand | ASRock H370M-HDV/M.2 |
| CPU | Supports 10th Gen Intel® Core™ Processors (Socket 1200) |
| Chipset | Intel® H370 |
| Memory | Dual Channel DDR4, 2x DDR4 DIMM Slots, DDR4 2933/2800/2666/2400/2133, Max. 64GB |
| Storage | 4x SATA3 6.0 Gb/s Connectors, 1x Ultra M.2 Socket (M2_1) |
| Graphics | Intel® UHD Graphics Built-in Visuals, DirectX 12, 3x Outputs (D-Sub, DP 1.2, HDMI) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Codec), Supports Surge Protection |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) |
| Slots | 1x PCI Express 3.0 x16, 1x PCI Express 3.0 x1, 1x M.2 Socket (Key E) for WiFi/BT |
| Unique Features | ASRock Super Alloy (Premium Choke, Sapphire PCB, High Density Glass Fabric PCB), ASRock Auto Driver Installer, ASRock Ultra M.2, ASRock Full Spike Protection, ASRock Live Update & APP Shop |
| UEFI Features | 128Mb AMI UEFI Legal BIOS, ACPI 6.0 Compliant, SMBIOS 2.7 Support, Voltage Multi-adjustment |
| Software | ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN |

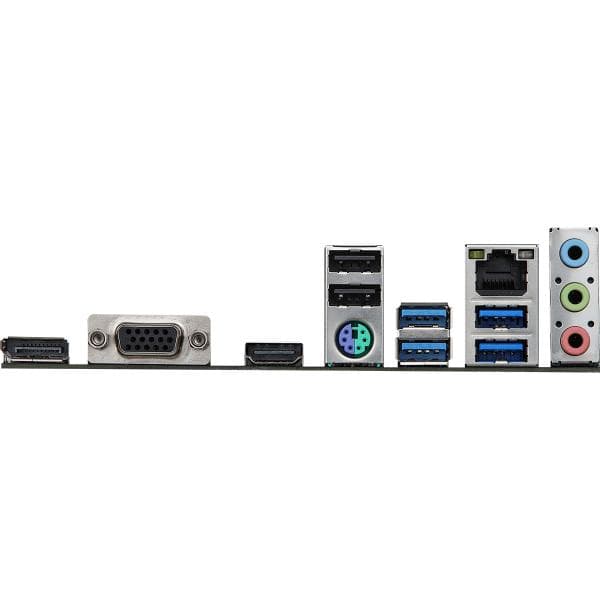

| Rear Panel I/O | 2x Antenna Points, PS/2, D-Sub, DP 1.2, HDMI, 2x USB 2.0, 4x USB 3.2 Gen1, RJ45 LAN, HD Audio Jacks |
| Form Factor | Micro ATX (8.9" x 7.4") |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
