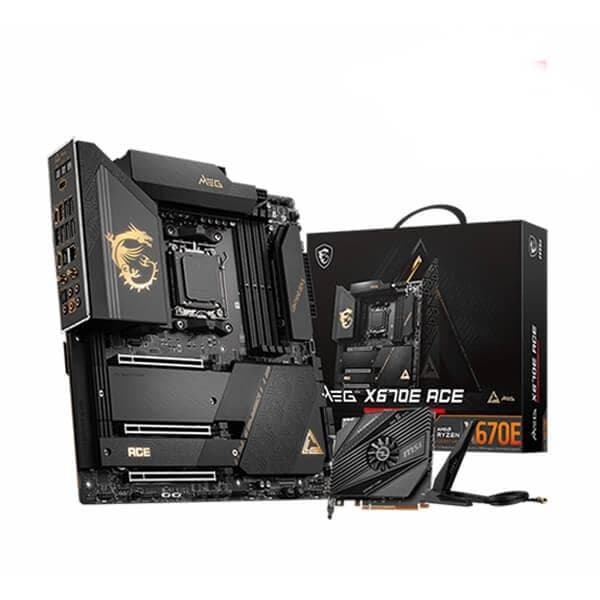

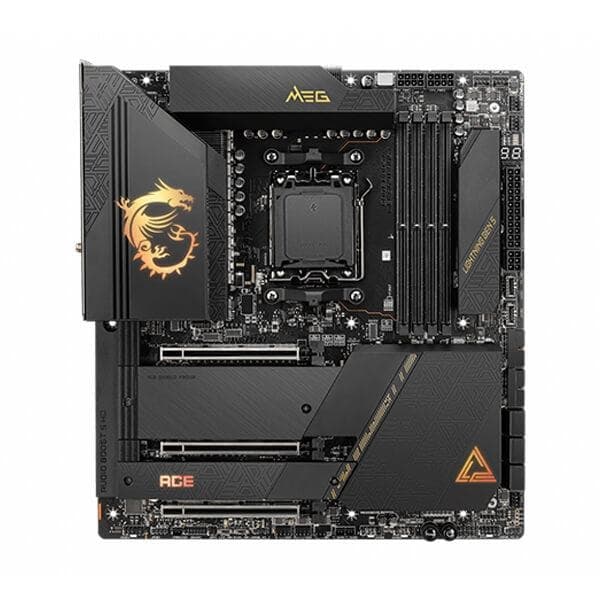

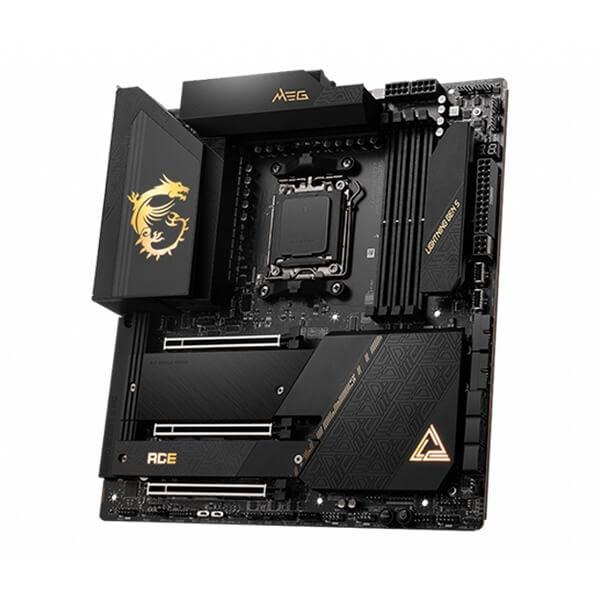

MSI MEG X670E ACE (Wi-Fi) Motherboard
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6666+MHz (OC)
- Extreme Power Design: 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance.
- The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
₹74,599.00
MSI MEG X670E ACE (Wi-Fi) Motherboard
Features:
- MEG X670E ACE Supports AMD Ryzen™ 7000 Series Desktop Processors
- MEG X670E ACE Supports DDR5 Memory, Dual Channel DDR5 6666+MHz (OC)
- Extreme Power Design: 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Outstanding Cooling Solution: Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
- 10G Super LAN with latest Wi-Fi 6E solution: Onboard 10Gbps LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2×2 20G with 60W USB Power Delivery. DIY Friendly Design: Patent Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
The MSI MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD X670 chipset by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking memory, processor, and graphic card at the highest level.
Meg THE REVELATION OF LEGEND
The MEG series is revealed as a legend that represents the ultimate elegance in gaming.
With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.
DUAL PUMP FAN HEADER FOR OPTIMIZED WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market, MEG X670E ACE features the exclusive dual pump PIN headers to fit multiple water cooling solutions demands. The dedicated pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy, safe installation and a perfect fit.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG X670E ACE is ready to deliver the world class memory performance.
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MEG X670E ACE
Lustrous Aesthetics, Pure Performance
The MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellish. Developed to unlock the full gaming potential of the AMD Ryzen 7000 series processors by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking the processor, memory, and graphics card at the highest level.
- Supports AMD Ryzen 7000 Series Processors (Zen 4, AM5)
- 22 Duet Rail Power System with 90A Power Stage
- Lightning Gen5 & Gen4 M.2 slots with double-sided M.2 Shield Frozr
- 3 x PCI-e 5.0 x16 slots (AMD Multi-GPU supported)
- 4 x DDR5 DIMMS with Memory Boost: Dual Channel (128GB Max. / 6666MHz OC)
- Front USB 3.2 Gen 2×2 Type-C 20Gbps with 60W PD
- 10G Super LAN, Wi-Fi 6E & Bluetooth 5.2
|
|
|
|
|
|---|---|---|---|
Supports AMD Ryzen 7000 Series ProcessorsThe MEG X670E ACE motherboard supports AMD Ryzen 7000 series processors. Form Factor: E-ATX Socket Type: AM5 Chipset: AMD X670 X670E motherboards are high-performance variants of the X670 chipset, designed to support extreme overclocking. |
22+2 Phase VRM with 90A Power StageWith its dual 8-pin power connectors and exclusive Core Boost technology, the MEG X670E ACE is able to release maximum CPU power loads (up to 170W) to support system-demanding game settings:
|
Integrated Cooling FeaturesVRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. 3. 1-Phase MISC Power |
3 x Fortified PCI-e 5.0 x16 SlotsMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 3 x PCI-e 5.0/4.0/3.0 x16 slots* (with Steel Armor** and AMD Multi-GPU supported) *Supports x16/x0/x4, x8/x8/x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity. |
|
|
|
|
|
|---|---|---|---|
4 x DDR5 Dual Channel (6666 MHz OC)Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 6666 MHz, supports AMD EXPO. |
Gen5 M.2 ConnectorsThe MEG X670E ACE motherboard features MSI’s latest M.2 slots: 1 x Gen5 x4 128Gb/s slot 3 x Gen4 x4 64Gb/s slots M.2 XPANDER-Z GEN5 DUAL PCI-Express card provides extra 2 x Gen5 x4 M.2 slots. |
DIY Friendly DesignMSI X670 motherboards feature patented tool-free M.2 Shield Frozr covers as well as EZ M.2 clips for DIY friendly M.2 SSD installation & upgrades. Magnetic Design: This patented design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance. Tool-Free M.2 Shield Frozr*: MSI patented Shield Frozr covers feature a tool-free design so users don’t have to worry about lost screws or overtightening. EZ M.2 Clips: Install or replace M.2 SSD quickly and effortlessly without ever having to hunt for a screwdriver. |
10G Super LAN & Wi-Fi 6E10G Super LAN: A premium 10Gbps Super LAN controller delivers an utmost network gaming experience. Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 HD & S/PDIF output. |
| CHIPSET | AMD X670 |
| CPU SUPPORT |
|
| MEMORY | 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6666,6600, 6400, 6200, 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800(JEDEC) MHz
|
| ONBOARD GRAPHICS | 1x Type-C DisplayPort |
| EXPANSION SLOT |
|
| MULTI-GPU | Supports AMD MULTI-GPU |
| STORAGE |
|
| RAID |
|
| USB |
|
| LAN | Marvell® AQC113-B1-C 10Gbps LAN |
| WIRELESS / BLUETOOTH |
|
| AUDIO |
|
| INTERNAL I/O |
|
| LED FEATURE |
|

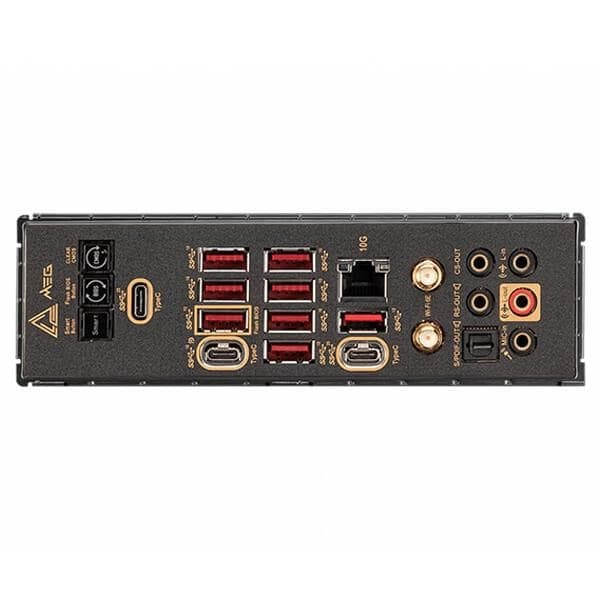

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB DIMENSION | E-ATX 277mmx304.8mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
