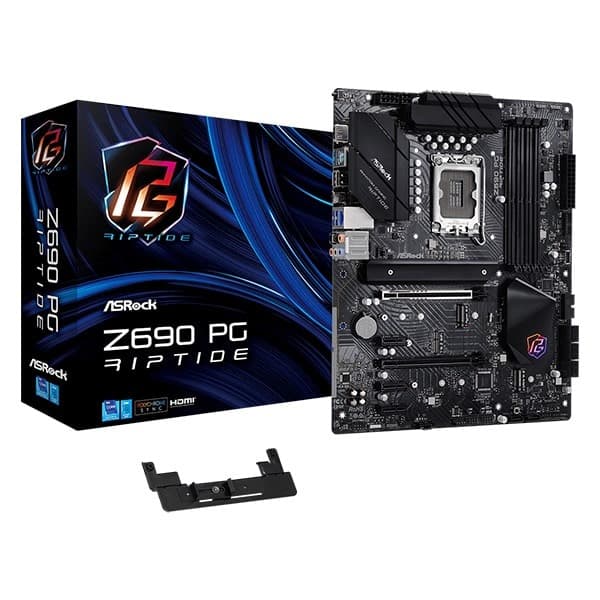

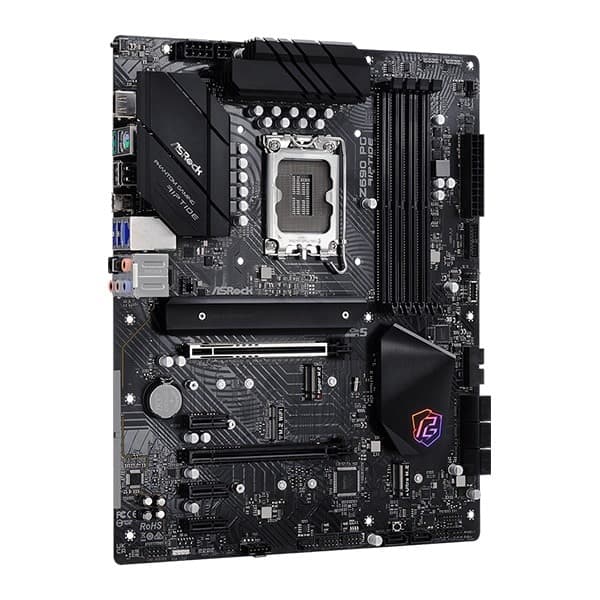

ASRock Z690 PG Riptide Motherboard
Brand:
Asrock
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 13 Phase Dr.MOS Power Design
- Supports DDR4 4800MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
1 M.2 Key-E for WiFi
... people are viewing this right now
₹21,749.00
Out of stock
Email when stock available
ASRock Z690 PG Riptide Motherboard
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 13 Phase Dr.MOS Power Design
- Supports DDR4 4800MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
1 M.2 Key-E for WiFi - Graphics Output Options: HDMI
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 8 SATA3
- 2 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 1 USB 3.2 Gen2x2 Rear Type-C
2 USB 3.2 Gen2 (Rear)
1 USB 3.2 Gen1 Front Type-C
6 USB 3.2 Gen1 (2 Rear, 4 Front) - Killer E3100 2.5G LAN
- Lightning Gaming Ports
- ASRock Graphics Card Holder
Overview:
ASRock Z690 PG Riptide with Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
PCIe 5.0 + Surface-Mount Tech
ASRock Z690 PG Riptide Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
KiLLER Networking
ASRock Z690 PG Riptide The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
Nahimic Audio
ASRock Z690 PG Riptide Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

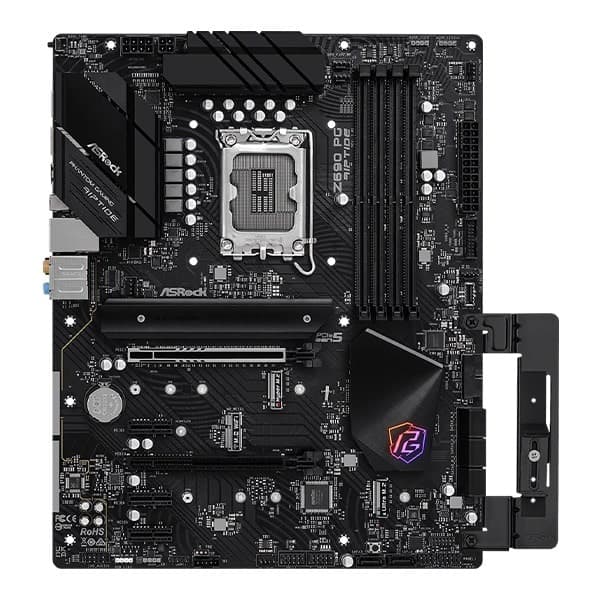

ASRock Graphics Card Holder
ASRock Z690 PG Riptide Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
| Model | |
| Brand | ASRock |
| Model | Z690 PG Riptide |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| * Dedicated LGA1700 mounting bracket is required. | |
| CPU Type | Supports 12th Gen Intel Core Processors |
| Supports Intel Pentium / Celeron Processors | |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipsets | |
| Chipset | Intel Z690 |
| Onboard Video | |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 4800+(OC)* |
| * Supports DDR4 3200 natively. | |
| * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 5.0 x16 | 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))* |
| * Supports NVMe SSD as boot disks. | |
| PCI Express x1 | 3 x PCIe Gen3 x1 |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
| Storage Devices | |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
| * If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled. | |
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* | |
| * Supports Intel Optane Technology (M2_2 and M2_3 only). | |
| * Supports Intel Volume Management Device (VMD). | |
| * Supports NVMe SSD as boot disks. | |
| * Supports ASRock U.2 Kit. | |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Killer E3100 |
| Max LAN Speed | 10/100/1000/2500Mbps |

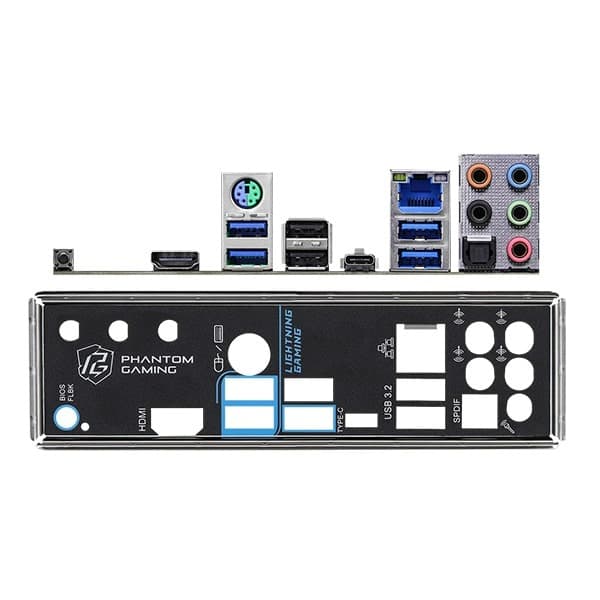

| Rear Panel Ports | |
| Back I/O Ports | 3 x Antenna Mounting Points |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x Optical SPDIF Out Port | |
| 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) | |
| * USB3_1 is from Intel Z690; USB3_2 is from ASMedia ASM3042. | |
| * USB3_1_2 are the Lightning Gaming Ports. | |
| 2 x USB 2.0 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| 1 x BIOS Flashback Button | |
| HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) | |
| 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) | |
| Other Connectors | 1 x SPI TPM Header |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header | |
| * Supports in total up to 12V/3A, 36W LED Strip. | |
| 3 x Addressable LED Headers | |
| * Support in total up to 5V/3A, 15W LED Strip. | |
| 1 x CPU Fan Connector (4-pin) | |
| * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| * CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| 1 x Front Panel Audio Connector | |
| 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
| 1 x Clear CMOS Button | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24 pin ATX Power Connector |
| 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
| Windows Compatibility | |
| Windows 11 | Ready |
| Features | |
| Features | Unique Feature: |
| ASRock USB 3.2 Gen2 | |
| ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s) | |
| ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| ASRock Super Alloy | |
| XXL Aluminum Alloy Heatsink | |
| Premium 60A Power Choke | |
| 55A Dr.MOS | |
| Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke) | |
| Matte Black PCB | |
| High Density Glass Fabric PCB | |
| 2oz Copper PCB | |
| Killer 2.5G LAN | |
| ASRock Auto Driver Installer | |
| ASRock Steel Slot | |
| ASRock Full Coverage M.2 Heatsink | |
| ASRock Hyper M.2 (PCIe Gen4x4) | |
| ASRock POST Status Checker (PSC) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| BIOS Feature: | |
| 256Mb AMI UEFI Legal BIOS with multilingual GUI support | |
| ACPI 6.0 Compliant wake up events | |
| SMBIOS 2.7 Support | |
| CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, | |
| +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment | |
| Support CD: | |
| Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar | |
| Software and UEFI: | |
| Software | |
| ASRock Motherboard Utility | |
| (Phantom Gaming Tuning) | |
| Killer Control Center | |
| ASRock Polychrome SYNC | |
| * These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| UEFI | |
| ASRock EZ Mode | |
| ASRock Full HD UEFI | |
| ASRock My Favorites in UEFI | |
| ASRock Auto Driver Installer | |
| ASRock Instant Flash | |
| ASRock Internet Flash | |
| ASRock Easy RAID Installer | |
| Hardware Monitor: | |
| Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump | |
| Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V | |
| OS: | |
| Microsoft Windows 11 / 10 64-bit | |
| Certifications: | |
| FCC, CE | |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Packaging | |
| Package Contents | Accessories: |
| Quick Installation Guide, Support CD, I/O Shield | |
| 2 x SATA Data Cables | |
| 1 x Graphics Card Holder | |
| 4 x Screws for M.2 Sockets | |
| 1 x Standoff for M.2 Socket |
