Motherboard MSI AMD Motherboard MSI Motherboard

Msi Pro B550m-p Gen3 Motherboard

Name: Msi Pro B550m-p Gen3 Motherboard
Brand: MSI
SKU: PRO-B550M-P-GEN3
Price: 7904.00 INR
Availability: InStock

SKU: PRO-B550M-P-GEN3

MSI

users viewing this item right now

₹12750

₹7904 Save Extra

Availability

In Stock

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Supports DDR4 Memory, up to 4400(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Powerful Design: Core Boost, Digital PWM IC, DDR4 Boost

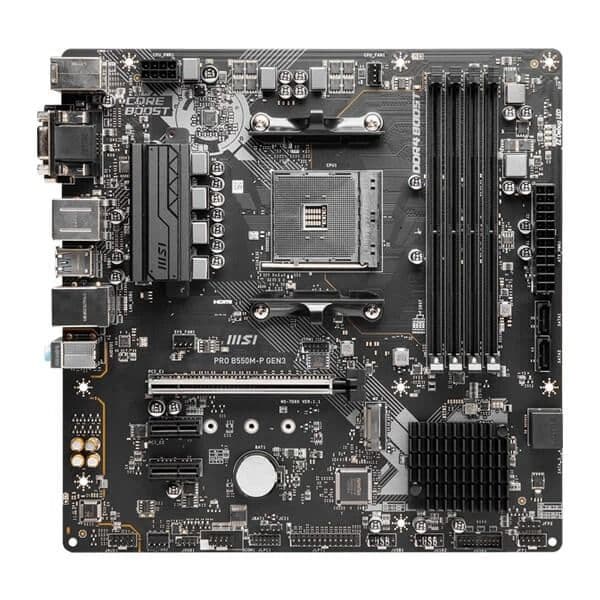

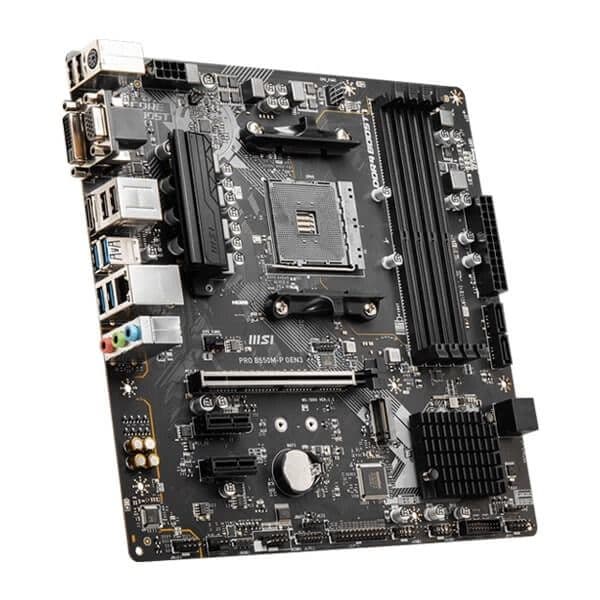

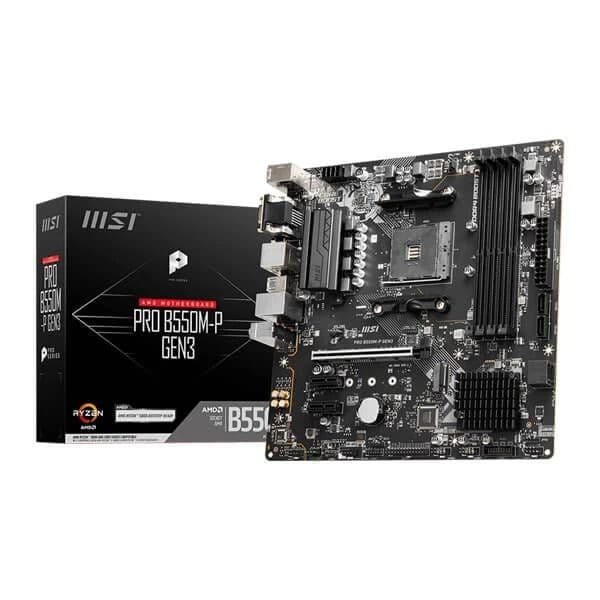

MSI PRO B550M-P GEN3 Motherboard

Feature

MSI PRO B550M-P helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FAST AND FUTURE-READY STORAGE

MSI PRO B550M-P GEN3 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI PRO B550M-P GEN3 conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Supports DDR4 Memory, up to 4400(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Powerful Design: Core Boost, Digital PWM IC, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
MSI Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Key Features

CPU	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD® B550 Chipset
Memory	4x DDR4 memory slots, supporting up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slot	1x PCIe 3.0 x16 slot (From CPU) 2x PCIe 3.0 x1 slots (From AMD B550 chipset)
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz 1x HDMI 1.4 port, supporting a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz Maximum shared memory of 16 GB
SATA Ports	4x SATA 6Gb/s ports (From AMD B550 Chipset)
M.2 SSD Slots	1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® RTL8111H 1Gbps LAN controller
Power Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
Internal USB Connectors	1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From AMD B550 Chipset) Supports additional 4 USB 2.0 ports
Fan Connectors	1x 4-pin CPU fan connector 2x 4-pin system fan connectors
System Connectors	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x TPM module connector
Jumpers	1x Clear CMOS jumper
LED Features	1x 4-pin RGB LED connector 4x EZ Debug LED
Back Panel Connectors	Keyboard / Mouse VGA USB 2.0 USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 DVI-D HDMI USB 3.2 Gen 1 5Gbps Type-A
I/O Controller	NUVOTON NCT6795D-M Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System fan speed detection CPU/ System fan speed control
Form Factor	m-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS Features	1x 256 Mb flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language
Software	MSI Center
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
