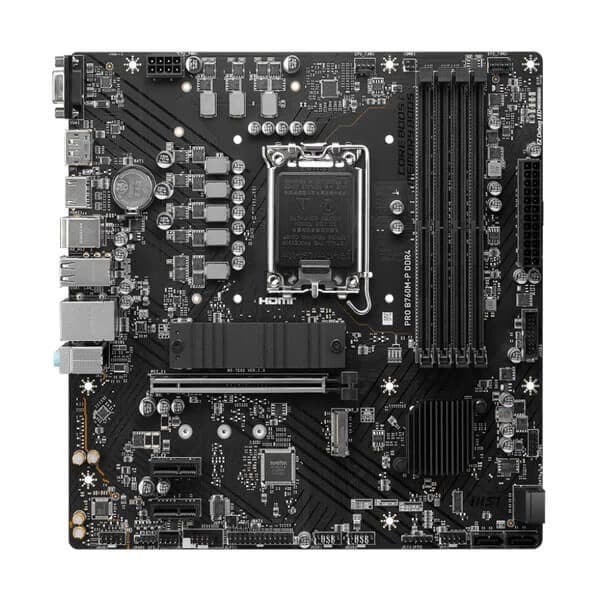

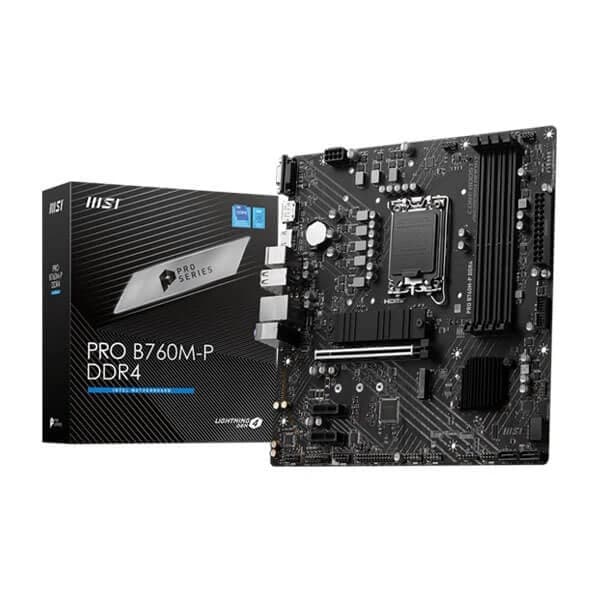

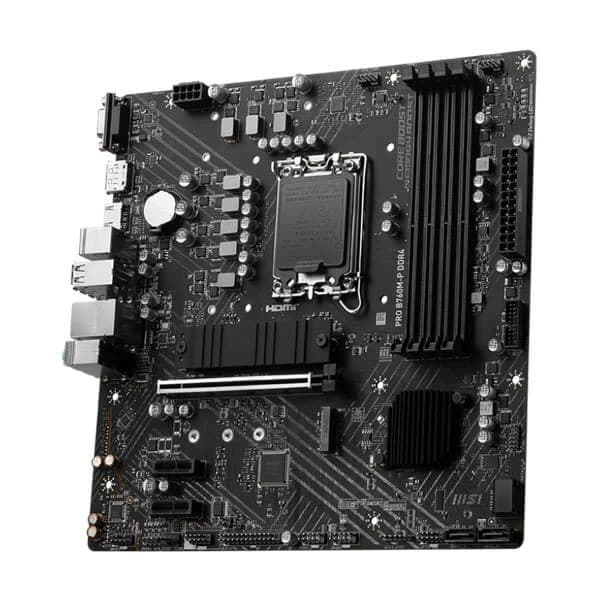

MSI Pro B760M-P DDR4 Intel Motherboard
Brand: MSI
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
... people are viewing this right now
Original price was: ₹22,099.00.₹10,699.00Current price is: ₹10,699.00.
Out of stock
Email when stock available
MSI PRO B760M-P DDR4 Supports 12th and 13th Gen Intel Core processors for LGA 1700 socket, DDR4 Memory, Dual Channel DDR4 4800+MHz (OC), PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Features:
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
COOLING OVERVIEW
-
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
-
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DDR4 MEMORY SOLUTION
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
| Model | PRO B760M-P DDR4 |
| Chipset | INTEL Z790 |
| CPU Support | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | Support HDMI™ 1.4, maximum resolution of 4K 30Hz* Support DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI™ 1x DisplayPort 1x VGA |
| Expansion Slot | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A |
| LED Features | 4x EZ Debug LED |
| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 243.84mmx243.84mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Add a review
Currently, we are not accepting new reviews
Q & A
Ask a question
MSI Pro B760M-P DDR4 Intel Motherboard
Your question
* Question is required
Name
* Name is required
Email
* Email is required
Does it support 14th gen out of the box?
THE MSI PRO B760M-P DDR4 MOTHERBOARD SUPPORTS 14TH GEN INTEL CPUS, BUT OUT-OF-THE-BOX COMPATIBILITY IS NOT GUARANTEED AS SOME UNITS MAY REQUIRE A BIOS UPDATE
