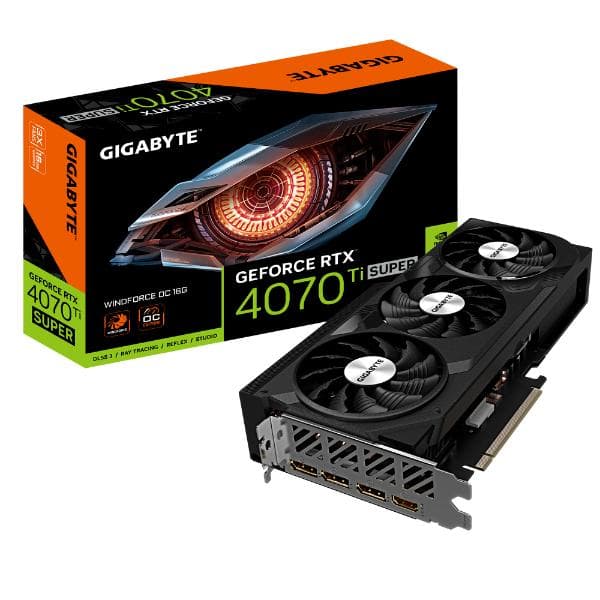

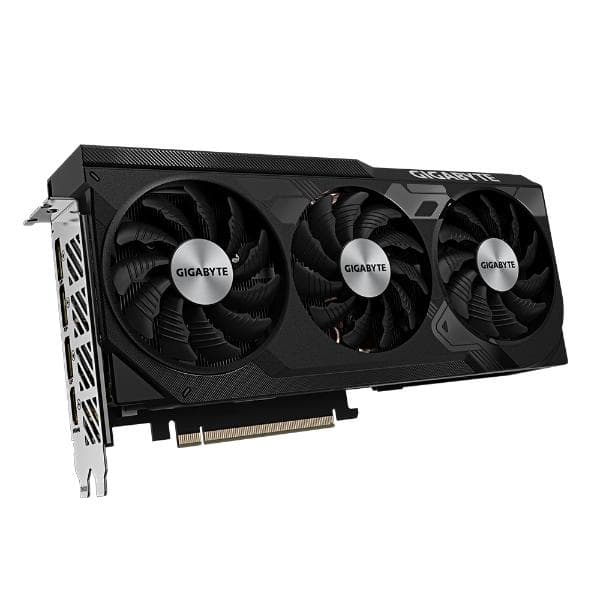

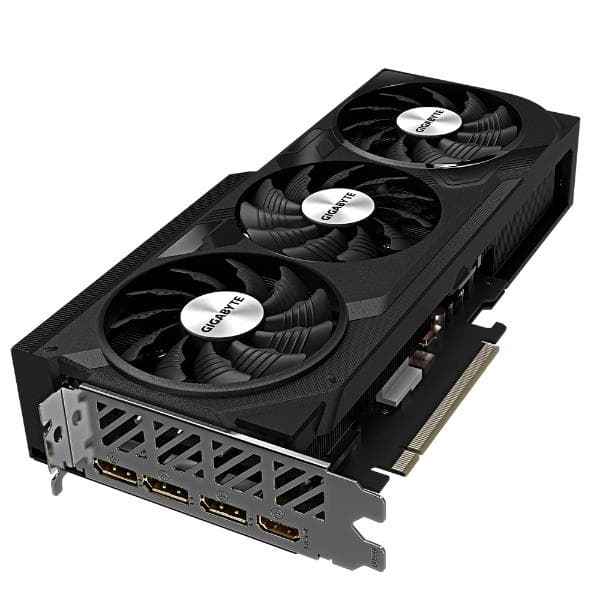

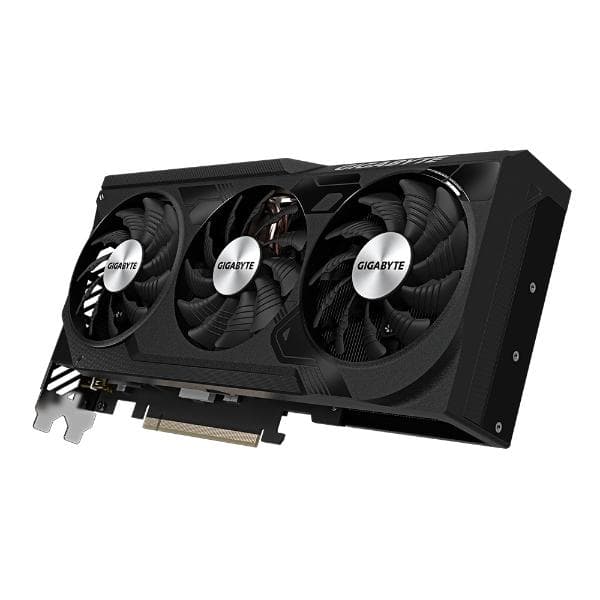

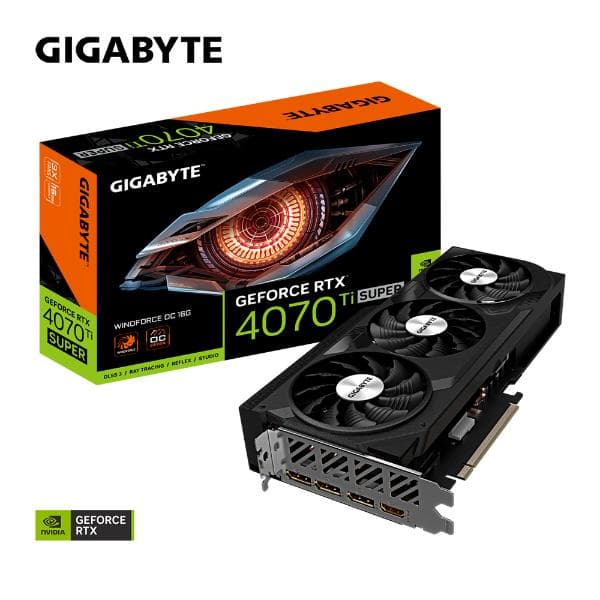

Gigabyte GeForce RTX 4070 Ti SUPER WINDFORCE OC 16G Graphics Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070 Ti SUPER
- Integrated with 16GB GDDR6X 256bit memory interface
- WINDFORCE Cooling System
- Protection metal back plate
Original price was: ₹275,000.00.₹76,899.00Current price is: ₹76,899.00.
Gigabyte GeForce RTX 4070 Ti SUPER WINDFORCE OC 16G Graphics Card GV-N407TSWF3OC-16GD
KEY FEATURE
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070 Ti SUPER
- Integrated with 16GB GDDR6X 256bit memory interface
- WINDFORCE Cooling System
- Protection metal back plate

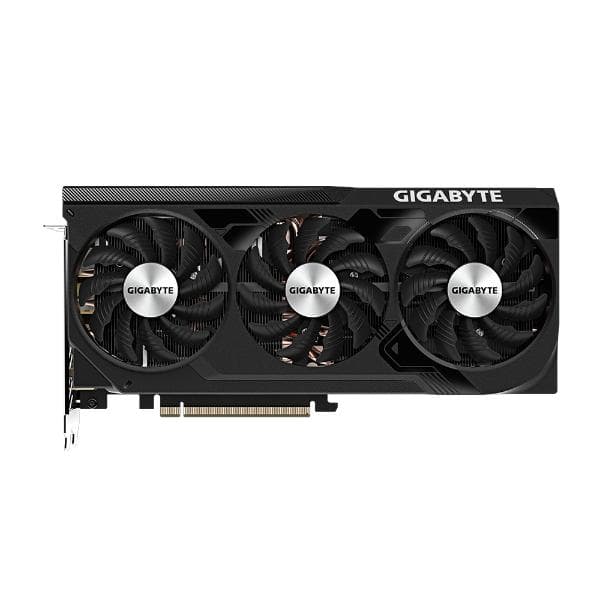

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

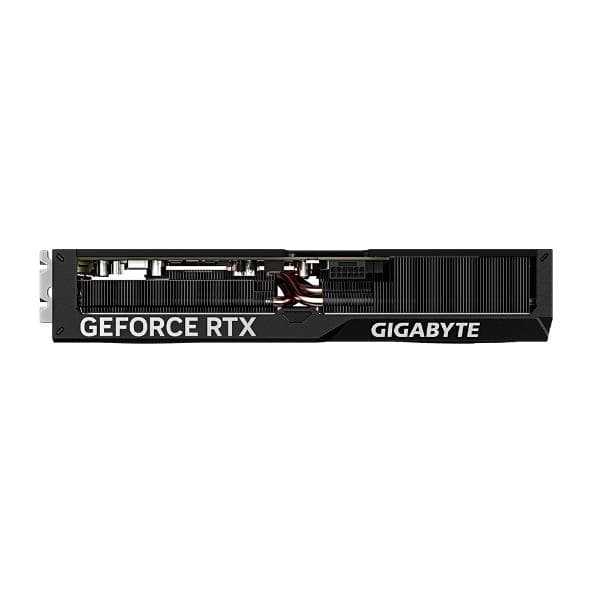

LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
EXCELLENT IN ESSENTIAL

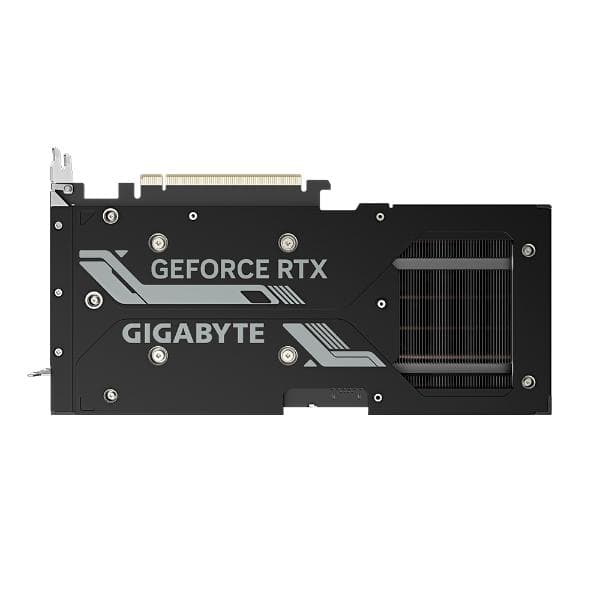

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
BUILD STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| Graphics Processing | GeForce RTX™ 4070 Ti SUPER |
| Core Clock | 2655 MHz (Reference card: 2610 MHz) |
| CUDA® Cores | 8448 |
| Memory Clock | 21 Gbps |
| Memory Size | 16 GB |
| Memory Type | GDDR6X |
| Memory Bus | 256 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=261 W=126 H=50 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 16 pin *1 |

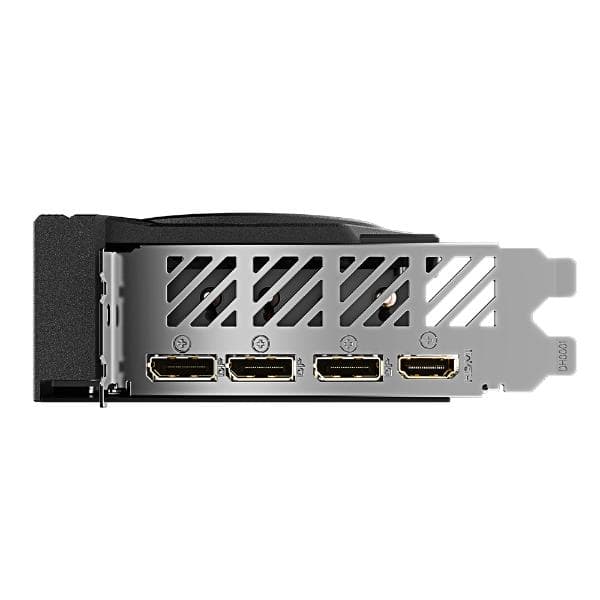

| Output | DisplayPort 1.4a *3 |
| HDMI 2.1a *1 | |
| Accessories | 1. Quick guide |
| 2. One 16-pin to two 8-pin power adaptor |
| Weight | 2 kg |
|---|---|
| Brands | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Memory Series | |
| Product Type | |
| Warranty | |
| Memory Bus | |
| EAN / UPC Code |
