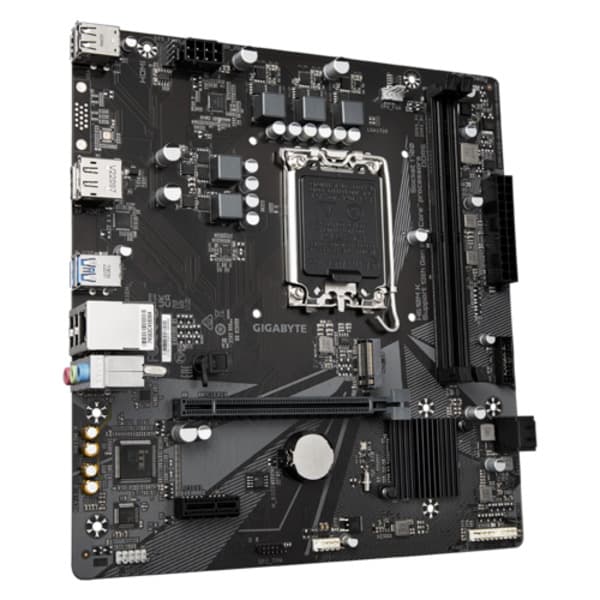

Gigabyte H610M H Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Brand:
Gigabyte
- Supports 13th/12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
... people are viewing this right now
Original price was: ₹14,400.00.₹6,695.00Current price is: ₹6,695.00.
Out of stock
Email when stock available
Feature
- Supports 13th/12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Smart 6 fans
High Current Support – Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control – Up to 7 temperature/fan speed control points for precise fan curve
Dual Curve Mode – Slope/Stair dual mode for different user scenario
Fan Stop – Fan can stop completely below users’ specified temperature point
Hybrid Cores Optimization – With new Intel Hybrid technology, GIGABYTE exclusively creates two new “CPU Upgrade” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
Fan Stop – Fan can stop completely below users’ specified temperature point
Hybrid Cores Optimization – With new Intel Hybrid technology, GIGABYTE exclusively creates two new “CPU Upgrade” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
XTREME MEMORY
GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
Support for DDR5 XMP Up to 5600MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600MHz and beyond. All users need to do to attain this performance boost is to ensure that the
Unlock DDR5 Voltage
- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- Transforms Native DDR5 memory module to Overclocked DDR5 memory
- Increases DDR5 memory overclocking performance and capability
- Supports all PMIC vendors for maximum compatibility
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
DDR5 Memory Upgrade
GIGABYTE BIOS offers pre-defined and retrievable profiles for users to get higher performance easily. The profiles are based on a database that is created by checking each memory IC and PMIC vendors to optimize the modules to unleash their full potential. This is a time saving feature to manually configure overclocked DDR5 memory kits.
- Instantly upgrade memory performance
- Overclock Native and XMP 3.0 DDR5 memory to higher frequency easily
- No need to input dozens of memory parameters such as clock, voltage and timings
- Built-in wide variety pre-tuned profiles database for different memory IC vendors
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
* Photo for reference only.
* Photos are for reference only. Product features may vary by model.
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
CPU
LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
* Please refer to "CPU Support List" for more information.
L3 cache varies with CPU
Chipset
Intel® H610 Express Chipset
Memory
13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
- 2 x SATA 6Gb/s connectors
USB
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper

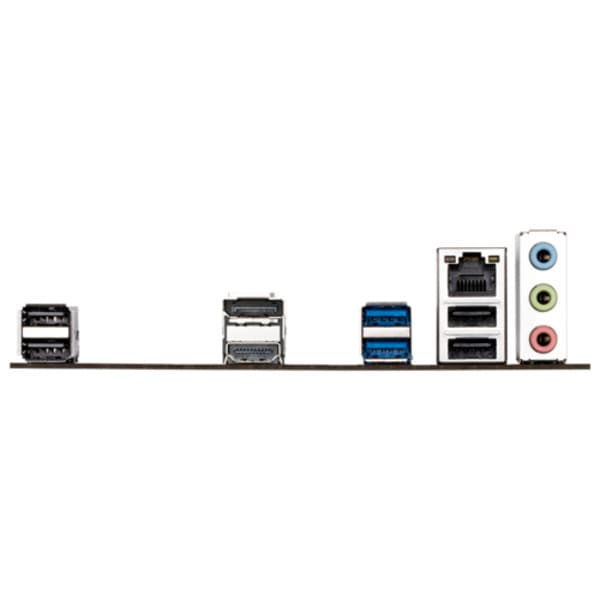

Back Panel Connectors
1 x HDMI port
1 x DisplayPort
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Motherboard Size | |
| Socket | |
| Chipset | |
| Motherboard Series | |
| Warranty | |
| EAN / UPC Code |
