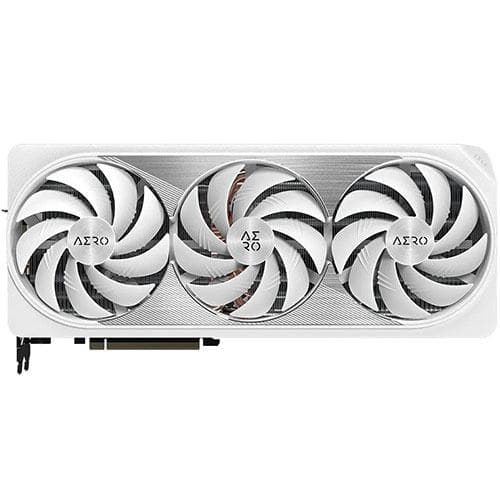

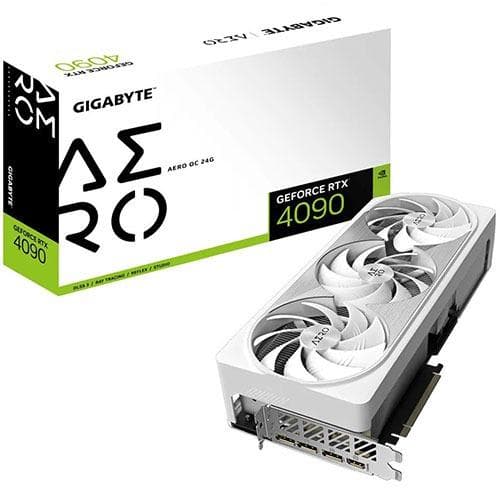

Gigabyte GeForce RTX 4090 AERO OC 24G Graphics Card
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2x AI performance
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Powered by GeForce RTX 4090
- Integrated with 24GB GDDR6X 384-bit memory interface
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
*above images is only for demonstration, prodcut color is white
|Chipset||GeForce RTX™ 4090|
|Core Clock||2535 MHz (Reference Card: 2520 MHz)|
|Memory Clock||21 Gbps|
|Memory Bus||384 bit|
|Card Bus||PCI-E 4.0|
|Dimension||L=340 W=150.2 H=75.2 mm|
|Recommended PSU||1000 W|
|Power Connectors||16 Pin*1|

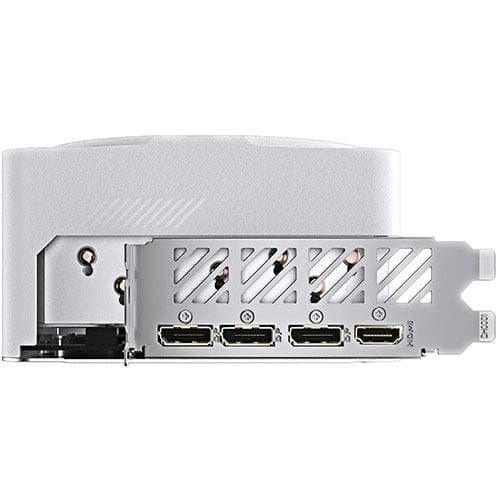

|Output||DisplayPort 1.4 *3 HDMI 2.1 *1|
|Accessories||1. Quick guide 2. Warranty registration 3. Anti-sag bracket 4. Anti-sag bracket installation guide 5. One 16-pin to four 8-pin power adaptor|
|Warranty||3+1 Years Warranty (Online registration required)|
|Note*||Price, feature and specifications are subject to change without notice.|
