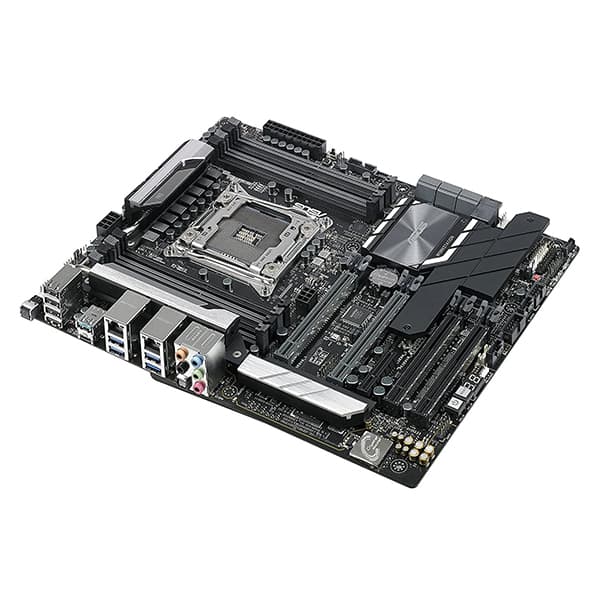

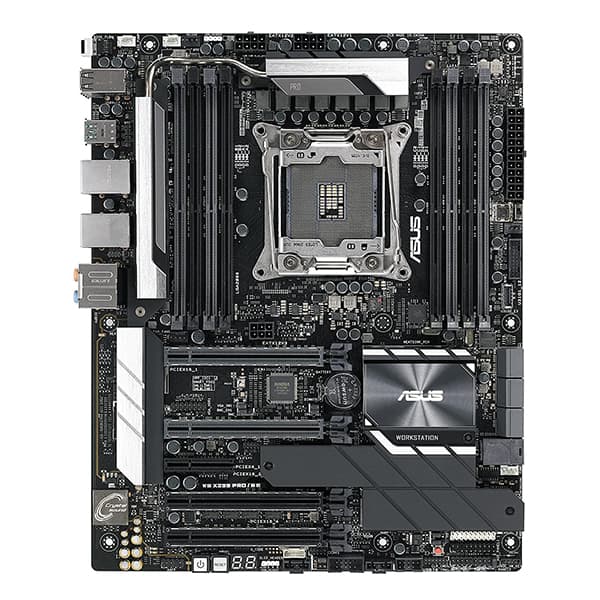

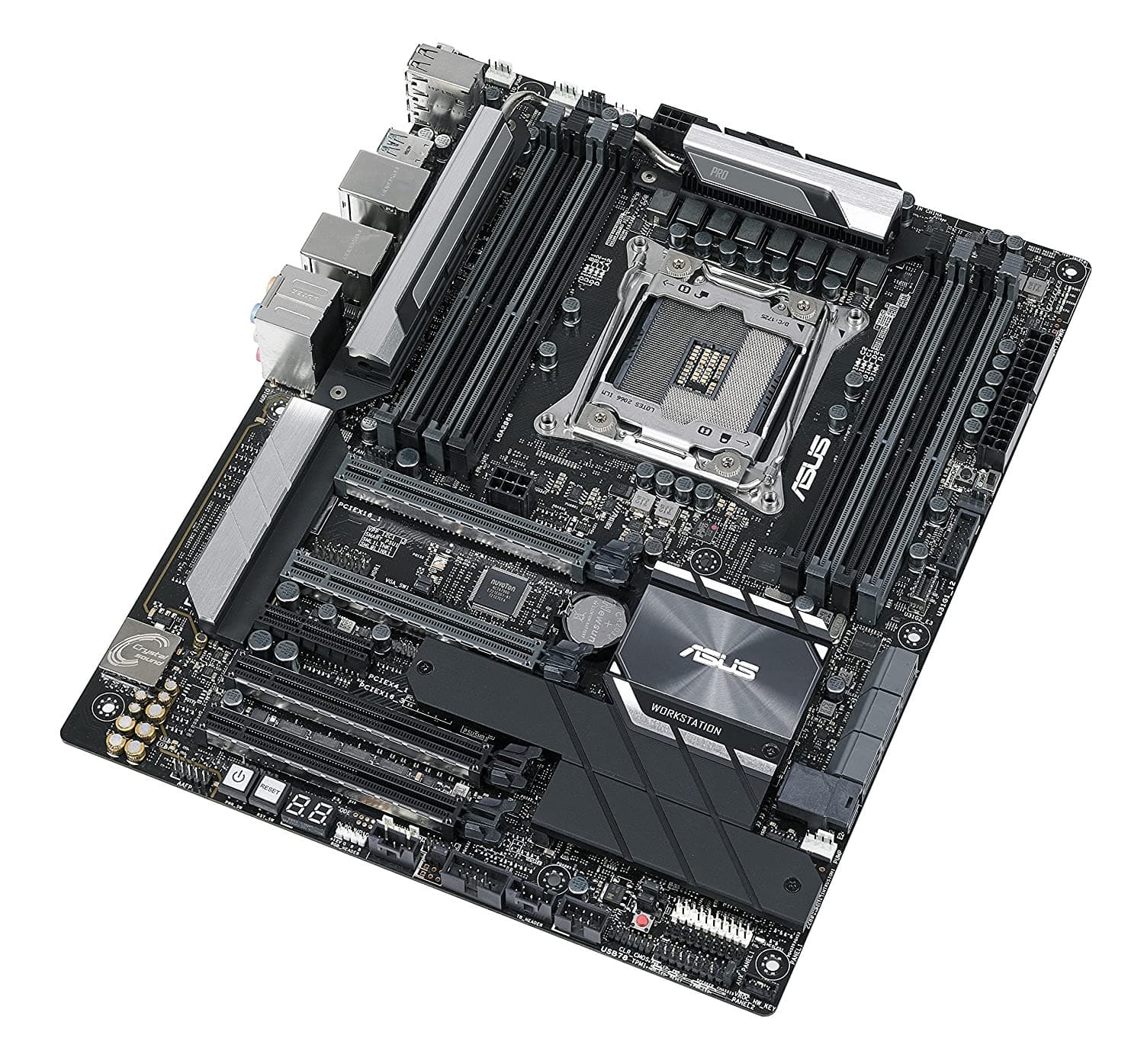

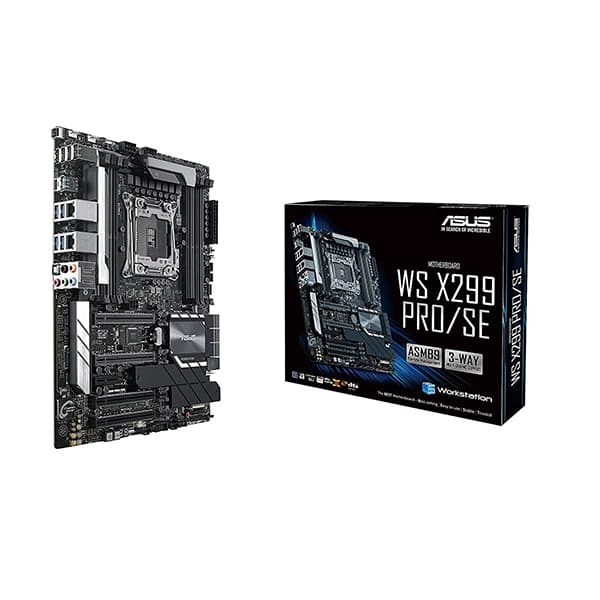

ASUS WS X299 Pro/SE Intel Motherboard
- Designed for 7th generation LGA2066 socket Intel Core X-Series processors with dual M. 2
- Oc design featuring ASUS ProClock and T-Topology technology extends CPU and memory
- Patent-pending Safe Slot features an injection molding process for supporting 3-Way NVIDIASLI or AMD Crossfire
- Industry-leading 8-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring Crystal Sound 3, DTS Headphone: X and driven by Japanese capacitors for warm, immersive sound
Original price was: ₹75,000.00.₹42,499.00Current price is: ₹42,499.00.
ASUS WS X299 Pro/SE Motherboard
Comprehensive IT Infrastructure Management Solution
WS X299 PRO/SE features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:
The embedded ASMB9-iKVM module supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics – even if the operating system is down or offline – through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Flagship Performance
Make your memory go faster
With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133MHz and beyond.
CPU: Intel LGA 2066 i9-7900X |Motherboard: WS X299 PRO/SE | DRAM: Corsair CMK64GX4M8X4200C19*8 |Power: AURUM PT-1200FM
OC Design – ASUS PRO Clock II Technology
WS X299 PRO/SE includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel® Core™ X-series processors.
Multi-GPU support
With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, WS X299 PRO/SE enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond.
Cooler by Design
Ultra-efficient VRM Heatsink
Designed for the powerful Intel Core X-series processor with up to 18 cores, WS X299 PRO/SE features a capable thermal design to ensure maximum performance with no CPU throttling.
Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS X299 PRO/SE is always ready to handle any task, no matter how demanding.
| Product Type | Motherboard - ATX |
| Chipset Type | Intel X299 Express |
| Processor Socket | LGA2066 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core X |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | DTS Connect, High Definition Audio, DTS Headphone:X |
| Network Controller | Intel I210-AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x4 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x U.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

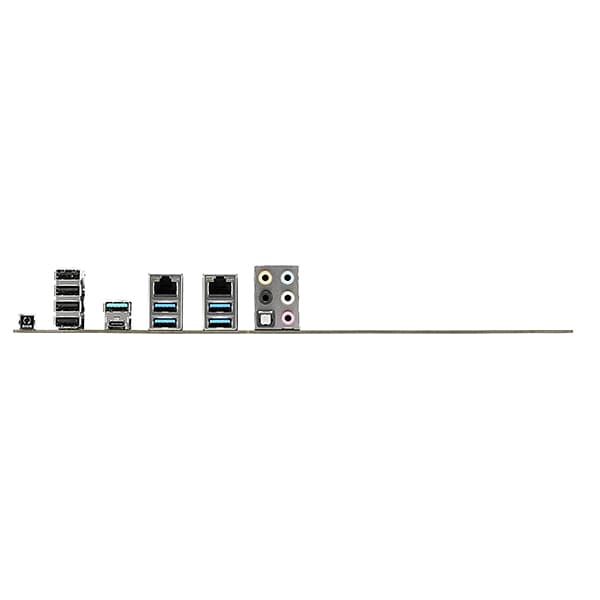

| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x USB 3.1 Gen 2 - header |
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| BIOS Features | ASUS Quiet Thermal Solution, USB BIOS Flashback |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Intel Smart Response Technology, ASUS 8 Phase CPU Power Design, Q-Code, AMD 3-way CrossFireX technology support, ASUS 2 Phase DRAM Power Design, ASUS 5X PROTECTION, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Crystal Sound 3, AURA RGB Lighting Control, Intel Optane Memory Ready, Intel VROC support, ASUS PRO Clock II Technology, M.2 heatsink, ASMB9-iKVM |
| Software Included | ASUS AI Charger+, ASUS Control Center |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Motherboard Size | |
| Chipset | |
| Socket | |
| Memory Series | |
| Platform | |
| EAN / UPC Code |
