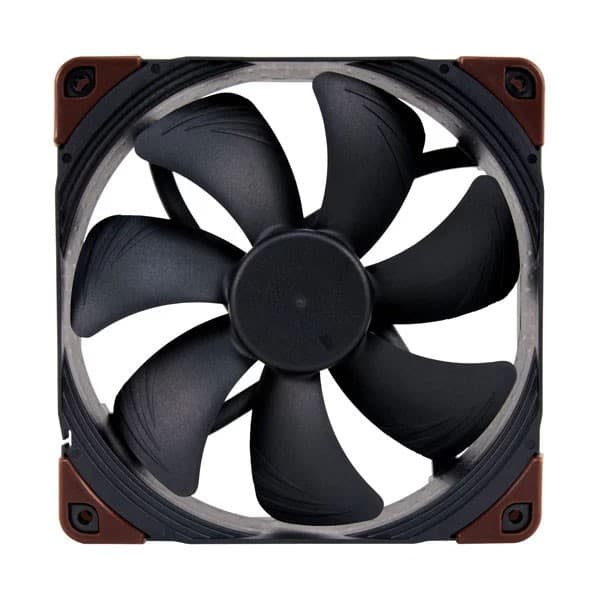

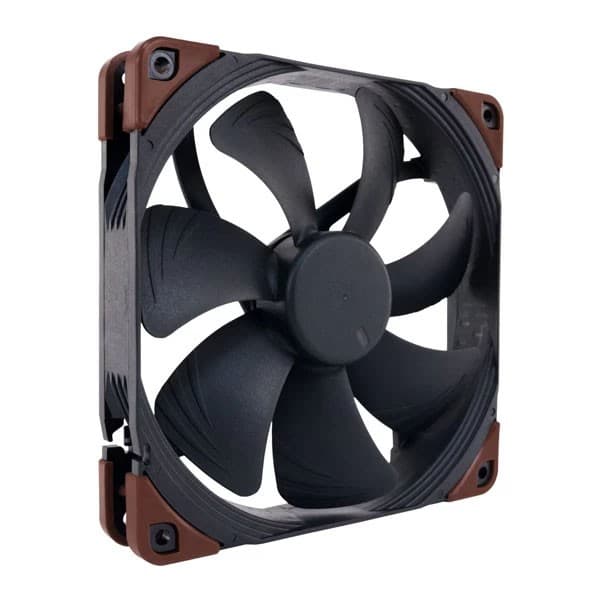

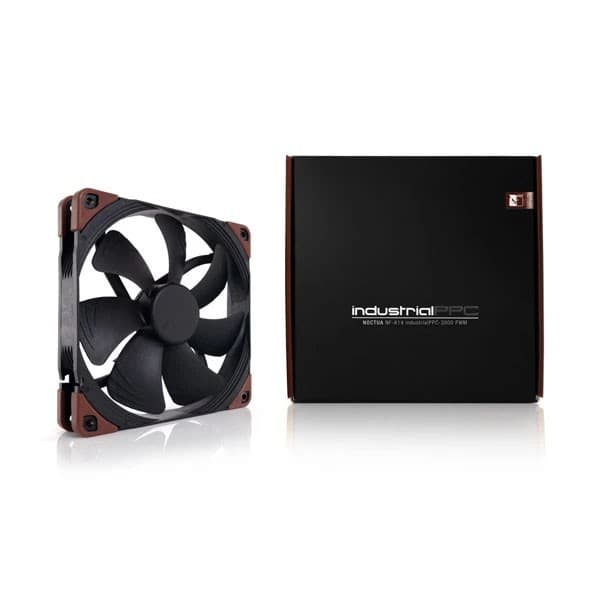

Noctua NF-A14 IndustrialPPC-3000 Cabinet Fan (Single Pack)
- Size 140x140x25 mm
- Connector & pin-configuration 4-pin PWM
- Rotational speed (+/- 10%) 3000 RPM
- Blade geometry A-Series with Flow Acceleration Channels
Original price was: ₹3,599.00.₹2,449.00Current price is: ₹2,449.00.
Award-winning NF-A14 design
Having received more than 100 awards and recommendations from the international press, Noctua’s NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
|
|
|
|
|
|---|---|---|---|
3000rpm industrialPPC versionRunning twice as fast as the 1500rpm retail version, the NF-A14 industrialPPC-3000 provides extreme airflow and pressure performance. Combined with the industrialPPC series’ robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications. |
Fibre-glass reinforced polyamide constructionBoth the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans. |
Certified IP52 water- and dust protectionThanks to a special varnish coating that covers the motor and PCB, the NF-A14 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute. |
Three-phase motor designWhile most axial fans use single-phase motors with 4 slots, Noctua’s industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency. |
6-year manufacturer’s warranty
Customisable for industry clients
| Product Details | |
| Notes and warnings | The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds. Unless you specifically require the higher speeds and performance of the industrialPPC versions, we recommend using models of our other product lines (chromax if you prefer black fans) instead. |
| FAN Specification | |
| Size | 140x140x25 mm |
| Mounting hole spacing | 124,5x124,5 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 40cm |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO |
| Material | Fibre-glass reinforced polyamide |
| Ingress protection | IP52 |
| Motor type | Three-phase |
| Rotational speed (+/- 10%) | 3000 RPM |
| Min. rotational speed (PWM, +/-20%) | 800 RPM |
| Airflow | 269,3 m³/h |
| Acoustical noise | 41,3 dB(A) |
| Static pressure | 10,52 mm H₂O |
| Max. input power | 6,6 W |
| Max. input current | 0,55 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
| Note | ***Features, Price, and specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Dimensions | 14 × 3 × 14 cm |
| Brands | |
| Fan Size | |
| FAN Speed | |
| Case Fan Pack | |
| EAN / UPC Code | |
| Warranty |
