SKU: NF-F12 PWM CH.BK.S
users viewing this item right now

Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-F12 is one of Noctua’s most renowned and popular 120mm fans. Its outstanding static pressure performance and the Focused Flow frame make it ideal for use on heatsinks and radiators. The chromax.black.swap edition combines the NF-F12’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables, additional anti-vibration pads and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing and more than 150,000 hours MTTF, the NF-F12 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

Having received more than 150 awards and recommendations from the international press, Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
![]() | ![]() | ![]() | ![]() |
|---|---|---|---|

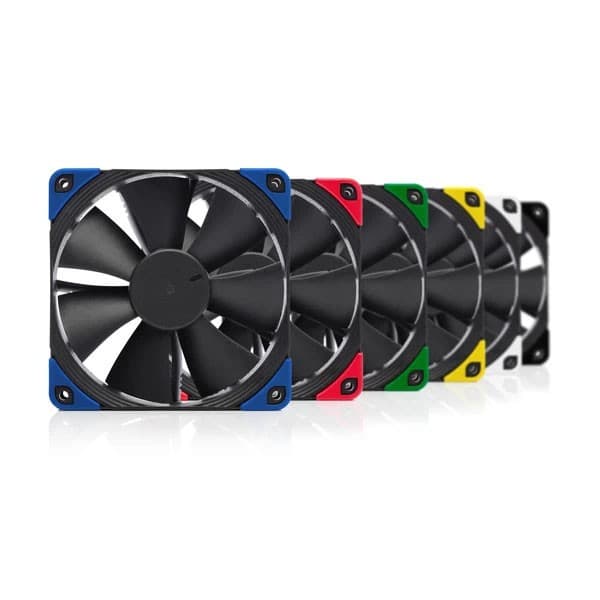

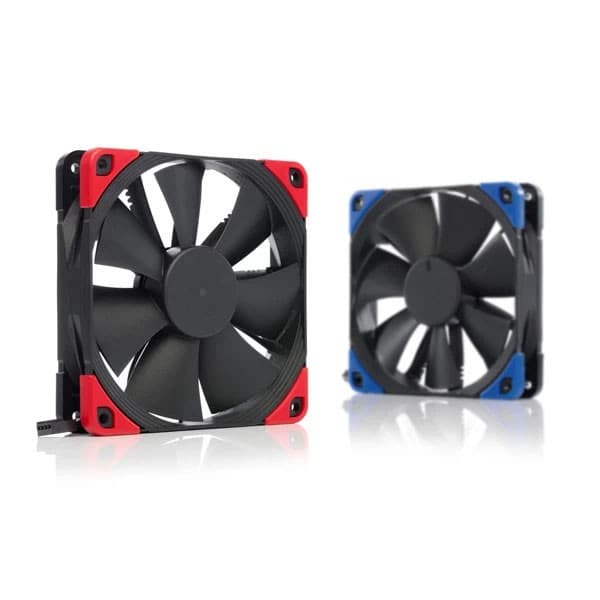

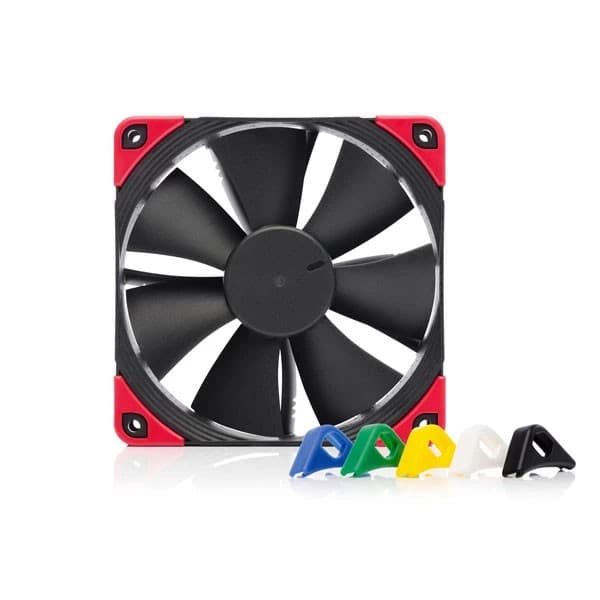

Swappable anti-vibration pads in 6 coloursThe NF-F12 PWM chromax.black.swap comes with 4 black, white, red, blue, green and yellow NA-AVP1 anti-vibration pads respectively. By combining the various colours with black or leaving off the pads on one side, the fan can be coordinated with most popular build colour schemes out of the box. Additional NA-SAVP1 sets for outfitting both sides in one colour can be purchased separately. | SSO2 bearingThe chromax line fans feature the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. | Varying Angular Distance and Vortex Control NotchesThe NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear. | Focused Flow frameDesigned for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds. |

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the chromax edition models feature an MTBF of more than 150,000 hours rating and come with a full 6-year manufacturer's warranty.
| Size | 120x120x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 1cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | Heptaperf™ |
| Frame technology | Focused Flow™ |
| Rotational speed (+/- 10%) | 1500 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Airflow | 93,4 m³/h |
| Acoustical noise | 22,4 dB(A) |
| Static pressure | 2,61 mm H₂O |
| Max. input power | 0,6 W |
| Max. input current | 0,05 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |

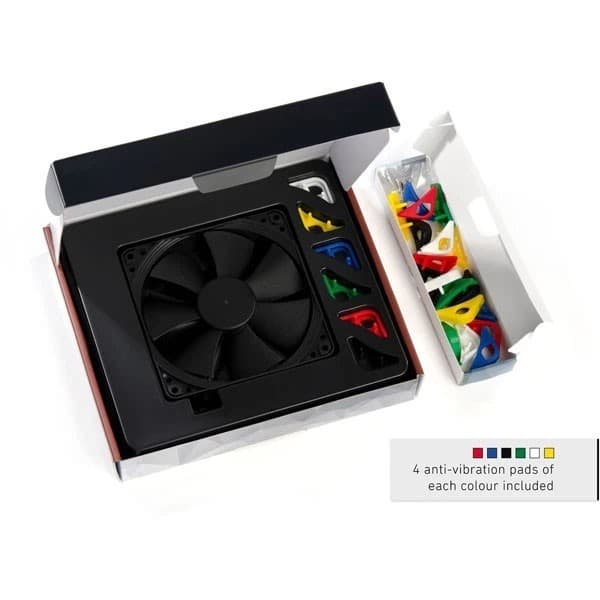

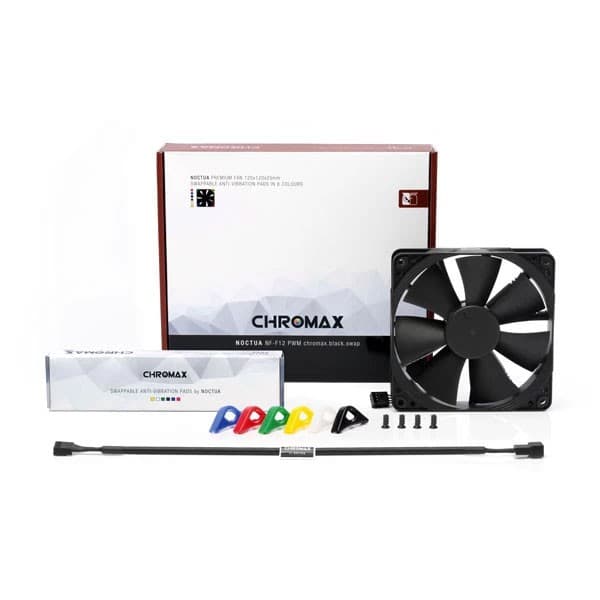

| Scope of delivery | 4x NA-AVP1 chromax.black anti-vibration pads 4x NA-AVP1 chromax.blue anti-vibration pads 4x NA-AVP1 chromax.green anti-vibration pads 4x NA-AVP1 chromax.red anti-vibration pads 4x NA-AVP1 chromax.white anti-vibration pads 4x NA-AVP1 chromax.yellow anti-vibration pads 4x fan screws |
| Warranty | 6 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
