Noctua NF-A12x15 PWM Cabinet Fan (Single Pack)
- Connector & pin-configuration : 4-pin PWM I Rotational speed : 1850RPM
- Cable length : 20cm + 30cm NA-EC1 extension cable I Low-Noise Adaptor
- Frame technology : AAO (Advanced Acoustic Optimisation)I Blade geometry : A-Series with Flow Acceleration Channels
- Max. input power : 1,56 W I Operating voltage : 12 V
- 6 Year Warranty
Original price was: ₹2,500.00.₹1,829.00Current price is: ₹1,829.00.
Out of stock
Email when stock available
Feature
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed during PWM control from 1850 to 1400rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
Metal-reinforced motor hub
With many larger-diameter slim fan designs, the shorter axis and bearing lead to a reduced running stability and lifespan. The NF-A12x15 uses a metal-reinforced motor hub, a measure typically found in high-speed industrial fans, in order to ensure Noctua’s signature stability and longevity.
|
|
|
|
|
|---|---|---|---|
Flow Acceleration ChannelsThe NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. |
SSO2 bearingThe NF-A12x15 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
Integrated anti-vibration padsIntegrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks. |

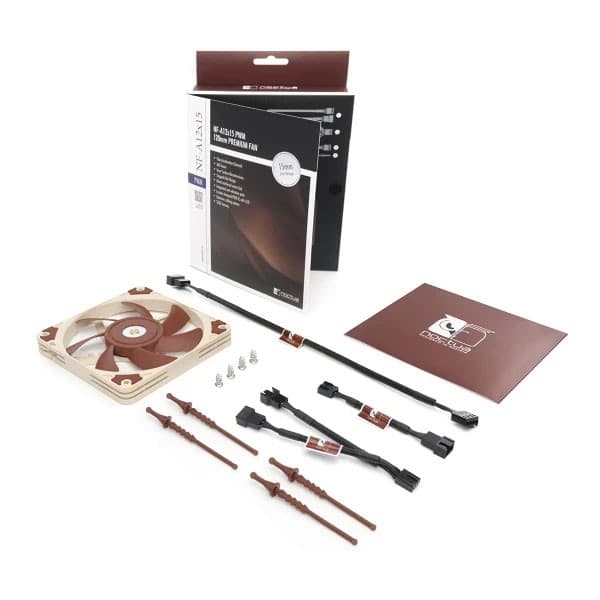

Scope of delivery
|
6-year manufacturer’s warranty
| Model | NF-A12X15-PWM |
| Size | 120x120x15 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1850 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1400 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 450 RPM |
| Airflow | 94,2 m³/h |
| Airflow with L.N.A. | 70,8 m³/h |
| Acoustical noise | 23,9 dB(A) |
| Acoustical noise with L.N.A. | 16,8 dB(A) |
| Static pressure | 1,53 mm H₂O |
| Static pressure with L.N.A. | 0,9 mm H₂O |
| Input power (typical) | 1,27 W |
| Input power (max.) | 1,56 W |
| Input current (typical) | 0,11 A |
| Max. input current | 0,13 A |
| Operating voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 3 × 12 cm |
| Brands | |
| Fan Size | |
| FAN Speed | |
| Case Fan Pack | |
| EAN / UPC Code | |
| Warranty |
