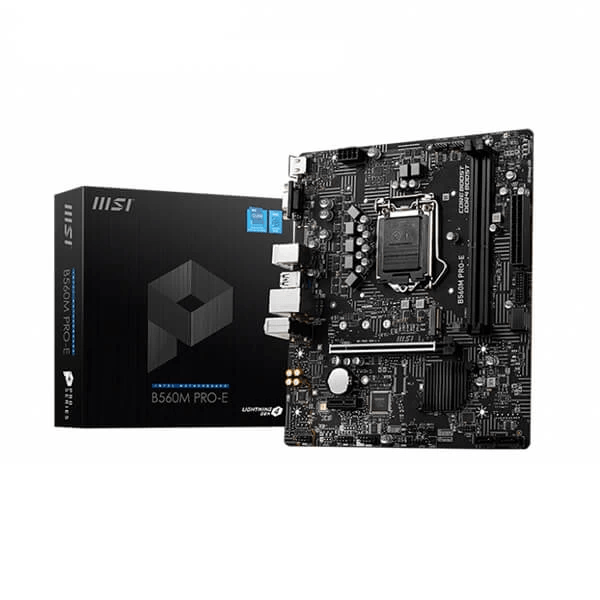

MSI B560M PRO-E Intel Motherboard
b560m pro e image 04 600x600 1
b560m pro e image 02 600x600 1
b560m pro e image 01 600x600 1
b560m pro e image main 600×600 1
b560m pro e image main 600×600 1
b560m pro e image main 600×600 1
b560m pro e image main 600×600 1
b560m pro e image main 600×600 1

MSI B560M PRO-E Intel Motherboard

Brands
11 sold in last 8 hours
Hurry! Over 1 people have this in their carts
  • B560M PRO-E Supports 10th Gen Intel® Core™ , 11th Gen Intel® Core™ , Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Core Boost :  With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost :  Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience :  PCIe 4.0
  •  Delivery & Return

    ? Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  Estimated Delivery: Dec 25 – Dec 29
  ... people are viewing this right now
  Share
Guaranteed Safe Checkout

Original price was: ₹10,950.00.Current price is: ₹7,399.00.

+ −
Description Specifications Additional information Reviews (0) Q & A

MSI B560M PRO-E Intel Motherboard

MSI Business Class B560 Intel 11th Gen Micro ATX Motherboard Featuring 2.5 Gigabit Ethernet Connectivity, 7.1 Channel Audio With MSI Audio Boost.

Features

  • MSI B560M PRO-E Supports 10th Gen Intel® Core™ , 11th Gen Intel® Core™ , Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Core Boost :  With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost :  Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience :  PCIe 4.0
  • Turbo M.2 :  Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost :  Reward your ears with studio grade sound quality
  • Steel Armor :  Protecting VGA cards against bending and EMI for better performance, stability and strength.

HIGH-SPEED TRANSMISSION

MSI Intel Motherboard
MSI Intel Motherboard

Core Boost
With premium layout and digital power design to support more cores and provide better performance.

MSI Intel Motherboard

Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience.

MSI Intel Motherboard

DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.

MSI Intel Motherboard

Lightning Gen 4 Solution
The latest Gen 4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.

MSI Intel Motherboard

PCI-E Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

MSI Intel Motherboard

MSI Intel Motherboard

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

MSI Intel Motherboard

PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

MSI Intel Motherboard

TURBO M.2

Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

MSI Intel Motherboard

ENHANCED STABILITY WITH DDR4 BOOST

Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during high workload.

MSI Intel Motherboard

STEEL ARMOR

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

MSI Intel Motherboard

AUDIO BOOST

Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.

Description Specifications Additional information Reviews (0) Q & A
CPU Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200
Chipset Intel® B560 chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4800 MHz
    • 1DPC 2R Max speed up to 4600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x PCIe 3.0 x1 slot (From PCH)
Onboard Graphics
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Audio Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN 1x Intel® I219V 1Gbps LAN controller
Storage
Intel® B560 Chipset
  • 4x SATA 6Gb/s ports (From B560 Chipset)
  • 1x M.2 slot (Key M)
    • M2_1 slot (From B560 Chipset)
      • Supports up to PCIe 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB
Intel® B560 Chipset
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)
Form Factor
  • mATX Form Factor
  • 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)
BIOS Features
  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SMBIOS 3.0
  • Multi-language
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
Back panel Connectors
  1. HDMI
  2. VGA
  3. Mouse / Keyboard
  4. LAN port
  5. Audio connector
  6. USB 2.0
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 2.0
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Description Specifications Additional information Reviews (0) Q & A
Weight 1 kg
Dimensions 24 × 24 × 3 cm
