Corsair Obsidian Series 450D Mid-Tower PC Cabinet
- Generous expansion room for building high-performance systems
- Beautiful brushed aluminum fascia with mesh cutouts makes an elegant design statement
- Full side panel window to view your components
- Tool-free SSD, hard drive and optical drive installation
- Includes two AF140L intake fans and a rear AF120L exhaust
- Case Form Factor: Mid-Tower; Case Expansion Slots: 7
- Case Material: brushed aluminum and steel; Compatible Corsair Liquid Coolers: H55, H60, H75, H80i, H90, H100i, H105, H110
Corsair CC-9011049-WW Obsidian Series 450D Mid-Tower PC Case (Black)
Mid-Tower Size, With a Roomy Interior That’s Optimized for Airflow
Obsidian Series 450D has an elegant brushed aluminum front panel and a solid steel body, with an interior that’s optimized for efficient, high-volume airflow. But don’t let its mid-tower size fool you – the 450D can also house some serious watercooling gear.
The interior is designed for superior cooling efficiency, with a modular removable drive cage system and dual SSD bays that mount behind the motherboard tray and out of the airflow path. The extra-large, flush mounted side window puts your system-building expertise on display while keeping with the sleek and refined Obsidian Series design.
Dual AF140L Intake Fans with Direct Airflow Path to GPUs
The custom-designed, Corsair-exclusive AF140L 140mm intake fans deliver effective airflow with less noise and turbulence. Air intake passes directly across your GPUs for efficient heat dissipation.
Seven Fan Mounting Points for High-Airflow and Watercooling Applications
If your high-performance system build requires high-performance cooling, the 450D is an ideal platform. The mounts support front, bottom and rear radiators for flexible watercooling installation options, or fans for superior ventilation.

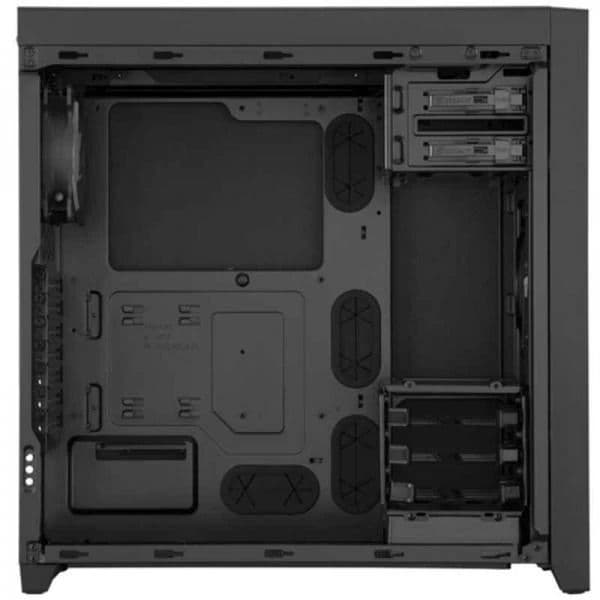

Modular Drive Cage System with Lateral SSD Bays
Mounting the SSDs under the motherboard uses interior space efficiently and gets your solid-state storage out of the airflow path. The removable drive cages allow you to use only the space you need for your storage requirements.

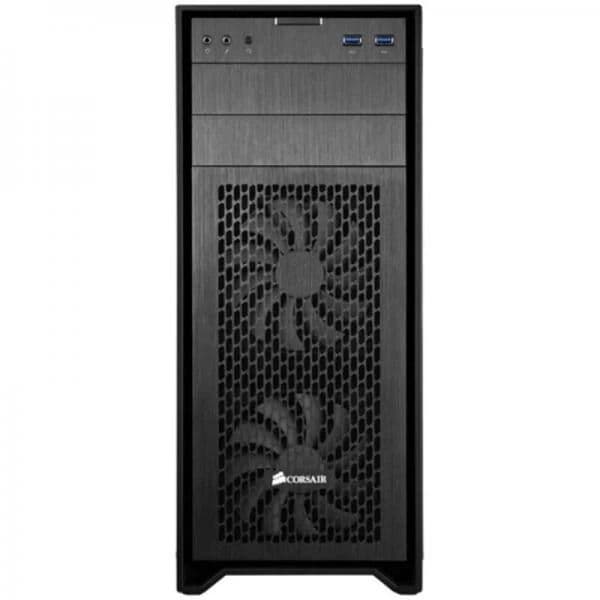

Black Anodized Brushed Aluminum Fascia
The elegant aluminum front fascia is an Obsidian Series hallmark. It’s durable and resistant to scratches and fingerprints.

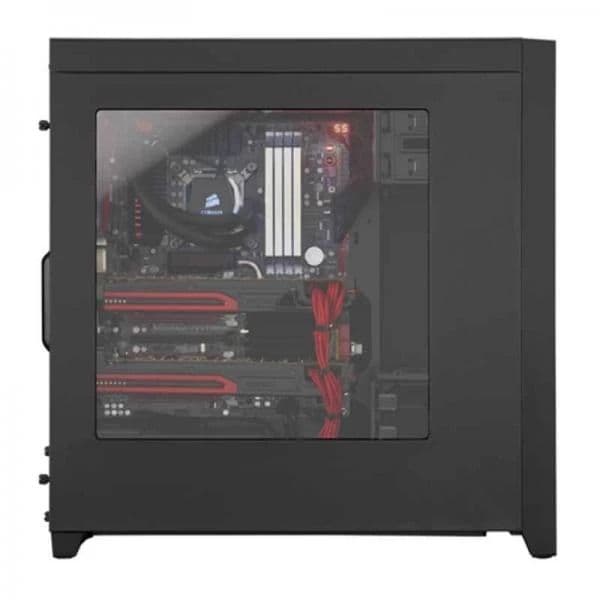

Extra-Large, Flush-Mount Side Window
The clear acrylic window lets you show off your work.
|Case Form Factor||Mid-Tower|
|Dimensions||494mm x 210mm x 497mm|
|Case Motherboard Support||Mini-ITX, MicroATX, ATX, E-ATX|
|Maximum GPU Length||430mm|
|Maximum CPU Cooler Height||165mm|
|Maximum PSU Length||200mm|
|Case Expansion Slots||7|
|Case Drive Bays||(x2) 5.25in (x2) 2.5in (x3) Combo 3.5in/2.5in|
|Case Material||Brushed Aluminum and Steel|
|Case Power Supply||ATX (not included)|
|External Connections||(x2) USB 3.0 (x1) Headphone Port (x1) Microphone Port|
|Fan Mount Locations||Front: (x2) 120/140mm Top: (x3) 120mm or (x2) 140mm Rear: (x1) 120mm Bottom: (x2) 120mm|
|Fans Included||Front: (x2) 140mm Rear: (x1) 120mm|
|Radiator Mount Locations||Front: 240/280mm Top: 240/280/360mm Rear: 120mm Bottom: 240mm|
|Compatible Corsair Liquid Coolers||H55, H60, H75, H80i, H90, H100i, H105, H110|
|Note||***Features, Price and specifications are subject to change without notice.|
