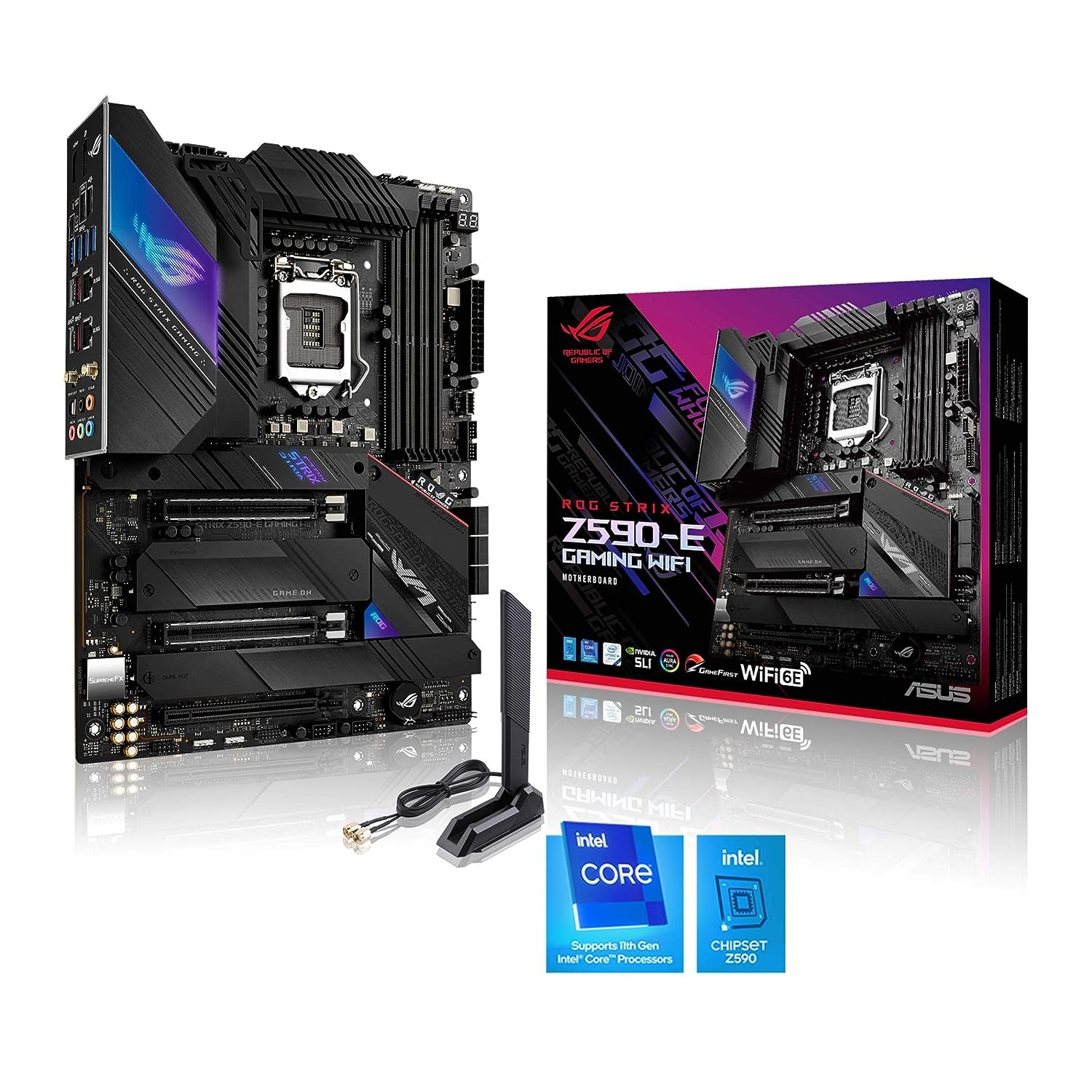

Asus Rog Strix Z590-E Gaming Wifi Motherboard
Brand: Asus
- ASUS ROG STRIX Z590-E WiFi Gaming motherboard is designed to support latest Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core. The board is PCIe 4.0 Ready supporting up to 128GB DDR4 5333MHz(OC) of memory and Intel Turbo Boost Technology.
- The board is equipped with ASUS-exclusive tools which helps in Artificial Intelligent Overclocking, Cooling, Networking and Two-Way Noise Cancelation to simplify setup and improve performance. With VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks and an M.2 backplate for the PCIe 4.0 M.2 slot the board is having optimized thermal design.
- Enjoy the best gaming connectivity with HDMI 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 USB Type-C. For high-performance networking its equipped with Intel WiFi 6E AX210 (802.11ax) and dual Intel 2.5 Gb Ethernet with ASUS LANGuard.
- Packed with additional features like BIOS FlashBack,a safest adn simplest wayt to update BIOS. Updates can even be performed without having memory or a CPU installed. A quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
... people are viewing this right now
₹58,500.00
Out of stock
Email when stock available
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today’s digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR
ROG Strix Z590-E Gaming WIFI
Intel Z590 LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), dual Intel 2.5 Gb Ethernet, four M.2 slots with heatsinks, USB 3.2 Gen 2×2 USB Type-C , SATA and Aura Sync RGB lighting
- Ready for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks and an M.2 backplate for the PCIe 4.0 M.2 slot
- High-performance Networking: On-board Intel WiFi 6E AX210 (802.11ax) and dual Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 USB Type-C
- Intelligent Control: ASUS-exclusive tools AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack, Clr CMOS button, Q-Code and FlexKey
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
|
|
|
|
|---|---|---|
Power DesignDigital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.
|
Cooling Innovation
|
COOLER BY DESIGNROG Strix Z590 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.
|
|
|
|
|
|---|---|---|
TWO-WAY AI NOISE CANCELATIONThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls. *A splitter cable is necessary when using a 3.5 mm headset. |
PCIe 4.0-ReadyROG Strix Z590-E Gaming WiFi features four onboard M.2 slots, two of which support the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors. An M.2 backplate helps deal with the heat generated by the PCIe 4.0 SSDs. In addition, three of the M.2 slots support up to a 22110 socket and NVM Express RAID. |
NetworkingIntel WiFi 6E 802.11 ax Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultra fast wireless networking speeds and improved capacity as well as better performance in dense wireless environments. Dual Intel 2.5 Gb Ethernet Dual onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming. |
|
|
|
|
|---|---|---|
ROG SUPREMEFXROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z590-E Gaming WiFi, this combination features the ALC4080 codec with a Savitech amplifier to deliver pristine audio, increasing playback resolution from 192 kHz to 384 kHz and also decreasing distortion and reducing signal interference from surrounding components.
|
UNDENIABLY ROG STRIXThe eye-catching ROG Strix Z590-E Gaming WiFi embodies the ROG spirit while boldly looking to the future. Design touches such as a glitch-effect ROG logo, etched cybertext markings and embedded Aura RGB LEDs give it a bold aesthetic while clearly paying respect to deep ROG roots. |
M.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws. |
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Supports Intel® 14 nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® Z590 Chipset |
| Memory | Memory Channels: 4DDR4 (Dual channel) |
| Max Memory Size: 128GB | |
| DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem III | |
| * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. | |
| * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. | |
| Graphics | 1 x DisplayPort 1.4** |
| 1 x HDMI™ 2.0*** | |
| * Graphics specifications may vary between CPU types. | |
| ** Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates | |
| *** Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. | |
| Expansion Slots | 2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) |
| Intel® 11th &10th Gen Processors | |
| 2 x PCIe 4.0/3.0 x16 slot(s)* | |
| – Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s) | |
| – Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) | |
| Intel® Z590 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode)** | |
| * Support PCIe bandwidth bifurcation for RAID on CPU function. | |
| “**PCIe16_3 shares bandwidth with SATA_56. When PCIe16_ 3 is populated SATA_56 will be disabled. When PCIe16_3 run at default x2 mode, SATA_56 is enabled. | |
| Multi-GPU Support | Supports NVIDIA 2-Way SLI® Technology |
| Storage | Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel®11th &10th Gen Processors* | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| – Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 | |
| – Intel® 11th processors support PCIe 4.0 x4 mode | |
| – Intel® 10th processors support PCIe 3.0 x4 mode | |
| Intel® Z590 Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* | |
| 6 x SATA 6Gb/s ports | |
| Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. | |
| To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. | |
| *When M.2_4 is operating in SATA device, SATA6G_2 will be disabled. | |
| Ethernet | 2 x Intel® I225-V 2.5Gb Ethernet |
| Wireless & Bluetooth | 2×2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 |
| USB | Rear USB: Total 10 ports |
| 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) | |
| 3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C® ) | |
| 4 x USB 3.2 Gen 1 port (4 x Type-A) | |
| 2 x USB 2.0 port(s) (2 x Type-A) | |
| Front USB: Total 7 ports | |
| 1 x USB 3.2 Gen 2×2 connector(s) (suppport(s) USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| Audio | ALC4080 |
| Audio Features | – SupremeFX Shielding Technology |
| – ALC4080 + Savitech SV3H712 AMP | |
| – Gold-plated audio jacks | |
| – Rear optical S/PDIF out port | |
| – Premium Japanese audio capacitors | |
| – Audio cover | |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C® ) | |
| 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |
| 2 x USB 2.0 port(s) (2 x Type-A) | |
| 1 x HDMI™ port | |
| 1 x DisplayPort | |
| 1 x Intel® Wi-Fi 6E | |
| 2 x Intel® I225-V 2.5Gb Ethernet | |
| 5 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Intrernal I/O Connectors | 1 x Thunderbolt 4 (onboard) |
| 1 x 4-pin CPU Fan header(s) | |
| 1 x 4-pin CPU OPT Fan header(s) | |
| 1 x 4-pin AIO Pump header(s) | |
| 3 x 4-pin Chassis Fan header(s) | |
| 1 x VRM heatsink Fan header | |
| 1 x W_PUMP+ header | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| 4 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| 1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| Miscellaneous | 3 x AURA Addressable Gen 2 header(s) |
| 1 x AURA RGB header(s) | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x Q Code | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt header | |
| Operating System | Windows 10 64bit |
| Form Factor | ATX |
| 30.5cm x 24.4cm |
