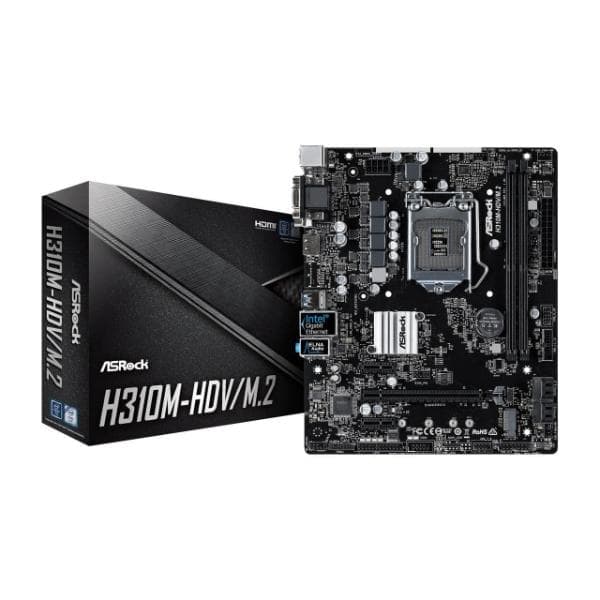

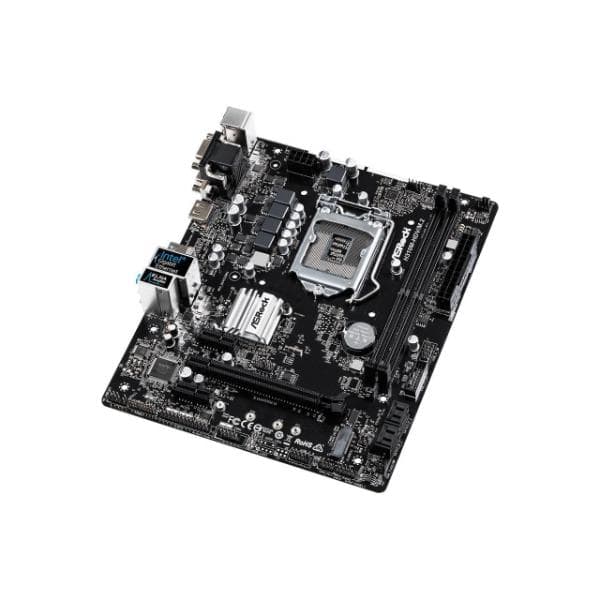

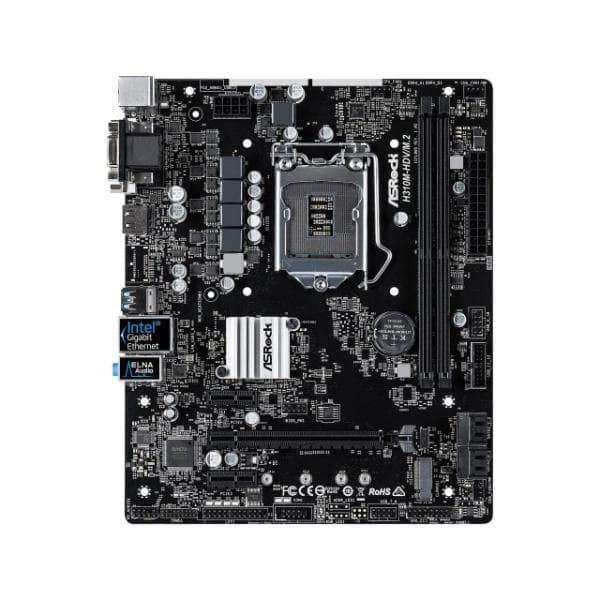

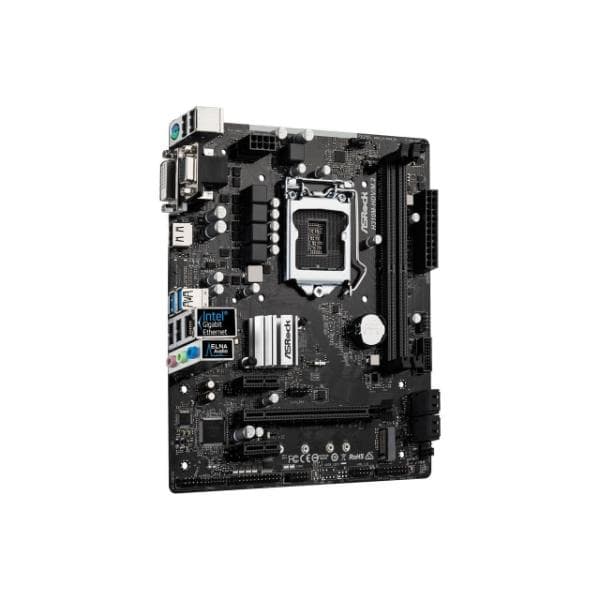

Asrock H310M-HDV/M.2 Intel LGA 1151 mATX Motherboard
- Supports 8th Generation Intel Core Processors (Socket 1151)
- Supports DDR4 2666
- 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
- AMD Quad CrossFireX
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 M.2 (PCIe Gen2 x4 & SATA3)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel Gigabit LAN
₹5,389.00
Out of stock
Email when stock available

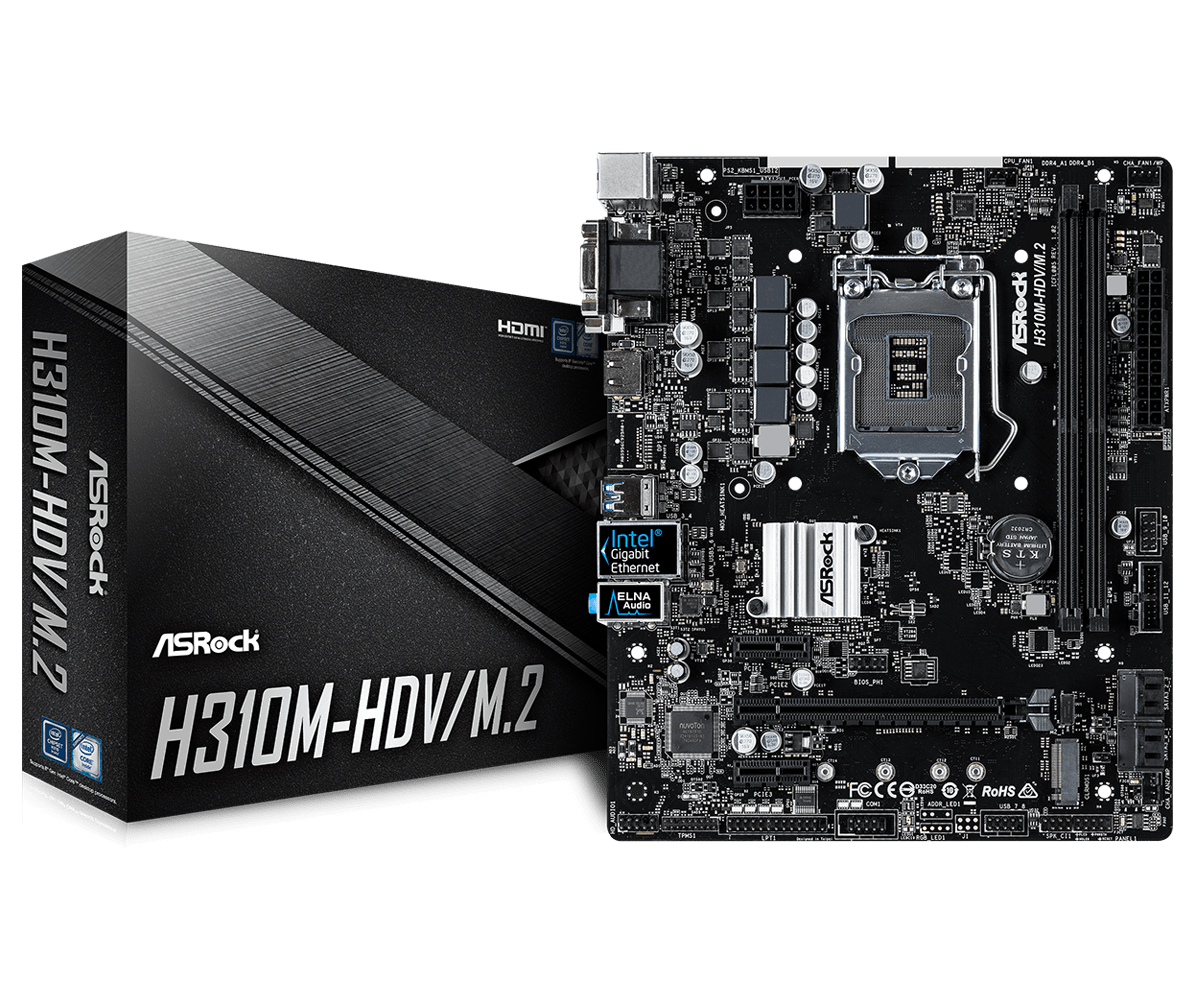

ASRock H310M-HDV/M.2 Desktop Motherboard – Intel H310 Chipset – Socket H4 LGA-1151 – Micro ATX
.png)
PCIe Gen2 x4 M.2
The PCIe Gen2 x4 interface pushes data transfer speeds up to 20Gb/s. In addition, it also supports SATA 3 6Gb/s M.2 modules, and is compatible with ASRock‘s U.2 Kit for installing some U.2 SSDs.
IntelLAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
3 Graphics Outputs
Complete with all three types of most used connectors!
Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards?
ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
A-Tuning
A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
| Feature | Specification |
|---|---|
| Model/Brand | ASRock H310M-HDV/M.2 |
| Supported CPU | 8th Generation Intel Core Processors (Socket 1151) |
| Chipset | Intel H310 |
| Onboard Video | Intel UHD Graphics Built-in Visuals |
| Memory | 2x288pin (DDR4), DDR4 2666/ 2400/ 2133, 32GB Maximum, Dual Channel |
| Expansion Slots | 1x PCI Express 3.0 x16, 2x PCI Express 2.0 x1 |
| Storage Devices | 4x SATA3 6.0 Gb/s Connectors, 1x M.2 Socket (M2_1) |
| Onboard Audio | Realtek ALC887, 7.1 Channels |
| Onboard LAN | Intel I219-V, 1Gbps |
| Rear Panel Ports | 1x PS/2, 1x D-Sub, 1x DVI-D, 1x HDMI, 2x USB 3.1 Gen1, 4x USB 2.0, 1x RJ45 LAN, HD Audio Jacks |
| Internal I/O Connectors | 2x USB 2.0 Headers, 1x USB 3.1 Gen1 Header, 1x Print Port Header, 1x COM Port Header, 1x TPM Header, 1x Chassis Intrusion and Speaker Header, 1x CPU Fan Connector (4-pin), 2x Chassis/Water Pump Fan Connectors (4-pin), 1x Front Panel Audio Connector |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 8.9" x 7.4" |
| Power Pin | 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector |
| Unique Features | ASRock Super Alloy, ASRock Full Spike Protection, ASRock Live Update & APP Shop |
| BIOS Features | 128MB AMI UEFI Legal BIOS, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
| Software | ASRock A-Tuning, ASRock XFast LAN |
| UEFI Features | ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash |
| Hardware Monitor | Temperature Sensing (CPU, Chassis/Water Pump Fans), Fan Tachometer (CPU, Chassis/Water Pump Fans), Quiet Fan, Fan Multi-Speed Control, CASE OPEN detection, Voltage monitoring (+12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.05V) |
| OS | Microsoft Windows 10 64-bit |
| Certifications | FCC, CE, ErP/EuP ready |
| Packaging Contents | Quick Installation Guide, Support CD, I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket |
