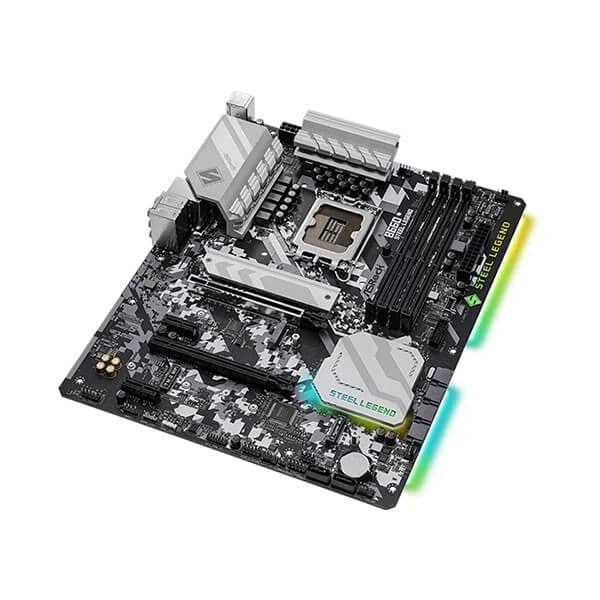

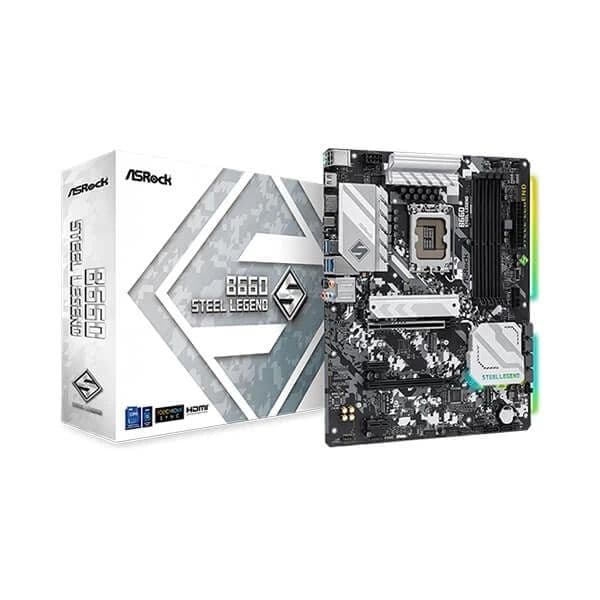

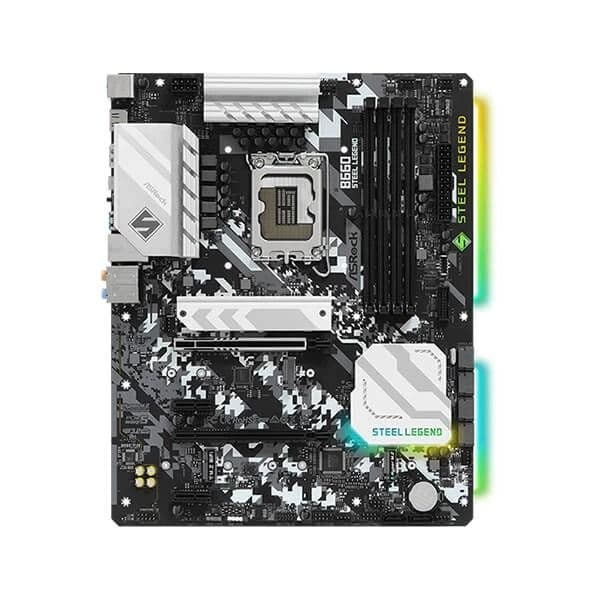

ASRock B660 Steel Legend Intel Motherboard
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi - Graphics Output Options: HDMI, DisplayPort
49 people are viewing this right now
Original price was: ₹17,500.00.₹15,849.00Current price is: ₹15,849.00.
₹1433/month 3/6/9 EMI available
at 0% EMI on
Out of stock
Email when stock available
ASRock B660 Steel Legend Motherboard
Optimized VRM Design
-
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
-
9 Power Phase Design
B660 Steel Legend Features sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
-
6 Layer PCB
The B660 Steel Legend 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Nahimic Audio
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabilizer
Ultimate Gaming Experience
- Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. - Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
High Speed M.2 Solution
This B660 Steel Legend motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Base Frequency Boost (BFB) Technology
BFB Technology allow the use of increasing TDP to enjoy the base frequency boost with the hidden power of processors with users’ non K series CPUs and ASRock’s selected 600 series motherboards
While ASRock B660 Steel Legend BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.
Front USB 3.2 Gen2x2 Type-C
The latest B660 Steel Legend USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
| Unique Feature | ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium Power Choke - 50A Dr.MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB 2.5G LAN ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
| CPU | - Supports 13th and 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 9 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel® B660 |
| Memory | - Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
*Supports DDR4 3200 natively. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC,VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
| Slots | CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE4)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks |
| Storage | CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors**
ASMedia ASM1061:
- 2 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Optane™ Memory H Series (M2_3 only)
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
|
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Connector | - 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
|

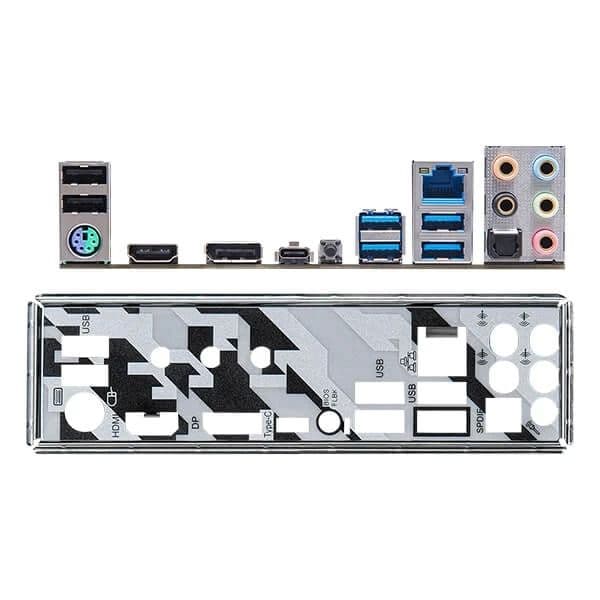

| Rear Panel I/O | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID InstallerThese utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Hardware Monitor | - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Chipset | |
| Socket | |
| Motherboard Size | |
| Memory Series | |
| Platform | |
| Motherboard Series | |
| EAN / UPC Code |
