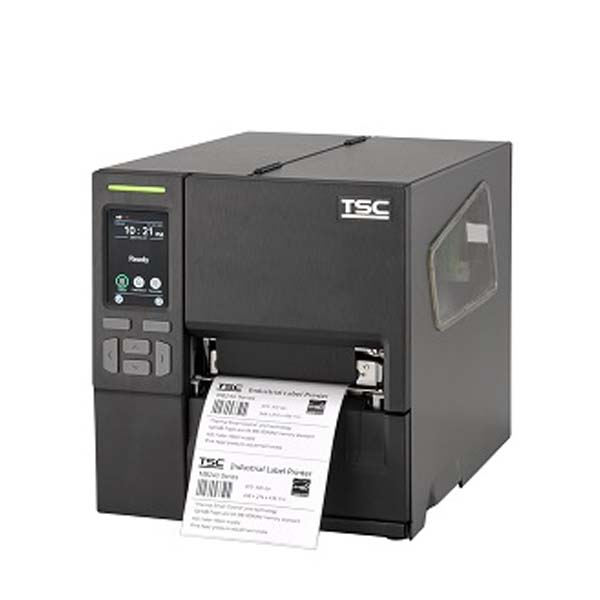

TSC MB240T Industrial Label Printer

Name: Buy TSC MB240T Industrial Label Printer - Computech Store
Brand: TSC
SKU: MB240T
Price: 53499.00 INR
Availability: InStock

Brands

8 sold in last 11 hours

Hurry! Over 4 people have this in their carts

Brand: TSC

Estimated Delivery: Fri, Dec 26 – Tue, Dec 30

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹98,499.00.Current price is: ₹53,499.00.

Description Specifications Additional information Reviews (0) Q & A

TSC MB240T Industrial Label Printer

Feature

MB240T, Touch LCD, USB + RS-232 + Ethernet + USB host + RTC,DRAM 128MB/FLASH 128MB, Wi-Fi slot-in housing, EU (EMEA)

TSC MB240 series of industrial thermal label printers is a new value leader for 4″ wide light industrial label printing. The MB240 series is designed to fit in alongside TSC’s bigger industrial printer models including the MH240 and MX240P Series. The MB240 features a small footprint, easily understood operator interface and a full set of options to meet nearly every printing application. Its compact design, quiet operation and fast label throughput is equally at home in the office or shop floor. The printer’s all-metal construction and die-cast aluminum print mechanism engine is durable enough to withstand the toughest production environments and is designed for years of trouble free use. The MB240 Series can print on a wide variety of labels, ranging from healthcare patient safety, electronics and jewelry labeling to shipping and distribution labels, making it ideal for mid sized or industrial duty printing.

2-button 5-LED (MB240/MB340)/ 6-button 3.5″ HVGA color touch LCD (MB240T/MB340T)
Wide open angle for media handling
450 meter ribbon capacity
Ribbon capacity monitor widget
Support 8″ O.D. label roll
Support up to 120mm label width
Die-cast print mechanism for custom applications

logistics / courier

e-commerces

Chemical industries

foods & FMCG

Consumer durables

Warehousing

TSPL-EZD firmware for plug-n-play ease
Available in 203 dpi and 300 dpi resolutions
Tool-less platen roller exchange
Options include: peel-off kit, 5″ OD internal rewinding kit, GPIO, internal Bluetooth module, slot-in 802.11 a/b/g/n wireless module kit, regular cutter
ENERGY STAR® qualified

Suitable for following Manufacturing

Work In Process
Product Marking
Compliance Labeling
Industrial-Duty Printing

Suitable for following Warehouse & Logistics

Packing
Order Fulfillment
Shipping/Receiving
Inventory Management

Suitable for following Retail

Product Label
Event Ticketing

Resolution

8 dots/mm (203 DPI)

Printing Method

Thermal Transfer & Direct Thermal

Max. Print Speed

254 mm (10”)/second

Max. Print Width

108 mm (4.25")

Max. Print Length

25,400 mm (1000")

Enclosure

Die-cast based print mechanism, Metal cover with large clear media view window

Physical Dimensions

Metric: 248 mm (W) x 274 mm (H) x 436 mm (D)

Imperial: 9.76” (W) x 10.79” (H) x 17.17” (D)

Weight

9.2 kg (20.28 lbs)

Label Roll Capacity

203.2 mm (8“) O.D.

Ribbon

450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside)

Ribbon Width

40 mm ~ 110 mm (1.6” ~ 4.3”)

Processor

32-bit RISC CPU

Memory

128 MB Flash memory, 128 MB SDRAM

Interfaces

RS-232, USB 2.0, Internal Ethernet (10/100 Mbps), USB host (for scanner or PC keyboard), GPIO (dealer option), Internal Bluetooth 4.2 (dealer option), Slot-in 802.11 a/b/g/n wireless (dealer option)

Power

Input: AC 100-240V, 2.0A, 50-60Hz

Output: DC 24V, 3.75A, 90W

LED/LCD

3.5” touch HVGA color LCD, 1 status indicator

Operation Switch/Buttons

6 buttons (Menu, Pause/Feed, Up, Down, Left, Right)

Sensors

Gap transmissive sensor (position adjustable), Black mark reflective sensor (position adjustable), Ribbon encoder sensor, Ribbon end sensor, Head open sensor

Real Time Clock

Standard

Internal Fonts

8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

1D Barcodes

Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post

2D Barcodes

PDF-417, Maxicode, DataMatrix, QR code, Aztec

Font & Barcode Rotation

0, 90, 180, 270 degrees

Printer Language

TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL)

Media Type

Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media Width

20 ~ 120 mm (0.8” ~ 4.7”)

Media Thickness

0.06 ~ 0.28 mm (2.36 ~ 11 mil)

Media Core Diameter

25.4 mm ~ 76.2 mm (1” ~ 3”)

Label Length

5 ~ 25,400 mm (0.2" ~ 1000")

Operating Environment

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing

Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety Regulations

FCC Class A, CE Class A, RCM Class A, cTUVus, CCC, BIS, TÜV, KC, BSMI, EAC, ENERGY STAR®

Environmental Compliance

RoHS, WEEE

Accessories

Windows labeling software CD, Quick start guide, USB cable, Power cord

Limited Warranty

Printer: 2 years

Print Head: 25 km (1 million inches) or 12 months (whichever comes first)

Platen: 50 km (2 million inches) or 12 months (whichever comes first)

Dealer Options

Peel-off kit, 5” OD internal rewinding kit, Regular guillotine cutter (full cut), GPIO, 802.11 a/b/g/n wireless module (for device without slot-in housing), Internal Bluetooth 4.2

User Options

802.11 a/b/g/n wireless module (for device with slot-in housing), KP-200 Plus keyboard display unit
