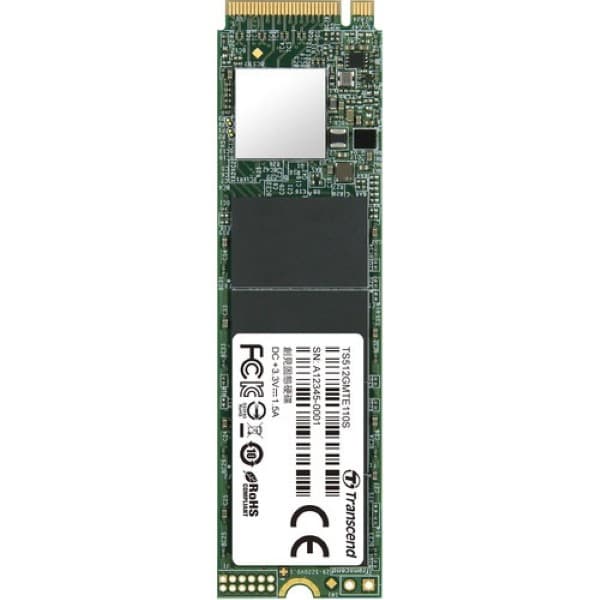

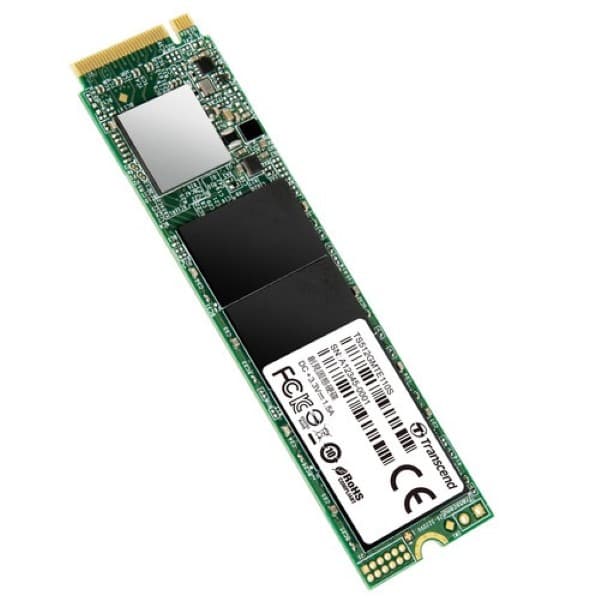

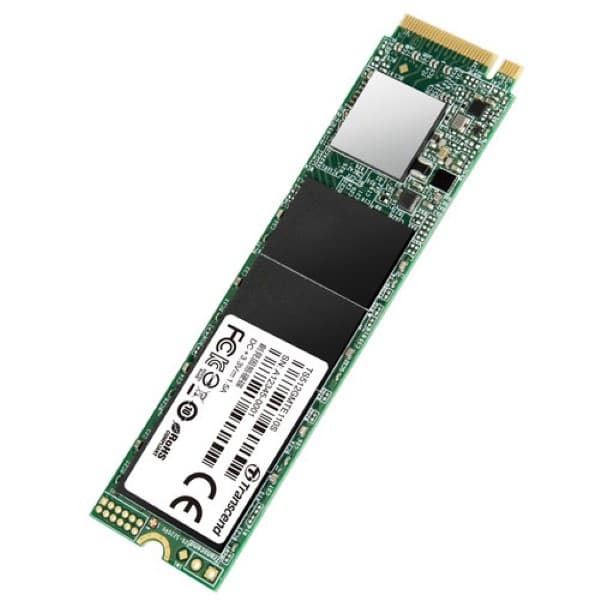

Transcend 512GB 110S M.2 PCIe Gen3 x4 SSD
- 512GB Storage Capacity
- PCIe Gen3 x4 Interface
- Read Speed: Up to 1700 MB/s
- Write Speed: Up to 1400 MB/s
- 3D NAND Fash Memory
- Transcend SSD Scope Software
Original price was: ₹7,999.00.₹5,099.00Current price is: ₹5,099.00.
Transcend NVMe PCIe Gen3 x4 MTE110S M.2 SSD Solid State Drive
- Adopts PCIe Gen3 x4 interface and NVMe 1.3 standard
- Up to 1,700 MB/s read; 1,400 MB/s write
- 3D NAND flash memory
- Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity; built-in SLC caching technology for exceptional transfer speeds
- Engineered dynamic thermal throttling mechanism
|
|
|
|
|---|---|---|
Compelling performance for high-end applicationsTranscend’s PCIe SSD 110S follows NVMe 1.3 and utilizes the PCIe Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 1,800MB/s read and 1,500MB/s write. Note: Performance is based on CrystalDiskMark v5.0.2. |
Understanding the PCIe interfacePCIe (or PCI Express) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements. |
Understanding the NVMe standardNVMe (or NVM Express) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency. |
|
|
|
|
|
|---|---|---|---|
3D expansion to break through limitsUnlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance. |
Better endurance, higher reliabilityTranscend’s PCIe SSD 110S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S has superior endurance and stability for high-end applications. |
Transcend SSD Scope softwareTo keep your Transcend SSD running fast and error-free, Transcend’s SSD Scope software application is available for download free of charge. Monitor your SSD’s health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD’s firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks. |
Transcend 110S Internal SSD Specs
| Storage Capacity | 512 GB PCIe 3.0 x4 M.2 SSD |
| Read Speed | Sequential: 1700 MB/s |
| Write Speed | Sequential: 1400 MB/s |
| Flash Memory Type | 3D NAND |
| SMART Support | Yes |
| TRIM Support | No |
| Encryption | None |
| Endurance (Total Bytes Written) | 200 TB |
| Mean Time Between Failures (MTBF) | 2.0 Million Hours |
| Operating Temperature | 32 to 158°F / 0 to 70°C |
| Dimensions | 3.15 x 0.87 x 0.14" / 80 x 22 x 3.6 mm |
| Weight | 0.28 oz / 8 g |
