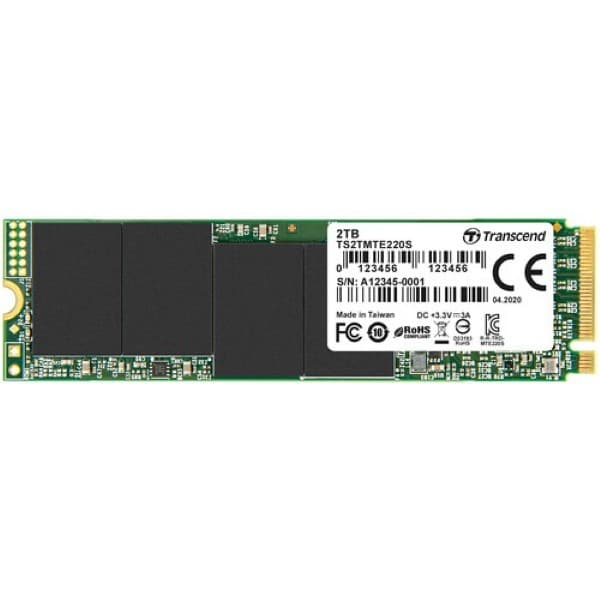

Transcend 220S 2TB M.2 PCIe SSD
- 2TB Storage Capacity
- PCIe 3.0 x4 M-Key Interface
- M.2 2280 Form Factor
- Up to 3500 MB/s Sequential Read Speed
- Up to 2900 MB/s Sequential Write Speed
- 3D NAND Flash
- 4400 TBW Endurance
- 2 Million Hour MTBF
- SMART Support
Original price was: ₹28,999.00.₹18,999.00Current price is: ₹18,999.00.
Transcend NVMe PCIe Gen3 x4 MTE220S M.2 SSD Solid State Drive
- – Adopts PCIe Gen3 x4 interface and NVMe 1.3 standard
- – Up to 3,500 MB/s read; 2,900 MB/s write
- – 3D NAND flash memory and DDR3 DRAM cache
- – Engineered with LDPC (Low-Density Parity Check) coding to ensure data integrity; built-in SLC caching technology for exceptional transfer speeds; an 8-channel controller for ultra high data throughput
- – Engineered dynamic thermal throttling mechanism
|
|
|
|
|---|---|---|
Supreme transfer speedsTranscend’s PCIe SSD 220S follows NVMe 1.3 and utilizes the PCIe Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously. Its 8-channel controller supports ultra high data throughput, resulting in compelling performance of up to 3,500MB/s read and 2,700MB/s write. |
Understanding the PCIe interfacePCIe (or PCI Express) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements. |
Understanding the NVMe standardNVMe (or NVM Express) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency. |
|
|
|
|
|
|---|---|---|---|
3D expansion to break through limitsUnlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance. |
Better endurance, higher reliabilityTranscend’s PCIe SSD 220S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality 3D NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 220S guarantees superior endurance and stability for high-end applications. |
Transcend SSD Scope softwareTranscend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive. |
High qualityTo ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality. |
Transcend 220S Internal SSD Specs
| Storage Capacity | 2 TB PCIe 3.0 x4 M.2 2280 SSD |
| Read Speed | Random: 340,000 IOPS 4 kB Files Sequential: 3500 MB/s |
| Write Speed | Random: 360,000 IOPS 4 kB Files Sequential: 2900 MB/s |
SSD Specs
| Flash Memory Type | 3D NAND |
| SMART Support | Yes |
| TRIM Support | No |
Reliability / Data Integrity
| Encryption | None |
| Endurance (Total Bytes Written) | 4400 TB |
| Mean Time Between Failures (MTBF) | 2.0 Million Hours |
Electrical
| Supported Voltage | 3.3 VDC |
Environmental
| Operating Temperature | 32 to 158°F / 0 to 70°C |
General
| Certifications | BSMI, CE, FCC, RCM *as per Manufacturer |
| Dimensions | 3.1 x 0.9 x 0.14" / 80 x 22 x 3.58 mm |
| Weight | 0.4 oz / 10 g |
