Thermaltake TR100 M-ITX Mini Tower Case

Thermaltake TR100 Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. It supports a high-end graphics cards up to 360mm, an SFX power supply and features space for two 120mm or 140mm fans on the top, as well as room for a 280mm AIO cooler. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them

Size Down, Power Up

Thermaltake TR100 Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build.

Compact Design

Thermaltake TR100 is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.

Superior GPU Support

The TR100 supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.

Efficient Cooling Solutions

Thermaltake TR100 supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.

TT Travel Trunk for TR100

The lightweight and durable luggage is designed to carry the PC case and a full gaming setup, including a VR headset, portable monitor, keyboard, and mouse.

Easy Access with Removable Panels

Thermaltake TR100’s modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.

SFX PSU Support

The TR100 features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.

Air Intake and Exhaust

Despite its compact size, the TR100 still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.Air Intake and Exhaust

FAN SUPPORT

• Top:
  2 x 120mm, 1 x 120mm
  2 x 140mm, 1 x 140mm

RADIATOR SUPPORT

• Top Side(AIO):
  1 x 240mm, 1 x 120mm
  1 x 280mm, 1 x 140mm

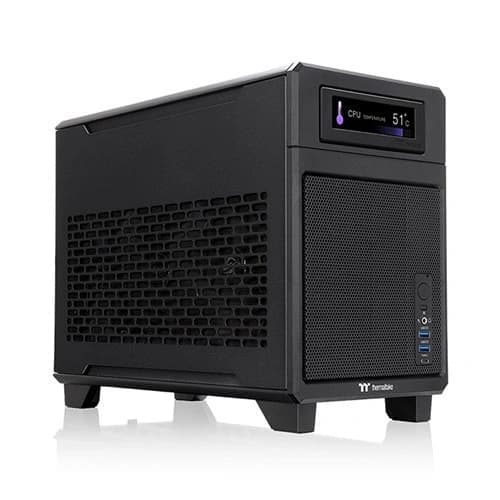

LCD Screen Sold Separately
