Sold Out

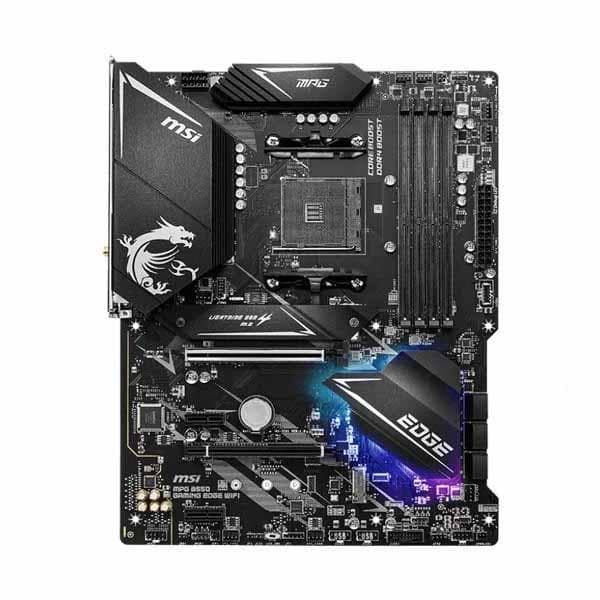

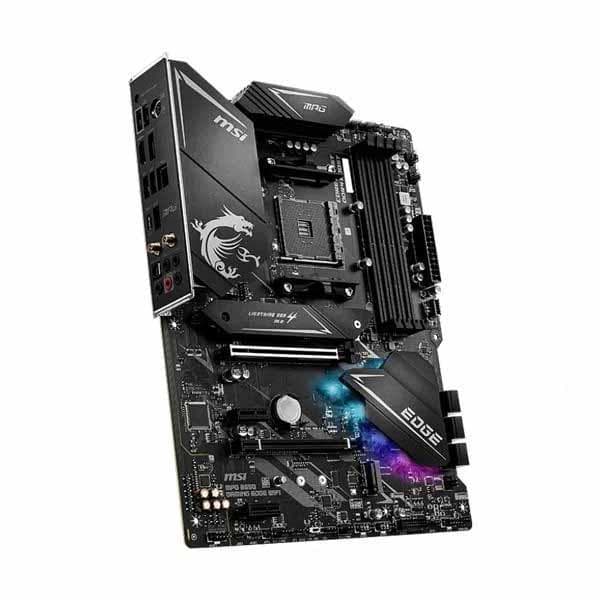

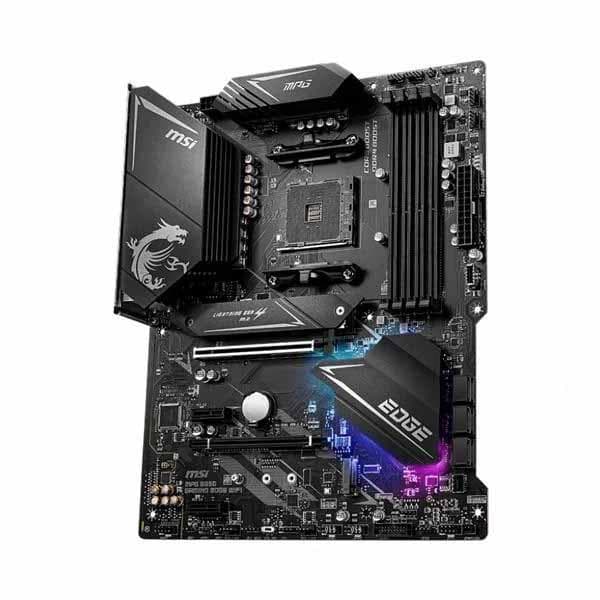

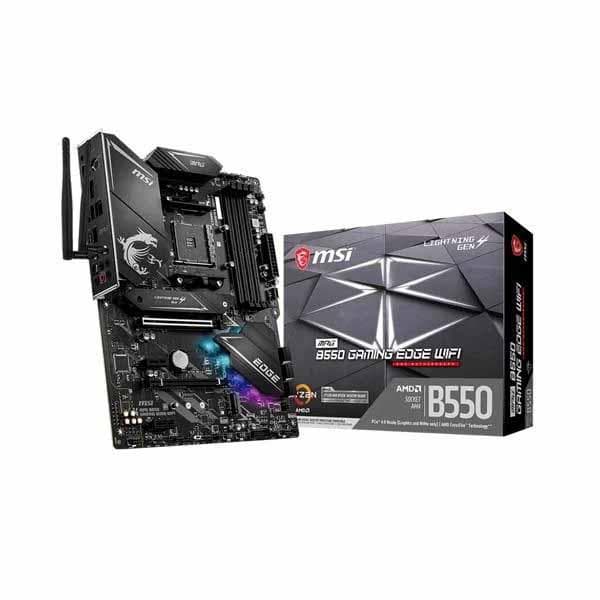

Msi Mpg B550 Gaming Edge Wifi Motherboard

Brands

Powered by 3rd generation AMD Ryzen 9, Ryzen7, Ryzen 5 AM4 to maximize connectivity and speed with dual M.2, PCIe 4.0, USB 3.2 Gen2 and up to 128GB of DDR4 (4866MHz).
On-board Wi-Fi 6 (802.11ax) with MU-MIMO support which provides a great networking performance and online gaming experience.
With 3rd Gen Ryzen processors, this motherboard featurs the latest Lightning Gen 4 solution on both PCI-E and M.2 slot, which allow for faster data transfer on graphics cards, storage devices and networking devices.
AUDIO BOOST which rewards your ears with studio grade sound quality for the most immersive gaming experience.Wifi & Bluetooth – Intel Wi-Fi 6 AX200/ AX 210
Mystic Light provides a complete function to control the RGB light all around the system. It supports both RGB and RAINBOW LED strip, and 16.8 million colors / 29 effects controlled in one click.

... people are viewing this right now

Guaranteed Safe Checkout

₹18,450.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

Msi MPG B550 GAMING EDGE Gaming Edge WIFI Motherboard Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications.

Important Notice :

BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

MSI MPG B550 GAMING EDGE Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
MPG B550 GAMING EDGE Supports DDR4 Memory, up to 5100+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
Enhanced Power Design: 10+2+1 Duet Rail Power Design, Core Boost, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mK and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

MSI MB

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

MPG B550 GAMING EDGE comes With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

M.2 SHIELD FROZR

MSI MPG B550 GAMING EDGE has World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI MPG B550 GAMING EDGE motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING

MPG B550 GAMING EDGE has Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

Description Specifications Additional information Reviews (0) Q & A

CPU	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
Onboard Graphics	x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 16 GB Available for the processor with integrated graphics.
Multi-GPU	Supports 2-Way AMD CrossFire™ Technology
Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6 AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper

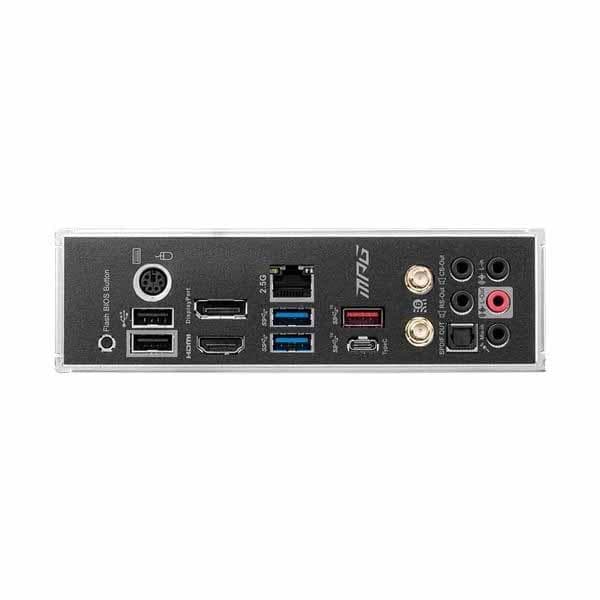

Back panel ports	PS/2 Combo Port DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) HD Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF OUT
LED Features	1x EZ LED Control switch 4x EZ Debug LED
I/O Controller	NUVOTON NCT6687-R Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.

Description Specifications Additional information Reviews (0) Q & A

Weight	1 kg
Dimensions	31 × 3 × 25 cm
Brands	MSI
Chipset	B550
Motherboard Size	ATX
Socket	AM4
Platform	AMD
Motherboard Series	MSI MPG
EAN / UPC Code	4719072728632
RAM Type	DDR4
Warranty	3 Years

Description Specifications Additional information Reviews (0) Q & A

Reviews

There are no reviews yet

Add a review

Currently, we are not accepting new reviews

Description Specifications Additional information Reviews (0) Q & A

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

SKU: MPG-B550-gaming-edge-wifi Categories: Motherboard, MSI Motherboard, MSI AMD Motherboard Tags: ATX, B550_GAMING_EDGE_WIFI, ENHANCED, EDGE_WIFI, RGB, GAMING_EDGE, B550, GAMING_EDGE_WIFI, AMD, ENHANCED_POWER, RAINBOW_LED, AMD_RADEON, ENHANCED_POWER_DESIGN, RYZEN, MPG, PCIe_4.0, AMD_MOTHERBOARD, PREMIUM_THERMAL_SOLUTION, DDR4, AMD MOTHERBOARD, MSI, B550_GAMING Brand: MSI
