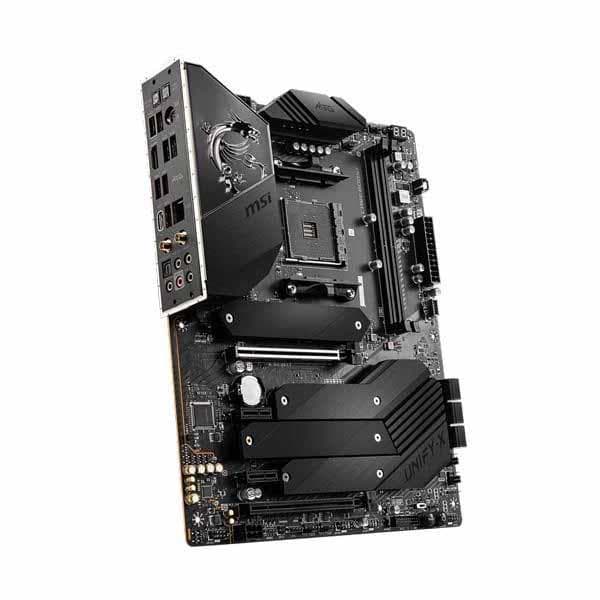

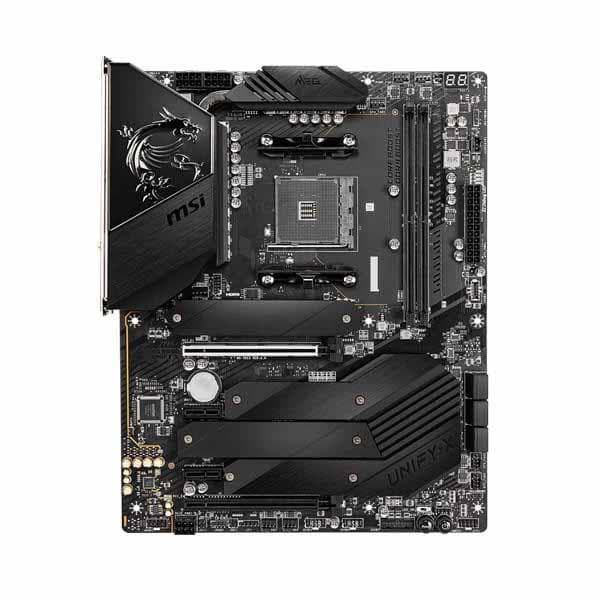

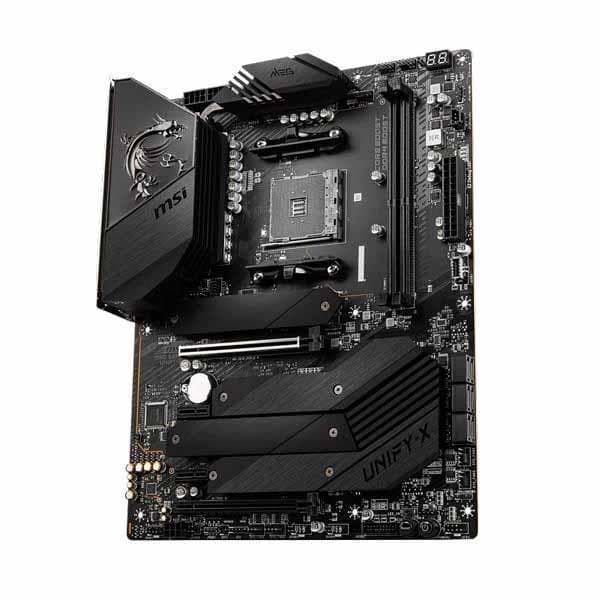

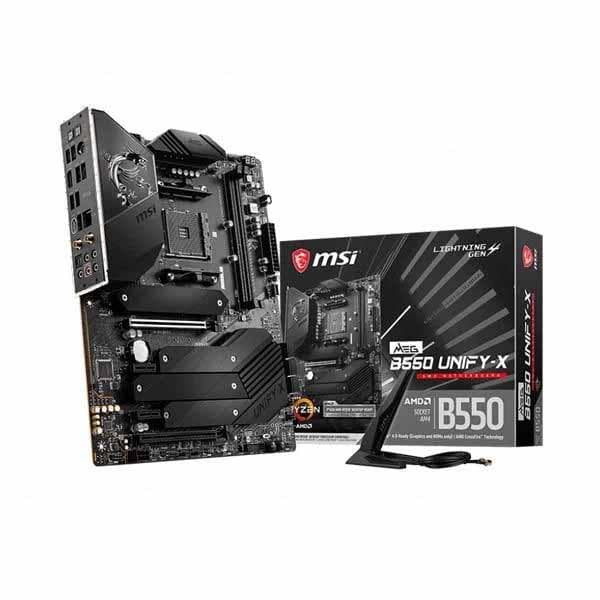

Msi Meg B550 Unify-x Motherboard

Brands

MEG B550 UNIFY-X Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
MEG B550 UNIFY-X Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ (MAX5800)
Quadruple M.2 Connectors: Maximum onboard 4x M.2 slots, support the latest Gen 4 solution with up to 64GB/s bandwidth for maximum transfer speed
Extreme Power Design: Direct 14+2 phases with 90A Power Stage and dual CPU power connectors to unleash your true power
Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience

... people are viewing this right now

Guaranteed Safe Checkout

₹29,000.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI MEG B550 Unify-X Gaming Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6Gb/s, Dual M.2, USB 3.2 Gen 2, HDMI, Wi-Fi 6 AX, ATX, AMD Ryzen 5000 Series Processors)

Important Notice :

BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

MEG B550 UNIFY-X

MSI MEG B550 UNIFY-X Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
MEG B550 UNIFY-X Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ (MAX5800)
Quadruple M.2 Connectors: Maximum onboard 4x M.2 slots, support the latest Gen 4 solution with up to 64GB/s bandwidth for maximum transfer speed.
Extreme Power Design: Direct 14+2 phases with 90A Power Stage and dual CPU power connectors to unleash your true power.
Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, AMD Turbo USB 3.2 GEN 2.
Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
Pre-installed I/O Shield: Better EMI protection and more convenience for installation.

Extreme CPU Overclocking with Ultra-Low GPU Latency


Ryzen 5000 Series Ready The MEG B550 UNIFY-X motherboard supports AMD Ryzen 5000, 4000 G-Series & 3000* Series (not compatible with Ryzen 5 3400G & Ryzen 3 3200G). Form Factor: ATX Socket Type: AMD AM4 Chipset: AMD B550	Unleash Maximum Power An aggressive VRM design employs dual 8-pin power connectors, direct 14+2 digital power phases, a mighty 90A power stage design, and Titanium Choke III inductors. Augmented with MSI’s Core Boost technology, the MEG B550 UNIFY motherboard is ready to push high-end CPU’s to their extreme limits.	Passive Cooling VRM Cooling: Features dual thermal dissipation pads (7 W/mK), dual aluminium heatsinks (with interconnecting heat pipe) and MOSFET thermal backplate. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. Chipset Cooling: Enlarged chipset heatsink & M.2 Shield Frozr (double-sided).	Fortified PCI-e 4.0 x16 MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor) 1 x PCI-e 3.0 x16 slot (CrossFire supported) 2 x PCI-e 3.0 x1 slots

Elite Performance & Connectivity


Quad M.2 Connectors The MEG B550 UNIFY-X motherboard features MSI’s latest Lightning Gen 4 M.2 ports which represent the fastest onboard storage solution available with up to 64 Gb/s transfer speeds (3 x PCI-e 4.0, 1 x PCI-e 3.0).* *M.2 specifications may vary depending on the CPU installed.	Double-Sided M.2 Shield Frozr Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. Double-sided M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.	Extreme RAM Overclocking (5800MHz) DDR 4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. A-XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.	Excellent Connectivity 2.5Gb/s LAN: RTL8125B-CG 2.5Gb/s LAN with LAN manager, delivers a premium network gaming experience. Wi-Fi 6: The latest wireless solution supports MU-MIMO and BSS color technology; Bluetooth 5.1 supported. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 4 & S/PDIF output.

Description Specifications Additional information Reviews (0) Q & A

CPU	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC AMD Ryzen 4000 G-Series processors support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 5000/ 5100/ 5300+ (Max. 5800) MHz by A-XMP OC MODE 3rd Gen AMD Ryzen processors supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE AMD Ryzen 4000 G-Series processors 1DPC 1R max speed 5300 MHz (QVL), Max. 5800 MHz 1DPC 2R max speed 4266 MHz (QVL), Max. 4600 MHz 3rd Gen AMD Ryzen processors 1DPC 1R max speed 5100 MHz (QVL), Max. 5300 MHz 1DPC 2R max speed 4260 MHz (QVL) Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slots	AMD Processor 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) AMD B550 Chipset 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 speed 2x PCIe 3.0 x1 slots (PCI_E2 & PCI_E3) The supported specification depends on installed processor. The PCI_E4 slot will be unavailable, when installing M.2 SSD into M2_4. The both PCIe x1 slots will be unavailable after you install the M.2 SSD into M2_2 slot in Chipset support mode (default mode).
Onboard Graphics	1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz Maximum shared memory of 16GB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi-GPU	Supports 2-Way AMD CrossFire^™ Technology
Storage	6x SATA 6Gb/s ports 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2280/ 22110 storage devices M2_2 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2 CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 Supports 2280 storage devices M2_3 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2 CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2280/ 22110 storage devices M2_4 slot Supports PCIe 3.0 x4 Supports 2280 storage devices The SATA5 port will be unavailable when installing M.2 SATA SSD into M2_3. The SATA5 and SATA6 ports will be unavailable when installing M.2 PCIe SSD into M2_3 M.2 specifications may vary depending on the CPU installed.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB	AMD Processor 4x USB 3.2 Gen 2 10Gbps ports(3 Type-A ports and 1 Type-C port) on the back panel AMD B550 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 4x USB 2.0 ports on the back channel AMD B550 chipset + USB 2.0 Hubs 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Audio	Realtek^® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek^® RTL8125B 2.5Gbps LAN controller
Wireless LAN & Bluetooth®	Intel^® Wi-Fi 6 AX200 The Wireless module is pre-installed in the M2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.1
Internal connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x TPM module connector 1x Clear CMOS jumper 1x Power button 1x Reset button

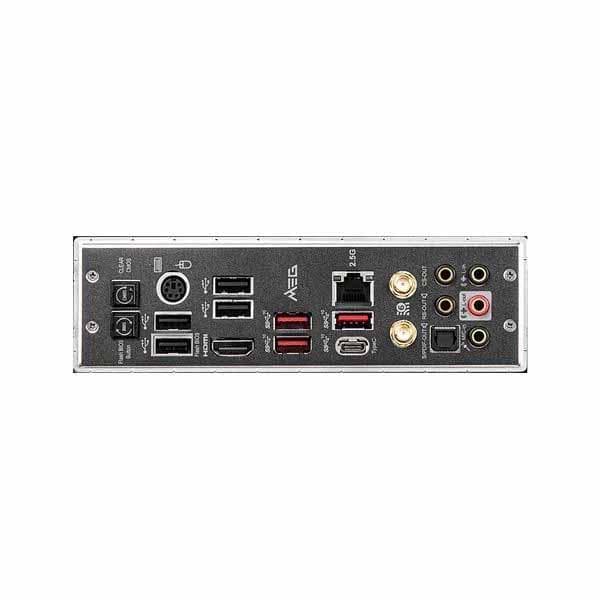

Back panel ports	Clear CMOS Button Keyboard / Mouse USB 2.0 Ports 2.5G LAN Wi-Fi /Bluetooth HD Audio Connectors Flash BIOS Button USB 2.0 Ports HDMI 2.1 Port USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A+C) Optical S/PDIF-Out
LED Features	1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LED
I/O Controller	NUVOTON NCT6687D-R Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.

Description Specifications Additional information Reviews (0) Q & A

Weight	2 kg
Dimensions	31 × 24 × 6 cm
Brands	MSI
Chipset	B550
Motherboard Size	ATX
Socket	AM4
Platform	AMD
Motherboard Series	MSI MEG
EAN / UPC Code	4719072775056
RAM Type	DDR4
Warranty	3 Years
