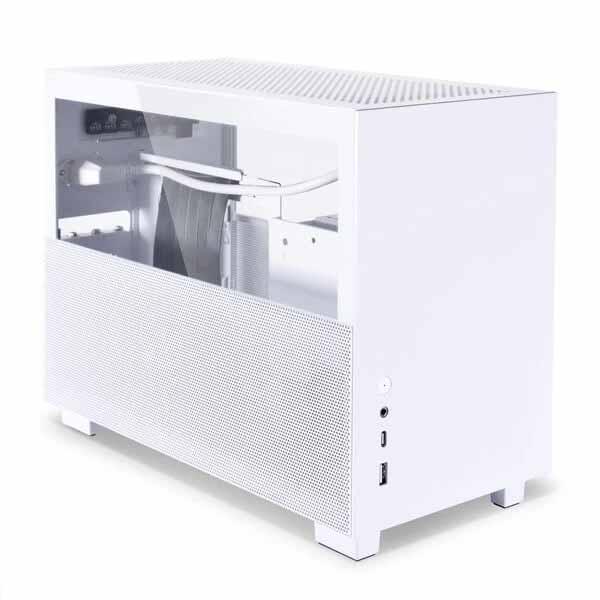

Lian Li Q58W3 Cabinet With PCIe 3.0 Riser Cable (White)
- Lian Li Q58 White with PCIe 3.0
- Split Mesh and glass side panels
- Mini-ITX motherboard support with slit at top of motherboard tray to pass PCIE cable
- Power Supply Size : SFX/ SFX-L/ATX (max length 160mm)
- Motherboard tray SSD mounting location
Original price was: ₹15,599.00.₹10,749.00Current price is: ₹10,749.00.
Out of stock
Email when stock available
CRAFTMANSHIP IN WHITE
The mini-ITX chassis exquisite aluminum craftsmanship guarantees airflow while displaying the components.
SWAPPABLE HINGE PANELS
The dual side split hinged panels feature two 3.0mm thick tempered glass panels and two 1.0mm fine mesh panels that are swappable.The Lian li Q58 can accommodate both the airflow and the look of your choice.
MODULAR DESIGN FOR SFX/ATX POWER SUPPLY
Compatible for both SFX and ATX PSU, the Q58W3 comes with an additional bracket to transform from SFX PSU mode to ATX PSU mode.
DETAILS MAKE PERFECTION
BUILD LIKE A PRO – AVOID GLASS DAMAGES The hinged glass panel features a curve hole at the rear, which allows opening of the panel without removing the thumbscrew, and helps avoid any possible damage caused to the glass by preventing it from leaning on the table.
EFFORTLESS CONNECTION – INCLUDED LED/ FAN HUB
Flip the LIAN LI logo plate at the rear to access the LED/fan hub that supports 3 PWM fan headers and 3 LED headers ( 5V 3 Pin ARGB) without dealing with cable clutter.
ADVANCE KIT – TOOLLESS HOT SWAP SSD TRAY
Exclusively design for the Q58W3, a toolless hot swap SSD tray is located at the front top of the case. Simply open the top and front panel to quickly remove or replace the SSD without unplugging any cables.
FLEXIBLE COOLING SUPPORT
In SFX PSU mode, the Q58 has room for a 280mm AIO. Depending on the mounting configuration employed, the actual supported length of the AIO varies.
UNCOMPROMISED STORAGE SPACE
The ingenious use of the room in the Q58 allows for 4 storage drive mounting locations. Drives support includes 4×2.5” SSDs, or 3×2.5” SSDs and 1×3.5” HDD.
COMPACT YET SPACIOUS GPU SUPPORT WITH RISER CABLE
The Q58W3 implements a PCIe 3.0 riser cable to vertically mount a GPU up to 3 slots thick and 320mm long.
USB 3.1 TYPE C PORT
The Q58W3 I/O ports are located at the front panel and feature a Type C port with efficient transmission speeds.
COMPREHENSIVE CABLE MANAGEMENT
Several Velcro straps and multiple cable tie-down points are provided to tidy up the cables and the bottom fan bracket helps to snuggle the cables into the
Q58W3. STOP THE DUST
Two magnetic dust filters are attached at the bottom of the chassis and the mesh panel to prevents dust from entering the case.
| PRODUCT NAME | LIAN LI Q58 |
| MODEL | Q58W3 |
| COLOR | White |
| RISER CABLE GENERATION | PCIe3.0 |
| DIMENSIONS | (D) 342mm x (W) 170mm x (H) 250mm |
| MATERIALS | Aluminum Exterior SPCC Steel Interior 3.0mm tinted tempered glass side panels |
| MOTHERBOARD SUPPORT | Mini-ITX |
| FAN SUPPORT | SFX PSU Mode: Top：2x 120mm or 2x 140mm Bottom：1x 120mm ATX PSU Mode: Top：1x 120mm or 1x 140mm Bottom：1x 120mm |
| RADIATOR SUPPORT | SFX PSU Mode: Top：1x 240mm or 280mm (Max length 315mm, or max 325mm if remove front SSD tray) Bottom：1x 120mm ATX PSU Mode: Top：1x 120mm Bottom：1x 120mm |
| PSU SUPPORT | SFX/SFX-L/ATX (max length 160mm) |
| GPU LENGTH CLEARANCE | Max 320mm |
| CPU COOLER CLEARANCE | Max 67mm |
| DRIVE SUPPORT | SFX PSU Mode: 4x 2.5” SSD or 3x 2.5” SSD + 1x 3.5” HDD ATX PSU Mode: 2x 2.5” SSD |
| EXPANSION SLOT | 3 |
| I/O PORTS | 1x USB 3.0, 1x USB 3.1 TYPE-C, 1x HD AUDIO |
| DUST FILTER | 2 x bottom magnetic |
| Warranty | 1 Year |
