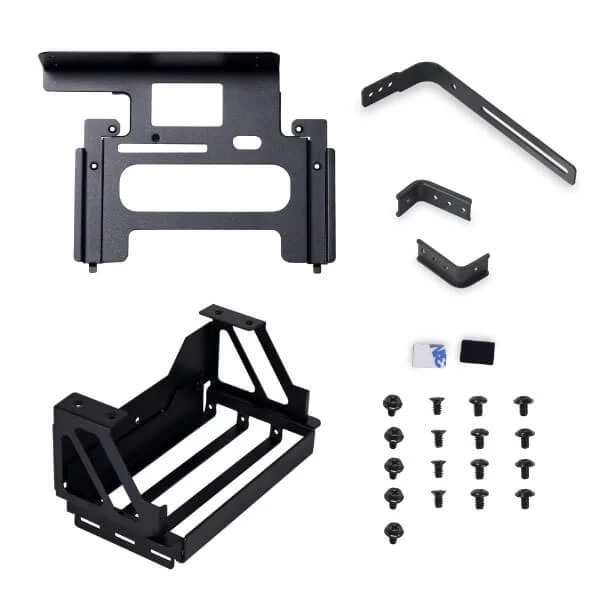

Lian Li O11D EVO Upright GPU Bracket Kit For RTX 40 Series GPU (Black)
- Upright graphics card accessories for O11D EVO
- New mounting angle for GPU opens room for unrestricted chimney-style configuration.
- GPU COMPATIBILITY – Length: Maximum 355MM / Thickness: Maximum 62MM thick /
Original price was: ₹1,599.00.₹1,089.00Current price is: ₹1,089.00.
Lian Li O11D EVO Upright GPU Bracket Kit For RTX 40 Series GPU (Black)
Features:
- Upright graphics card accessories for Lian Li O11D EVO
- New mounting angle for GPU opens room for unrestricted chimney-style configuration.
- Designed for large GPUs such as 40 series GPUs
O11D EVO
Upright GPU Bracket for 40 Series GPU
Mount large graphics cards in a unique way for better cooling performance with the upright GPU bracket.
AVAILABLE AS UPGRADE KIT
Users who own the original upright GPU bracket (O11DE-2/ O11DE-6) can purchase the add-on supplemental kit to ideally hold the longer and thicker 40 series GPU at the upright position.
OPTIMIZED FOR DIRECT COOLING
The GPU standing upright next to the motherboard creates a chimney-style airflow, moreover the ability to mount intake fans behind the GPU effectively controls the GPU temperature.
SIMPLE INSTALLATION
The new upright GPU kit mounts directly to the side fan bracket, which makes the installation easier and slightly shifts the GPU position to prevent the upright GPUs from interfering with top/bottom mounted fans/radiators.
SUPPORTS WIDE VARIETY SIZES OF GPU
The adjustable bracket can hold all kinds of GPUs which within 3 slots thick.
RECOMMEND SET UP FOR SOME GPUS
Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when using an upright GPU kit.
| PRODUCT NAME | O11D EVO Upright GPU Bracket for 40 Series GPU |
| MODEL | O11DE-9X |
| COLOR | Black |
| BRACKET DIMENSION | Mounting frame: 115.8mm(L) x 158.8mm(D) x 50 mm(H) Support frame: 70mm(L) x 81mm(D) x 10 mm(H) |
| MATERIAL | 1mm STEEL |
| EXPANSION SLOT | 3 slots |
| GPU COMPATIBILITY | Length: Maximum 348MM Thickness: Maximum 75MM thick Width: 135MM~150MM |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Product Type | |
|---|---|
| Brands | |
| color | |
| Warranty | |
| EAN / UPC Code |
Q & A
Ask a question
Your question will be answered by a store representative or other customers.
Thank you for the question!
Your question has been received and will be answered soon. Please do not submit the same question again.
Error
An error occurred when saving your question. Please report it to the website administrator. Additional information:
Add an answer
Thank you for the answer!
Your answer has been received and will be published soon. Please do not submit the same answer again.
Error
An error occurred when saving your answer. Please report it to the website administrator. Additional information:
Related Products
- Improved daisy chain design to connect 2 clusters of fans.
- SL120 V2 fan frame thickness is 28mm to provide 10% improved airflow compared to V1.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
In stock
- Black, Mid- Tower, (D) 526 x (W) 238 x (H) 523 mm, Aluminum 4.0mm tempered glass (both sides)
- Behind MB Tray: 2 X 2.5ʹʹ SSD , Hard Drive Cage: 4 X 3.5ʹʹ HDD/2.5ʹʹ SSD , Behind the Right-side Shroud Panel: 3 X 2.5ʹʹ SSD Above , PSU Chamber:3 X 2.5ʹʹ SSD
- Power Button, Reset Button, C Mode, M mode, USB 3.0 * 2, Audio *1
- Pre-Installed Fans : 3 x 140mm Front Fans and 1 x 140 mm PWM Rear Fan ; Fan Support : Front (multi-way bracket): 3 X 120mm or 3 X 140mm, Above PSU Chamber: 3 X 120mm or 2 X 140mm Top: 3 X 120mm or 3 X 140mm Rear: 1 X 120mm or 1 X 140mm ; Radiator Support : Front / Top / Bottom : 360mm
- GPU Length Clearance : 420mm(Max) ; CPU Cooler Height Clearance : 185mm(Max) ; Dust Filter : 1 x Bottom
- Upright graphics card bracket for O11D EVO
- New mounting angle for GPU opens room for unrestricted chimney-style configuration.
- Vertical Graphics card holder for LANCOOL II with PCI-E Riser Cable 200mm
- Allows you display graphics cards while still having room for 2x120mm Fans
- Mounted underneath to create an unobstructed air flow
- Included PCI-E Riser Cable 200mm, allows you to mount a PCI-E 16X Card.
- Mid-tower chassis configurable for air cooling and water cooling
- Airflow optimized front, top and PSU shroud side mesh panels
- Equipped with 2 x front 160 PWM fans (ARGB or non-RGB) and 1 x rear 140mm PWM fan
- Supports 360 radiator at the top, front and a maximum of 10 fans
- Black, Mid- Tower, (D) 526 x (W) 238 x (H) 523 mm, Aluminum 4.0mm tempered glass (both sides)
- Behind MB Tray: 2 X 2.5ʹʹ SSD , Hard Drive Cage: 4 X 3.5ʹʹ HDD/2.5ʹʹ SSD , Behind the Right-side Shroud Panel: 3 X 2.5ʹʹ SSD Above , PSU Chamber:3 X 2.5ʹʹ SSD
- Power Button, Reset Button, C Mode, M mode, USB 3.0 * 2, Audio *1
- Pre-Installed Fans : 3 x 140mm ARGB Front Fans and 1 x 140 mm PWM Rear Fan ; Fan Support : Front (multi-way bracket): 3 X 120mm or 3 X 140mm, Above PSU Chamber: 3 X 120mm or 2 X 140mm Top: 3 X 120mm or 3 X 140mm Rear: 1 X 120mm or 1 X 140mm ; Radiator Support : Front / Top / Bottom : 360mm
- GPU Length Clearance : 420mm(Max) ; CPU Cooler Height Clearance : 185mm(Max) ; Dust Filter : 1 x Bottom
- Adds LED side strips to LIAN LI performance fans – UNI Fan P28 & GA ll Trinity Performance 360 AIO fans.
- Daisy-chain design
- Compatible with L-Connect 3 (via UNI HUB) or motherboard sync.
- Switching between two different looks to match the interior configuration.
- The 35 addressable RGB LEDs embedded in the GALAHAD 240 ensures brighter and complex lighting effects.
- The CPU block pump features an aluminum housing to adorn your build with an exquisite metallic touch.
- Easier to bend, strongly built, and extremely durable, the reinforced 400mm leakproof tubes have significantly enhanced flexibility.
- improved daisy chain design to connect 2 clusters of fans.
- SL120 V2 fan frame thickness is 28mm to provide 10% improved airflow compared to V1.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
In stock
- Tower Chassis I Black I 205 mm (W) x 415 mm (D) x 485 mm (H)
- Motherboard : ATX/M-ATX/Mini-ITX
- STORAGE : 4 x 2.5″ SSD, or 2 x 2.5″ SSD+ 2 x 3.5″ HDD
- FAN SUPPORT : Top: 2 X 120/140mm
- PSU : 220 mm (max 280mm) I GPU LENGTH : 446 mm I Drive : 10 X 2.5” SSD or 6 X 2.5” SSD + 4 X 3.5” HDD
- INCL FAN : Front: 2 X 140mm 1200 RPM ARGB PWM fan I Rear: 120mm 1500 RPM ARGB PWM fan
In stock
- Model : O11DE-2X I Colour : White
- Material : 1mm Steel I Dimension : Mounting frame- 71.8 X 128 X 67.58mm, Support Frame : 70 X 81 X 10mm
- PCIE RISER CABLE : Gen 4.0 I ExpANSION SLOT : 3
- CABLE INTERFACE : PCI-E X 16 I CABLE LENGTH : 380mm
- 1 Year Manufacturer Warranty

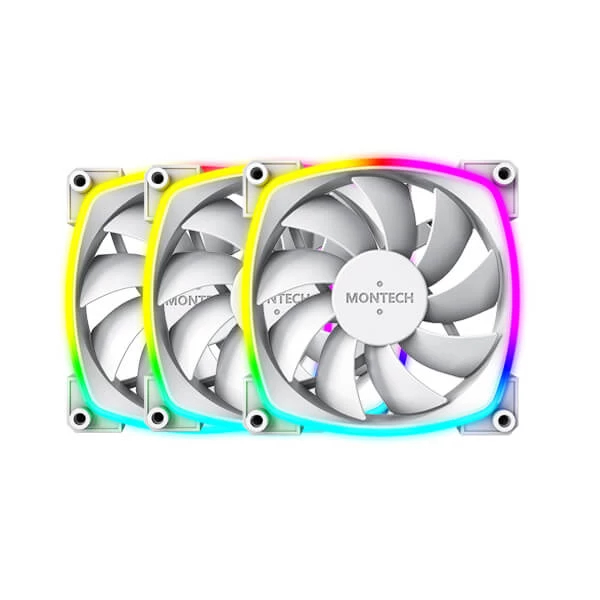

- FAN DIMENSION : 120mm x 120mm x 25mm
