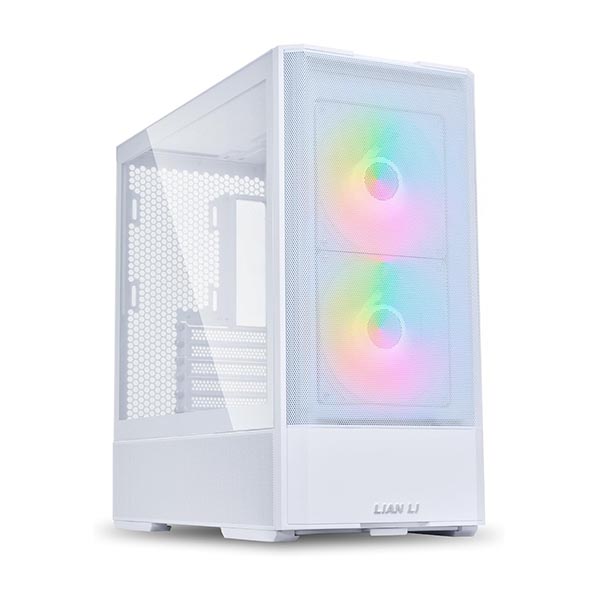

LIAN LI LANCOOL 207 Compact ATX RGB Gaming Cabinet (White)
- Accommodates a 360mm radiator on top
- Pre-installed 140mm ARGB fans x2 ,120mm PWM fans x2
- GPU anti-sag bracket included
- USB 3.0 x 2, USB 3.1 Type C x 1,Audio x 1,Power Button x 1
- 4mm glass left side panel
Original price was: ₹15,499.00.₹7,999.00Current price is: ₹7,999.00.
LIAN LI LANCOOL 207 Compact ATX RGB Gaming Computer Case, Airflow Optimized Mesh Panels Tower Chassis w/ 2x140mm ARGB,2x120mm PWM Fans Pre-Installed, USB Type-C Port, Tempered Glass Side Panel (White)
Feature
- M-ATX Size, ATX Compatibility – The M-ATX chassis is designed with ATX compatibility in mind. It can accommodate up to a 360mm radiator on the top, making it suitable for advanced cooling setups. The motherboard tray, recessed and slightly lower into the PSU shroud to improve cooling compatibility, supports the ATX form factor. The case can fit ATX power supplies, ensuring sufficient power delivery for high-performance builds. Additionally, the chassis allows for graphics cards with lengths of up to 410mm, meeting the demands of powerful graphics requirements.
- Front Fans – The LANCOOL 207 comes with two pre-installed 140x140x30mm ARGB fans at the front, each equipped with an infinity mirror at the center for stunning lighting effects. The fans can reach speeds of up to 1900 RPM.
- Bottom Fans – Two pre-installed 120x120x25mm PWM fans feature 11 fan blades to maximize airflow. They reach speeds of up to 1950 RPM to provide robust cooling performance directly under the GPU.
- Enhanced Airflow Design – The Lian Li LANCOOL 207 features a large, well-ventilated mesh panel on the front, at the top, and bottom, allowing for excellent airflow. With a shorter depth, the front top fan provides more direct airflow to the CPU without any pressure leaks. Additionally, the motherboard position is offset, ensuring that the two bottom fans are placed directly under the GPU for optimal cooling efficiency.
- Unique PSU Installation – The LANCOOL 207 PSU is positioned at the front of the case using an included PSU adapter cable. The installation orientation of the PSU has been adjusted to have the connector ports face outwards, making cable plugging easier. Cable management has been improved by moving it towards the front of the case, reducing its width and enhancing organization. Additionally, the case comes with three dual-layered fasteners for tidy and efficient cable management.
COMPACT POWERHOUSE
Though compact in size, the LANCOOL 207 offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm, all within the sleek 45.5L chassis.
SPACE-SAVING INNOVATIVE LAYOUT
The LANCOOL 207’s unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.
The LANCOOL 207 supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards.
EASY ACCESS FRONT-MOUNTED PSU
The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.
The LANCOOL 207 offers the PSU mounting with the fan oriented either upward or downward. Reference as LIAN LI Edge PSU mounting with the fans oriented upward.
Note: The PSU must have mounting holes for installation with the fan facing upward.
SUPERIOR COOLING PERFORMANCE
Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 comes pre-installed with four high-performance fans for superior out-of-box cooling.
The PPLP Lab testing shows the Lancool 207 is in the top-tier of their ranking, which deliver outstanding thermal performance.This earned it the Level-S Chassis Performance award for exceptional thermal management.
PPLP real-world PC test:
- Test Platform:
- CPU: Intel i9-13900K (Lock 230W)
- MB: MSI MPG B760M EDGE TI WIFI
- Cooler: PC Cooler RZ620 BK
- GPU: ASUS ROG Strix RTX 3080 12G (Max Load 390W TGP)
Included Four High Performance Fans
Two thick ARGB performance fans provide excellent cooling and stunning light effects with the infinity mirror at the center.
- Size: 140x140x30mm
- Speed: 450 ~ 1900 RPM
- Airflow: 109.3 CFM
- Static Pressure: 3.3 mmH20
- Noise: 34.86 dBA
Two 11-blade high airflow fans at the bottom deliver direct airflow to the GPU.
- Size: 120x120x25mm
- Speed: 500 ~ 1950 RPM
- Airflow: 71.1 CFM
- Static Pressure: 1.99 mmH20
- Noise: 30.81 dBA
360mm Radiator Compatibility
The top of the case supports a 360mm push-pull radiator configuration thanks to the offset motherboard tray design.
LARGE ANTI-SAG GPU SUPPORT
The LANCOOL 207 accommodates a GPU up to 375mm long and includes an adjustable anti-sag bracket, ensuring the GPU remains perfectly aligned.
SEAMLESS CONNECTIVITY
The LANCOOL 207’s top-mounted I/O panel offers easy access to essential ports.
OPTIONAL ACCESSORIES
Vertical GPU Kit – VG4-4-V2X / VG4-4-V2W
The LIAN LI universal vertical GPU bracket can be installed with no need to remove the bottom fans, ensuring enhanced airflow. The included rubber pad can be used to prevent the GPU from sagging.
Front Dust Filter – LAN207-1X / LAN207-1W
For next level dust prevention, a front panel dust filter is available as an optional accessory. It fits seamlessly behind the front fan, providing an extra layer of protection.
| Product Name | LANCOOL 207 |
| Model | LAN207RW White |
| Color | White |
| Dimension | (D) 455.6mm x (W) 219mm x (H) 456mm |
| Material | Steel 4.0mm Tempered Glass |
| Motherboard Support | Standard ATX ( Width Max 244mm ) /Micro-ATX/Mini-ITX |
| PSU Support | ATX (Under 160mm) |
| Fan Support | Front: 140mm x 2 Top: 120mm x 3 or 140mm x 2 Above PSU Shroud: 120mm x 2 Rear: 120mm x 1 |
| Included fan | Front: 2 x 140mm ARGB fan (450~1900 RPM / DC 12V, 0.4A / LED 5V, 0.7A / 109.3 CMF / 3.3 mm-H2O / 34.86 dB-A) Above PSU Shroud : 2 x 120mm PWM fan (500~1950 RPM / DC 12V, 0.28A / 71.1 CMF / 1.99 mm-H2O / 30.81 dB-A) |
| Radiator Support | Top: 360/280/240mm |
| Drive Support | 2 × 3.5″ HDD or 2.5″ SSD |
| GPU Length Clearance | 375mm (Max.) |
| CPU Height Clearance | 180mm (Max.) |
| Expansion Slots | 7 |
| I/O Ports | USB 3.0 × 2 USB 3.1 TYPE-C × 1 Audio × 1 Power Button × 1 |
| Dust Filter | 1 x Bottom |
| Warranty | 1 Year |
| Note* | Price, feature and specifications are subject to change without notice |
