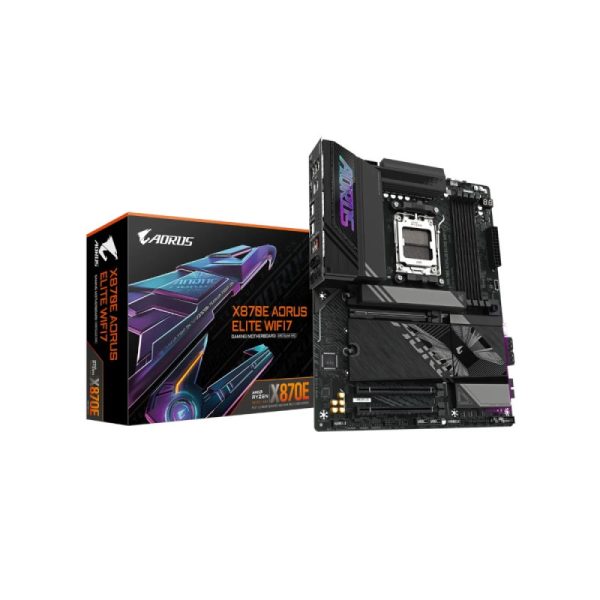

Gigabyte X870E AORUS ELITE WIFI7 AM5 ATX DDR5 Motherboard
- “AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
- DDR5 Compatible: 4*DIMMs with AMD EXPO Support
- Power Design: 16+2+2
- Thermals: VRM and M.2 Thermal Guard
- Connectivity: PCIe 5.0, 4x M.2 Slots, Dual USB4, Front and Rear USB-C, Sensor Panel Link
Original price was: ₹52,599.00.₹26,699.00Current price is: ₹26,699.00.
Gigabyte X870E AORUS ELITE WIFI7 AM5 ATX DDR5 Motherboard
Feature
Key Features
- Gigabyte AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
OVERVIEW
Performance
Thermal
Connectivity
DIY Friendly
AORUS AI SNATCH
AORUS AI SNATCH
Bullet Point
Unleash Ultimate Performance with One-Click Activation.
Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance DDR5 speeds with a single click.
Real time Analyze
OC accuracy UP
EZ to Pro
- Enhanced Computing Power
- Fast AI Performance
- EZ to Peak
- Safe OC
- Less Power Usage
DDR5 Zenith-Memory
Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Top-tier Compatibility
DDR5 Overclocking Up to 8000 MT/s
* Memory speeds vary. Check QVL for details. Features differ by model.
Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.
AMD EXPO™ Settings
Optimize memory with AMD’s user-friendly profiles.
AMD EXPO™ User Profile
Boost Performance: Get the most out of your system’s memory.
Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.
Shielded Memory Routing
Daisy-Chained Routing
6-Layer Server-Grade PCB
Sturdy VRM Design
Steady Power
Better Play AORUS Series, steady power keeps your gaming smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
16 VCORE Phases DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.
2 SOC Phases DrMOS 60A
Optimized for integrated GPU performance and memory management within the CPU.
2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
* 8+8 phases parallel power design
Cooling
Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
VRM Thermal Armor Fins-Array
These solid heatsinks are forged to keep your system cool.
4x more surface area
M.2 Thermal Guard L
with M.2 Thermal Guard Backplate
* Test results are for reference only and may vary in different circumstances.
6x optimized heat dissipation
M.2 Thermal Guard Ext.
with M.2 Thermal Guard Backplate
4x M.2 slots coverage
Small Vents, Big Cooling Power
* Test results are for reference only and may vary in different circumstances.
Up To 7°C lower temperature
Smart Fan 6
Cool. Quiet. Customized.
Easy & Friendly
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
M.2 EZ-Latch Click
screwless installation for M.2 heatsink
M.2 EZ-Latch Plus
screwless installation for M.2 SSDs
PCIe EZ-Latch Plus
Easy ejection with single click for graphics cards
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
Fast-Access Controls
Handy, Revert, Refresh
EZ Debug Zone
Q-FLASH Auto Scan
Sensor Panel Link
PCB Mastery
Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.
6L Server-grade PCB
Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.
2X Copper Enhancement
Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.
56% Lower Dissipation Factor
Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing new level in high-speed electronic engineering.
All-round Connectivity
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
All-round Connectivity
- Dual Native 40Gbps USB4
- Wi-Fi 7
- Directional Ultra-high Gain Antenna
- 2.5GbE LAN
Dual 40Gbps USB4 with DP-Alt
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
Conquer gaming realms with unparalleled audio
True High-Fidelity Music
Audiophile Grade Capacitors
Ultra Durable™
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.
PCIe UD Slot X
The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.
10X load-bearing capacity
integrated, single-piece design anchored to an exclusive backplate
Inner Lining Rubber Strip
Safeguards your graphics card’s PCB against potential damage
Zinc Alloy
Provides effective EMI shielding for high-frequency signals
M.2 UD Slot PG5
employs a unibody, stainless-steel shield design, reinforcing M.2 slots and optimizing signal integrity.
- 1.3X greater strength in X-axis stress tests
- 1.5X greater strength in Y-axis stress tests
- Employs SMD technology to minimize signal degradation
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Ultra Durable PCIe Armor
Features a metal reinforcement plate for the PCIe x16 slot, enhancing stability and durability to support large graphics cards.
Tailored Computing
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
- Multi-Theme
- Multiple BIOS skin with newly exclusive grayscale mode
- AIO Fan Control
- Adjust AIO fan speed in the BIOS
HWiNFO
Exclusive Partnership
GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalize the RGB illumination on your motherboard and connected peripherals.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
| Brand | GIGABYTE |
|---|---|
| Model | X870E AORUS ELITE WIFI7 |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 5200 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
|---|---|
| PCI Express x4 | Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| SATA RAID | 0/1/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |
| Back I/O Ports | 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port 2 x USB4 USB Type-C ports (DisplayPort) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x SMA antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| BIOS Feature | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|---|
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Windows 11 | Supported |
| Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support Smart Backup |
|---|
Q & A
Ask a question
Your question will be answered by a store representative or other customers.
Thank you for the question!
Your question has been received and will be answered soon. Please do not submit the same question again.
Error
An error occurred when saving your question. Please report it to the website administrator. Additional information:
Add an answer
Thank you for the answer!
Your answer has been received and will be published soon. Please do not submit the same answer again.
Error
An error occurred when saving your answer. Please report it to the website administrator. Additional information:
Related Products
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: Intel® WiFi 6, 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
- AI noise-cancelling microphone: Provides crystal-clear in-game voice communication
- Supports DDR4 Memory, up to 4133(OC) MHz
- Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad and 7W/mK pad, and M.2 Shield Frozr are built for high performance system and non-stop works
- Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
- Powered by 3rd generation AMD Ryzen 9, Ryzen7, Ryzen 5 AM4 to maximize connectivity and speed with dual M.2, PCIe 4.0, USB 3.2 Gen2 and up to 128GB of DDR4 (4400MHz).
- On-board Wi-Fi 6 (802.11ax) with MU-MIMO support which provides a great networking performance and online gaming experience.
- With 3rd Gen Ryzen processors, this motherboard featurs the latest Lightning Gen 4 solution on both PCI-E and M.2 slot, which allow for faster data transfer on graphics cards, storage devices and networking devices.
- Addressable LED Ready with Mystic Light Extension provides a JRAINBOW pinheader for complete function to connect to addressable RGB strips and control the RGB light all around the system.
- AM4 socket: B550-F Ready for 3rd Gen AMD Ryzen™ processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: B550-F On-board WiFi 6 (802.11ax) and Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: B550-F Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: B550-F AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
- AM4 socket: ROG Strix B550-F Ready for 3rd Gen AMD Ryzen™ processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: ROG Strix B550-F Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: ROG Strix B550-F AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases IR Digital VRM Solution with PowIRstage
- Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
- AMD AM4 socket: B550M-A Ready for 3rd Gen AMD Ryzen™ Processors
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
- Ultrafast connectivity: Dual M.2, PCIe 4.0, Intel® WiFi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
- Aura Sync RGB: B550M-A Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 8+2 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- HDMI, DVI-D Ports for Multiple Display
- Integrated I/O Shield of Ultra Durable™ Design
- Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- CEC 2019 Ready, Save Power with a Simple Click
- Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 16 Phases Digital VRM Solution with 70A Power Stage
- Advanced Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and Thermal Baseplate
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- HDMI, DVI-D Ports for Multiple Display
- Integrated I/O Shield of Ultra Durable™ Design
- Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards
- ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
- RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- CEC 2019 Ready, Save Power with a Single Click
Reviews
There are no reviews yet
