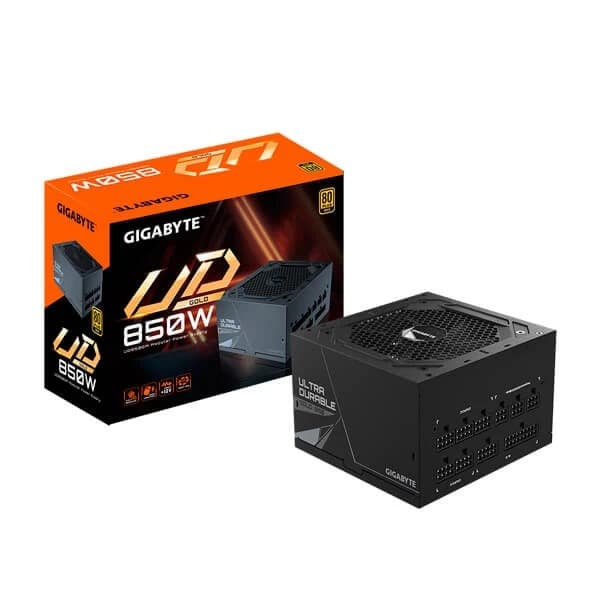

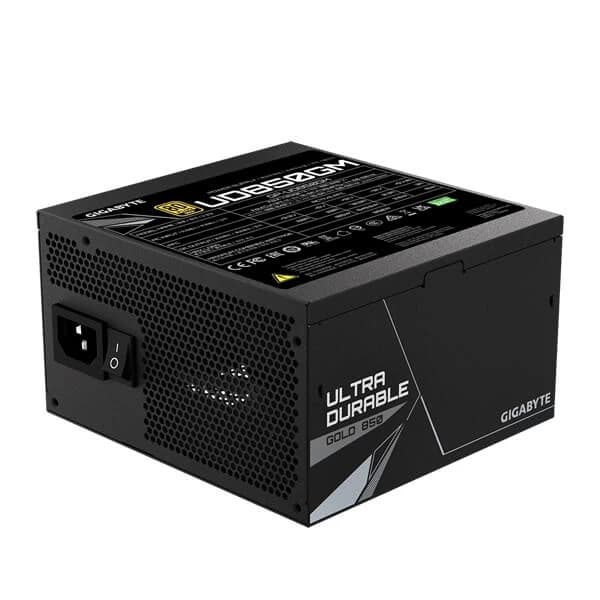

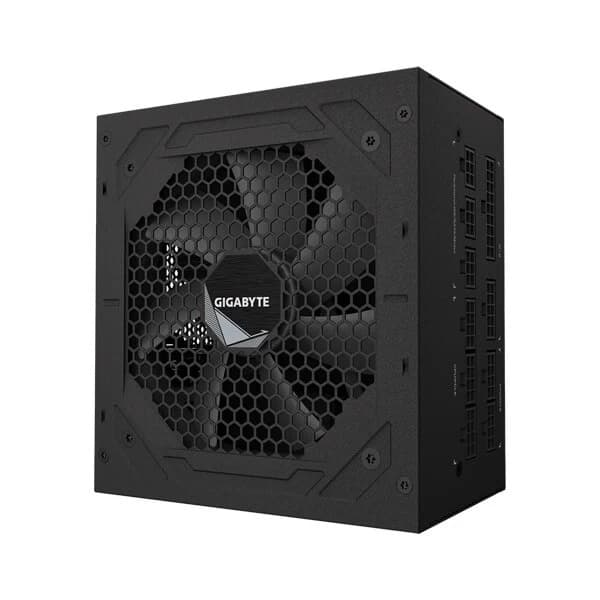

Gigabyte UD850GM 850 Watt 80 Plus Gold SMPS
- Ultra Durable
– Main Japanese capacitors
– Enhanced thermal solution
– 120mm smart hydraulic bearing (HYB) fan
– OVP/OPP/SCP/UVP/OCP/OTP protection - 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact design
- 5 years warranty (Adjusted according to different regions)
Original price was: ₹12,000.00.₹8,399.00Current price is: ₹8,399.00.
UD850GM features with 80 PLUS Gold certified, Fully modular design, Main Japanese capacitors, 120mm smart hydraulic bearing (HYB) fan, Enhanced thermal solution
Features:
- Ultra Durable
– Main Japanese capacitors
– Enhanced thermal solution
– 120mm smart hydraulic bearing (HYB) fan
– OVP/OPP/SCP/UVP/OCP/OTP protection - 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact design
- 5 years warranty (Adjusted according to different regions)
GIGABYTE Ultra Durable Power Supply
Ultra Durable and built to last
GIGABYTE UD Series Power Supplies introduce a variety of high-quality materials and top-notch design. Enjoy unrivaled performance with Japanese capacitors, and a +12V Single Rail which will provide exceptional power output and stability for your system.
- Compared to the standard thermal solution, we have enlarged the heatsink by about 200%.
- The heat dissipation performance is increased by more than 10%.
- OVP/OPP/SCP/UVP/OCP/OTP protection
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

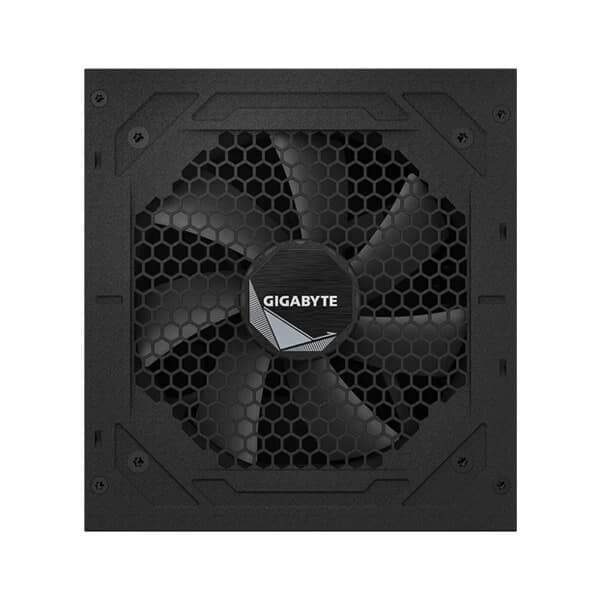

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

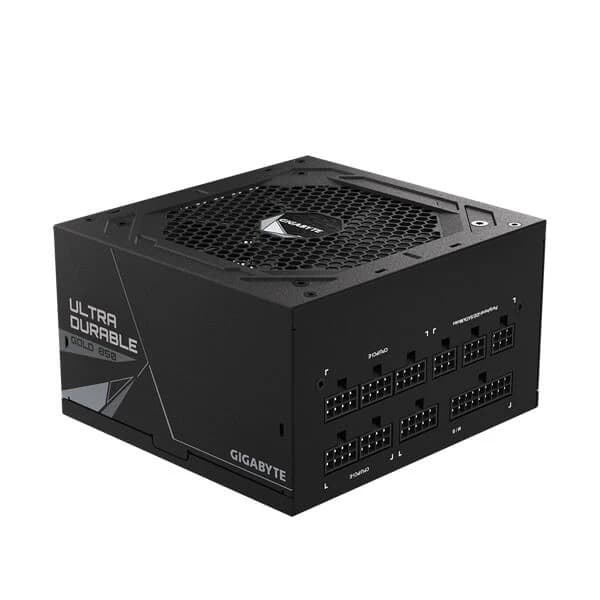

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
|
|
|
|
|---|---|---|
80 PLUS Gold Certified80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The improved power efficiency leads to less power waste, lower heat and a quieter fan. |
Compact DesignGIGABYTE has reduced the length of the power supply, so it can be easily installed in any chassis without space constraints. |
High Quality Japanese CapacitorsThe main capacitors use high quality Japanese capacitors to produce the most efficient performance and to ensure reliability. |

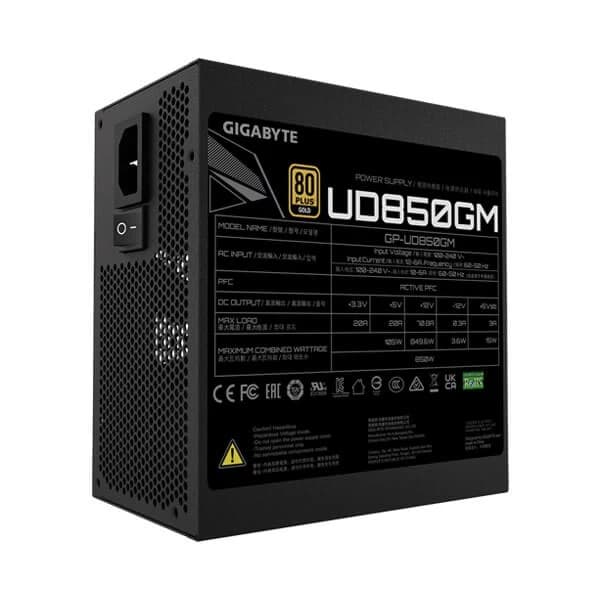

| Model | GP-UD850GM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Wattage | |
| Modular | |
| PSU Certification | |
| Warranty | |
| EAN / UPC Code |
