Original price was: ₹19,499.00.₹10,999.00Current price is: ₹10,999.00.
Out of stock
Email when stock available

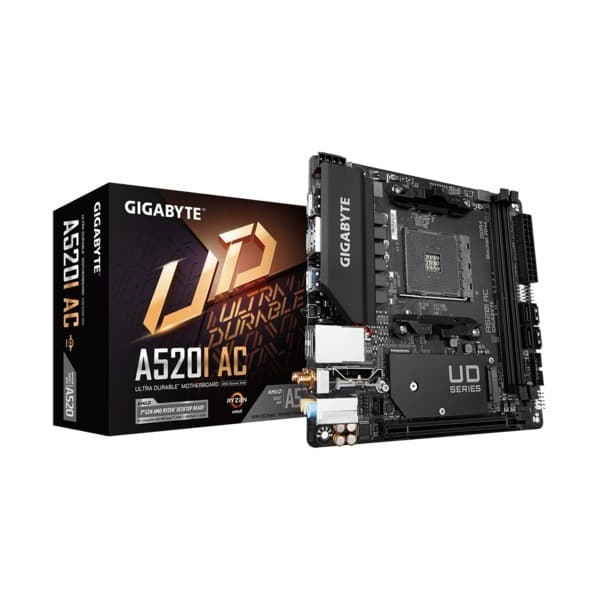

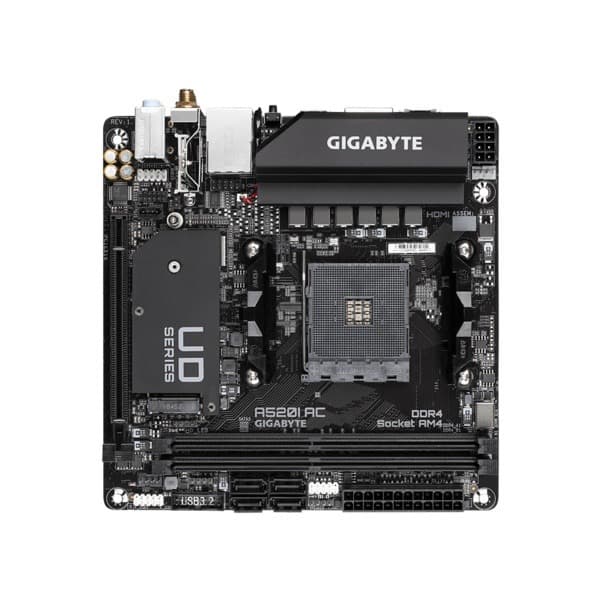

Gigabyte A520I AC Motherboard
Features :
AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Direct 6 Phases Digital VRM Solution with 55A DrMOS
- Ultra-Fast NVMe PCIe 3.0 x4 M.2
- Onboard Intel® Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna
- GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
- DisplayPort, Dual HDMI for for Multiple Display
- RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
| CPU | |
| * Socket | AMD AM4 |
| * Supported Processors | AMD Ryzen™ 5000 Series, AMD Ryzen™ 3rd Gen, AMD Ryzen™ 3rd Gen with Radeon™ Graphics Processors |
| Chipset | AMD A520 |
| Memory | |
| * Slots | 2 x DDR4 DIMM |
| * Capacity | Up to 64GB (32GB single DIMM) |
| * Supported Speeds | |
| * Ryzen™ 5000 series/ 3rd Gen Ryzen™ Processors: DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz | |
| * 3rd Gen Ryzen™ with Radeon™ Graphics Processors: DDR4 5300(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz | |
| * Memory Type | Supports ECC Un-buffered DIMM, non-ECC Un-buffered DIMM, XMP |
| Onboard Graphics (3rd Gen Ryzen™ with Radeon™ Graphics Processors only) | |
| * Ports | 1 x DisplayPort, 2 x HDMI |
| * Max Resolution | DisplayPort: 5120×2880@60 Hz, HDMI: 4096×2160@60 Hz |
| * Displays Supported | Up to 3 |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| Network | |
| * LAN | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| * Wi-Fi | Intel® Wi-Fi AC 3168 (Wi-Fi 802.11a/b/g/n/ac, 2.4/5 GHz Dual-Band), Bluetooth 4.2 |
| Expansion Slots | 1 x PCI Express x16 slot (PCIe 3.0 x16) |
| Storage Interface | |
| * M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| * SATA | 4 x SATA 6Gb/s connectors (RAID 0, 1, 10) |
| USB | |
| * Back Panel | 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| * Internal Headers | 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O Connectors | Numerous connectors for power, fans, LEDs, USB, TPM, etc. |

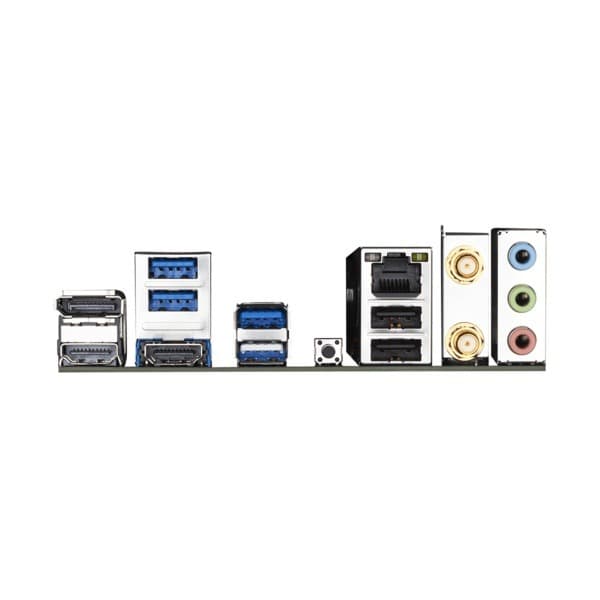

| Back Panel Connectors | DisplayPort, 2 x HDMI, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, Q-Flash Plus button, RJ-45 port, 2 x SMA antenna connectors, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection, overheating warning, fan fail warning, fan speed control |
| BIOS | 128 Mbit flash, AMI UEFI BIOS |
| Unique Features | Support for APP Center, @BIOS, EasyTune, Fast Boot, Game Boost, |
| Weight | 1 kg |
|---|---|
| Product Type | |
| Brands | |
| Motherboard Size | |
| Motherboard Series | |
| Chipset | |
| Socket | |
| EAN / UPC Code | |
| Warranty |
