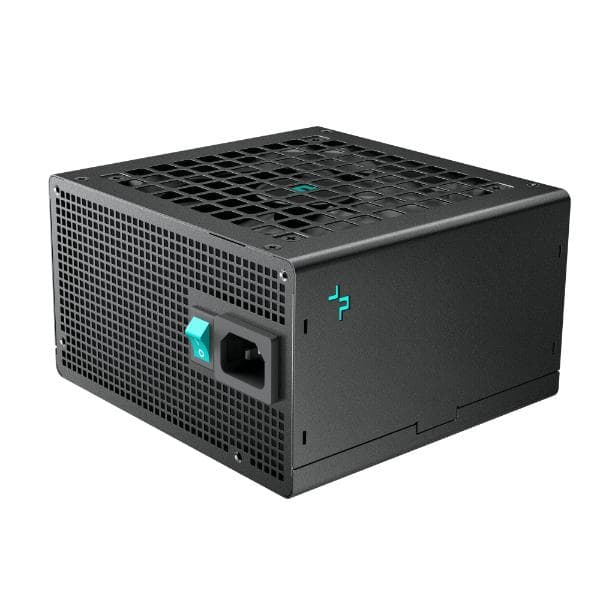

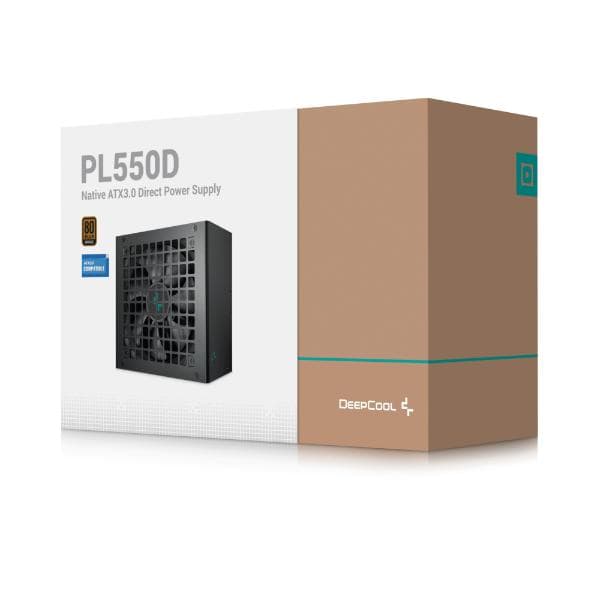

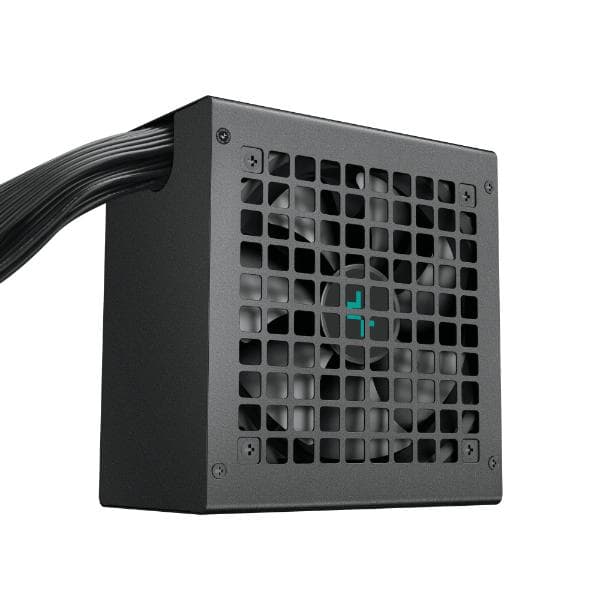

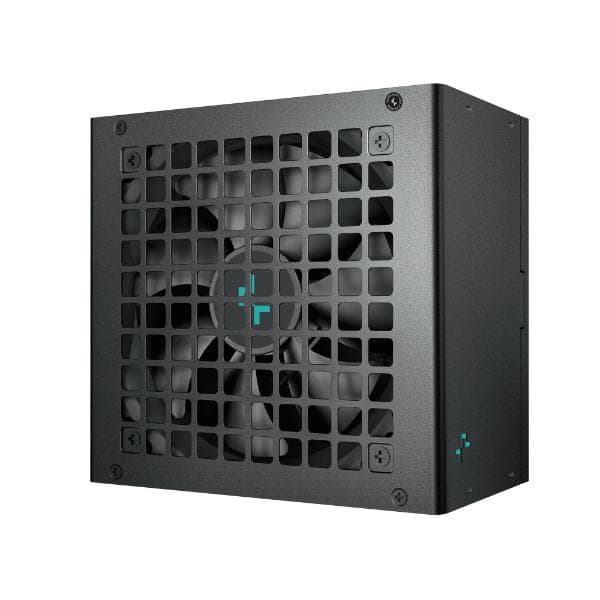

Deepcool PL550D ATX 3.0 550W Power Supply 80 Plus Bronze
2 sold in last 17 hours
Hurry! Over 7 people have this in their carts
- Deepcool PL 550D
- ATX 3.0 Compatibility
- 550W
- 80+ Plus Bronze Cert.
- 12VHPWR
- 5 Years Warranty
Estimated Delivery: Jul 01 – Jul 05
... people are viewing this right now
₹3,829.00
DeepCool PL550D 80 PLUS Bronze Non-Modular Power Supply, 550W Power, ATX12V V3.0, Hydro Bearing 120mm Fan, Chinese Electrolytic Capacitors, Active PFC + DC to DC, Black | R-PL550D-FC0B-IN V2
PL550D
Native ATX3.0 Power Supply
NATIVE ATX3.0
Based on INTEL’s latest ATX3.0 standard, the PL550D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.
Total Power Excursion
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
12VHPWR
CABLE
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
Surge & Inrush Protection
No Load Operation
EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 2
X1
PCI-E(6+2)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
12VHPWR(16Pin) x 1
X1
SATA x 3 + 4Pin Peripheral x 1
X2
| Type | ATX12V V3.0 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Bronze |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC+DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/ RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Weight | 1 kg |
|---|---|
| Brands | |
| color | |
| Modular | |
| Product Type | |
| PSU Certification | |
| Warranty | |
| Wattage | |
| EAN / UPC Code |
