Original price was: ₹13,499.00.₹5,325.00Current price is: ₹5,325.00.
Out of stock
Email when stock available

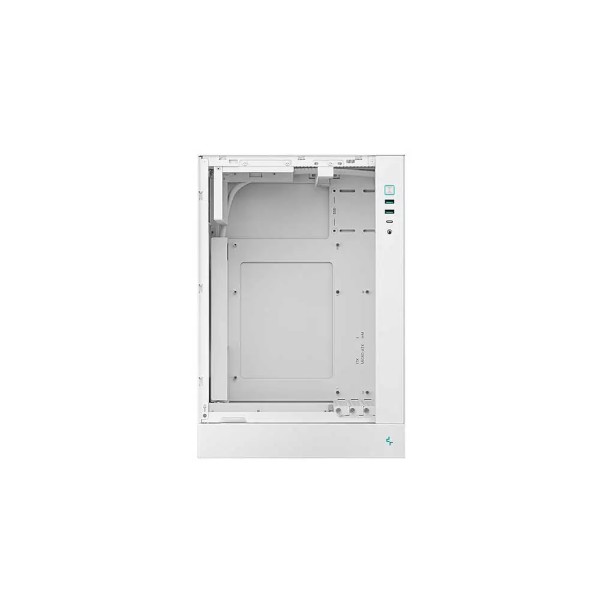

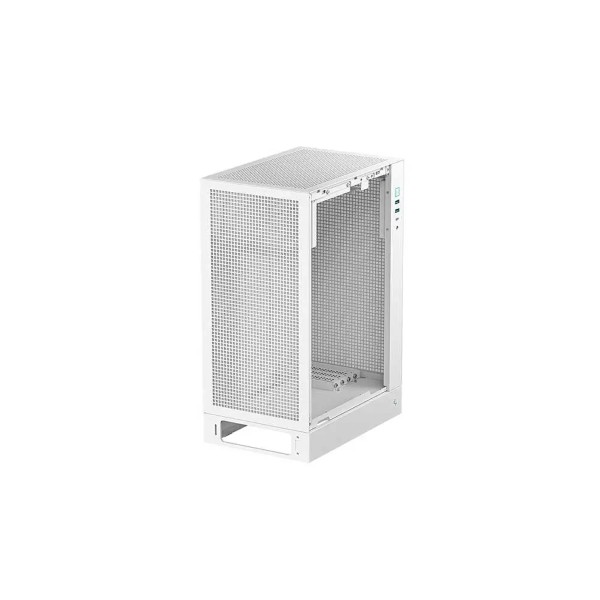

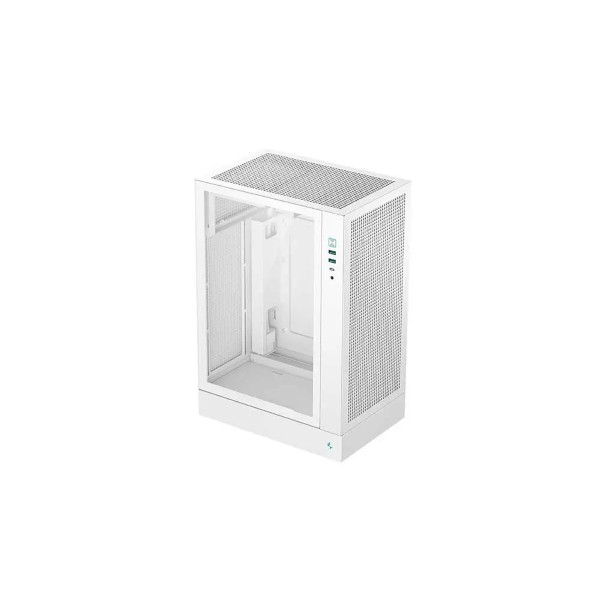

DeepCool CH170 Plus White Mini Tower Cabinet
The CH170 plus WH is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.
BUILT TO BREATH
Mesh panels across multiple sides boost airflow to keep your system cool, while a tempered glass panel highlights your components.
ROOM FOR BIGGER GPU
No matter your PSU choice, the CH170 PLUS WH supports GPUs up to 342mm in length (328mm with top fan installed), with widths up to 138mm and thicknesses up to 75mm. Cards can be directly inserted into the motherboard.
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 PLUS WH can support any of them up to 140mm.
COOLING THAT ADAPTS
From liquid to air, the CH170 PLUS WH supports a 240mm side radiator or up to four 120mm fans, with room for air coolers up to 164mm tall
CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on four sides keep maintenance simple and your build clean.
| Product Dimensions | 290mm*195mm*424.5mm(L×W×H) |
| Net Weight | 4.4Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5″ Drive Bays | 1 |
| 2.5″ Drive Bays | 1+1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top:1×120mm/1×140mm（with SFX PSU） Side:2×120mm Bottom: 1×120mm |
| Radiator Support | Front: NA Side:120/240mm Bottom: 120mm |
| CPU Cooler Height Limit | 164mm |
| GPU Length Limit | 342mm |
| Power Supply Type | ATX PS2（maximum length: 140mm)/SFX/SFX-L |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 1 kg |
|---|---|
| Brands | |
| Case Form Factor | |
| color | |
| Motherboard Size | |
| Warranty |
