Corsair SF450 80 Plus Platinum SMPS
- Compact sfx form-factor: Ready to power the world’s best small form factor pcs
- 80 plus platinum certified: For ultra-high efficiency operation
- Zero rpm fan mode: For near-silent operation at low to medium loads
- Individually sleeved, fully modular cables: Make building a great looking pc easy
- 92mm cooling fan: Delivers low-noise operation even at demanding loads
Corsair SF450 80 Platinum Rated, Small Form Factor Fully Modular Power Supply,The SF Series Pushes high-density design that delivers high efficiency in a SFF form factor without compromising realiability

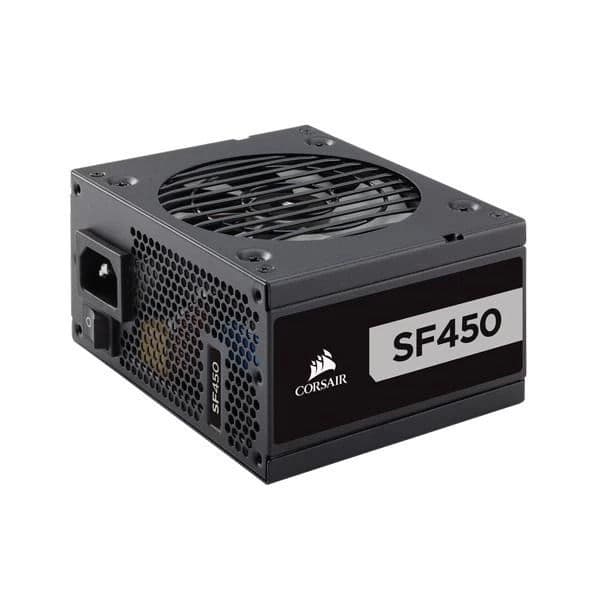

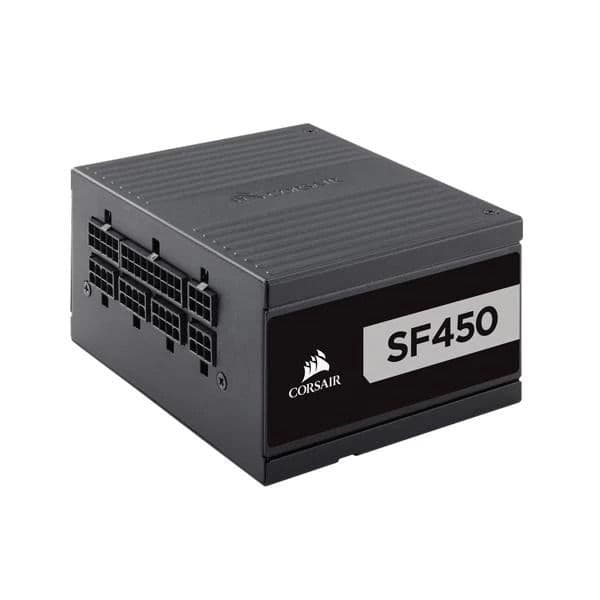

Compact SFX Form-Factor
The SF450 PLATINUM Series’ high-density design delivers high efficiency and low noise in a compact SFX form factor without compromising continuous power, reliability, or quality.

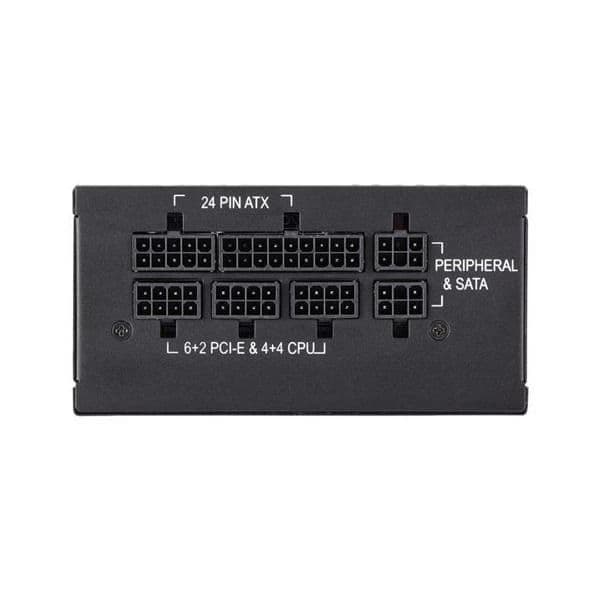

Individually Sleeved, Fully Modular Cables
SF450 PLATINUM Series power supplies come equipped with premium individually sleeved cables featuring a flexible paracord sleeve, ready to become part of your new high-end PC. The individually sleeved cables also make routing and cable management a breeze, with a lower profile and added flexibility over flat or sleeved cable kits.
80 PLUS PLATINUM CERTIFIED
SF450 PLATINUM power supplies deliver power with over 92% efficiency to keep energy consumption, noise, temperatures, and your power bill low.
100% ALL JAPANESE 105°C CAPACITORS
By using high-end electrolytic capacitors, SF450 PLATINUM Series provides the unwavering power and long-term reliability you’ve come to expect from a CORSAIR power supply
ZERO RPM FAN MODE
At low and medium loads the SF450 PLATINUM’s cooling fan doesn’t spin until you need it, for near-silent operation.

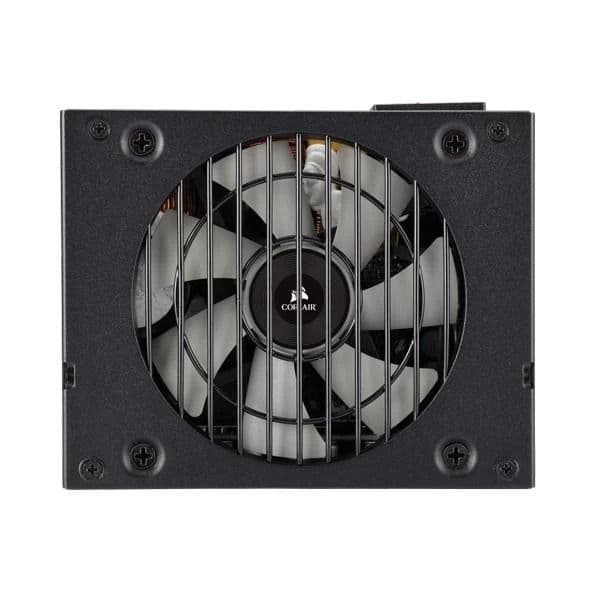

92mm Cooling Fan
The SF PLATINUM Series upgrades the SFX-standard 80mm fan to 92mm, reducing noise and improving performance at demanding loads.
INNOVATIVE INTERNAL DESIGN
SF PLATINUM Series power supplies are built around an innovative new internal design which swaps wires for soldered PCBs, delivering superb performance, incredibly stable voltages and ultra-low ripple and electrical noise.
SFX-to-ATX Bracket Included
SF PLATINUM Series power supplies include an SFX-to-ATX power supply adapter bracket that allows installation into any ATX compatible case. The new bracket offsets the mounting location, allowing for more space inside any standard ATX chassis, so you can tuck your excess cables out of the airflow path.
CORSAIR offers a seven-year warranty on all SF PLATINUM Series power supplies, your guarantee of reliable operation that will last across several system builds. If you run into any problems during the installation or use of an SF PLATINUM Series power supply, CORSAIR global customer support is ready to help.
|Adjustable Single/Multi 12V Rail||No|
|Continuous output rated temperature C||50°C|
|Continuous power W||450 Watts|
|Fan bearing technology||Rifle Bearing|
|Fan size mm||92mm|
|MTBF hours||100,000 hours|
|80 PLUS Efficiency||Platinum|
|PSU Form Factor||SFX|
|Zero RPM Mode||Yes|
|Cable Type||Premium Individually Sleeved, All Black|
|Dimensions||100mm x 63mm x 125mm|
|Intel C6C7 sleep state compatible||Yes|
|Modern Standby Compatible||No|
|Protection Circuits||OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power)|
|Note||***Features, Price and Specifications are subject to change without notice.|
