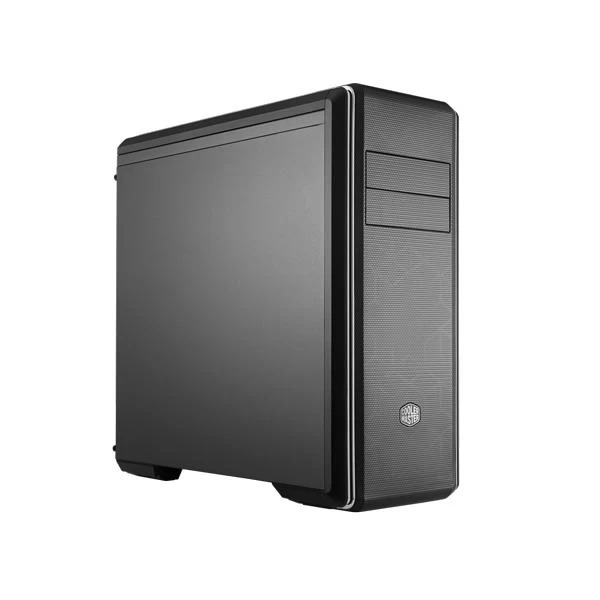

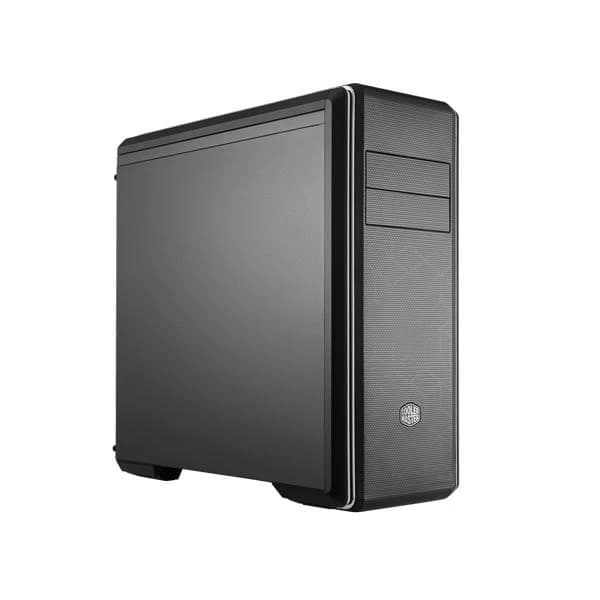

Cooler Master MasterBox CM694 Cabinet (Black)
17 sold in last 13 hours
Hurry! Over 6 people have this in their carts
- Curved Mesh
- Modular Drive Cages
- Graphics Card Stabilizer
- Rich Connectivity (I/O Panel)
Estimated Delivery: Nov 25 – Nov 29
... people are viewing this right now
Original price was: ₹15,299.00.₹10,889.00Current price is: ₹10,889.00.
Cooler Master Masterbox Cm694 Mid Tower Eatx Computer Cabinet Mesh Front Modular HDD Cages with 3 120Mm Fans Mcb-Cm694-Kn5N-S00, Black
Feature
- Mid Tower ( 493mm x 224mm x 506mm) Cabinet using Steel and Plastic
- 7 PCI Slots, 3 Drive Cages (Total of 6 HDDs), 8 SSDs (2 + 6 in Cages)
- 2 x USB 3.0 ports, 1 x USB 3.1 (Gen 2) Type-C port, and 1 x 4 pole Headset jack
- 2 x 120mm Fans Pre-installed at front, 1 x 120mm fan Pre-installed at rear, 360 Radiator support at top
- Graphics Card Clearance of 280mm (with stabilizer + drive cage), 350mm with stabilizer, CPU Cooler Clearance of 171mm
- Warranty: 1 Year from Date of Purchase (Invoice Copy required)

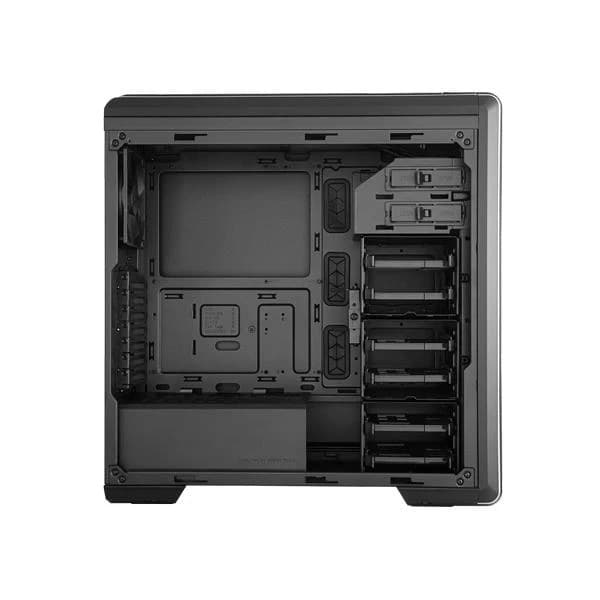

MODULAR DRIVE CAGES
3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.
COOLING SUPPORT
RADIATORS
| Top: | 120 / 140 / 240 / 280 / 360mm (mount fans above bracket for maximum compatibility) |
| Front: | 120* / 140* / 240* / 280** / 360mm* *remove 2 out of 3 drive cage **remove 2 out of 3 drive cages & ODD |
| Rear: | 120mm |
COOLING SUPPORT
FANS
| Top: | 120mm x 3 / 140mm x 2 |
| Front: | 120mm x 3 / 140mm x 2 (without ODD) 120mm x 2 / 140mm x 2 (with ODD) |
| Rear: | 120mm x 1 |
MASSIVE STORAGE SUPPORT
Simultaneous support for 6 x 3.5” HDDs
and 8 x 2.5” SSDs ensure substantial
storage capabilities.
| Model Number | MCB-CM694-KN5N-S00 |
| Series | MasterBox Series |
| Size | Mid Tower |
| Materials | Steel, Plastic, Mesh |
| Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX |
| Expansion Slots | 7 |
| 5.25" Drive Bays | 2 |
| 2.5" / 3.5" Drive Bays (combo) | 6 (3x drive cages) |
| 2.5" Drive Bays | 8 (2 + 6 combo) |
| I/O Panel | 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic) |
| Pre-installed Fans - Front | 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector) |
| Pre-installed Fans - Rear | 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector) |
| Fan Support - Front | 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD) |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Front | 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage) |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility) |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 171mm |
| Clearance - GFX | 410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage) |
| Clearance - PSU | 276mm, 160mm (drive cage rear position) |
| Power Supply Support | Bottom mount, ATX PS2 |
| Dust Filters | Top, Front, Bottom |
| Cable Routing | 27-29mm |
| Warranty | 2 Years |
| Note | ***Features,Price and Specifications are subject to change without notice. |
| Weight | 2 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Motherboard Size | |
| Radiator Size | |
| Side Panel | |
| Warranty | |
| EAN / UPC Code |
