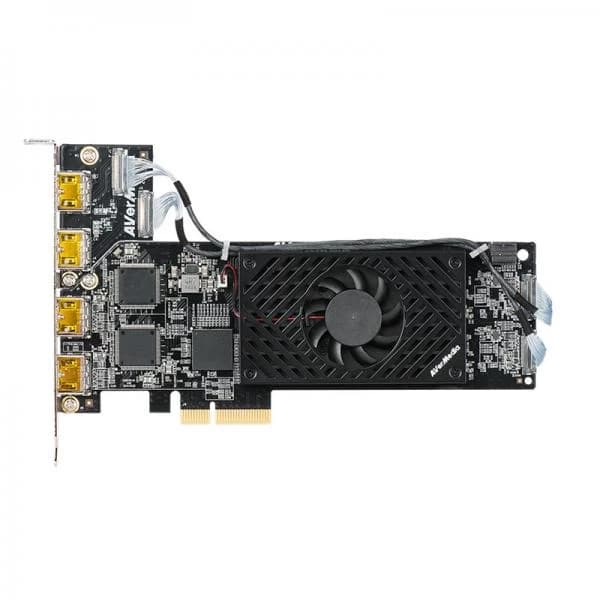

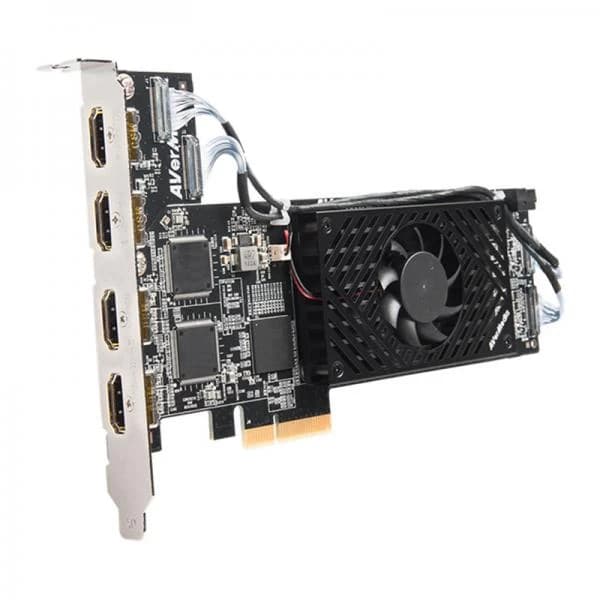

AVerMedia CL314H1 1080p60 4-Channel PCIe Capture Card
11 sold in last 6 hours
Hurry! Over 4 people have this in their carts
- Maximum input resolution up to 4096×2160/30fps
- Maximum capturing and recording up to 2-ch 4096×2160/30fps
- Low-profile PCI Express form factor
- Reduce the capture latency to shorten the time required for a full frame of image to be captured
- Support hardware up/down scaling, de-interlacing, and color space convert
- Support 10-bit color depth
Estimated Delivery: Nov 08 – Nov 12
... people are viewing this right now
Original price was: ₹89,000.00.₹65,499.00Current price is: ₹65,499.00.
Hardware scaling, de-interlacing, and color space conversion
With the AVerMedia Video Engine Technology inside, it can perform various video processing tasks such as frame rate conversion, hardware up/down scaling, de-interlacing, and so on without consuming the computing power of the target platform.
Improved Quality and Reliability
With the powerful FPGA-based design, the CL314H1 is able to achieve a better performance and provide more improved capture quality and reliability.
Low Profile Form Factor
Suitable for small-footprint embedded platform, the compact low profile form factor design provides a better use of internal space and reduces cable routing. It increases the use of interior space for a more flexible heat spreading solution.
Hardware Video Processing
CL314H1 has built-in AVerMedia Video Engine technology which implements most useful video enhancing features to significantly reduce the efforts of CPU and the software development. In other words, this can help our clients to achieve the better cost saving of the hardware platform and the development resource.
Support up to 4:4:4 10-bit RGB and YUV
The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.
Main/Daughter Board Design
Our CL314H1 low-profile ready capture card come with a smaller bracket as well, so you can choose to install it on a regular or low-profile system.
SPECIFICATIONS
| Host Interface | PCIe Gen2 x 4 |
| Audio Interface | HDMI embedded PCM |
| Audio Format | Embedded HDMI, PCM |
| udio Sampling Rate | 32/44.1/48KHz |
| Connector Type | HDMI Type A |
| Input Interface | HDMI*4 (HDMI 1.4a) |
| Video Format | YUV444: IYU2, AYUV, V410, Y410 YUV422: YUY2, YUYV, UYVY, V210, Y210 YUV420: I420, NV12, YV12 RGB: RGB565, RGB555, RGB24, RGB32, ARGB |
| Color Depth | 8 bit/10bit |
| Channel No. | 4 channels |
| Max. Input Resolution | 4096x2160 30fps |
| Max. Recording Resolution | 4096x2160 30fps (2ch) 1920x1080 60fps (4ch) |
| Encoding Mode | Software Encoding |
| Multi-Card Support | Yes |
| Supported OS | Windows 7, 8.1, 10 (32/64-Bit) Linux Kernel 2.6.14 and above (32/64-bit) |
| Form Factor | PCIe Low Profile |
| Dimension (L x W) | 180 x 68.78 mm |
| Power Consumption | 15W< |
| Operating Temperature | 0°C ~ 50°C |
| Operating Humidity | 5% - 80% Relative Humidity |
| Safety Certification | FCC / CE |
| Warranty | 1 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Brands | |
|---|---|
| Warranty | |
| EAN / UPC Code | |
| Resolution | |
| Connection Type |
