Audio Technica M3M

Name: Buy Audio Technica M3M - Computech Store
Brand: Audio Technica
SKU: M3M
Price: 56799.00 INR
Availability: InStock

6 sold in last 6 hours

Hurry! Over 5 people have this in their carts

Brand:

Audio Technica

High-fidelity sound
Band M operates between 614.000 to 647.000MHz
Band L operates on frequencies between 575.000 to 608.000Mhz 1321 selectable UHF channels
Automatic frequency scanning
Up to 16 simultaneous systems per frequency band

Estimated Delivery: Thu, Jan 22 – Mon, Jan 26

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹73,000.00.Current price is: ₹56,799.00.

Description Specifications Additional information Reviews (0) Q & A

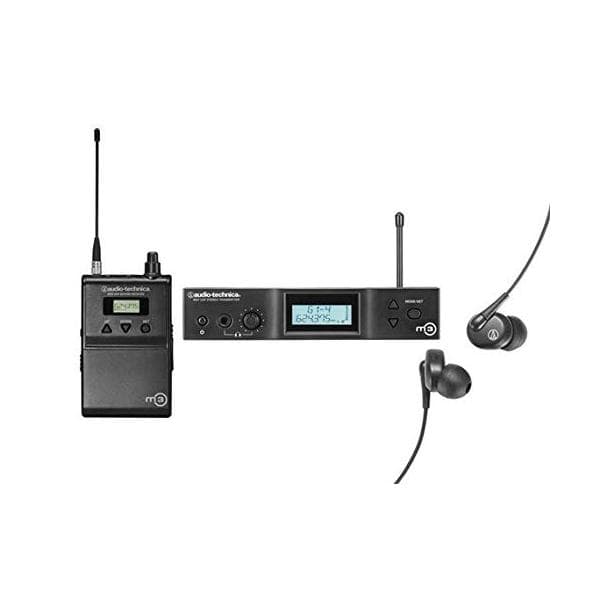

Audio Technica M3M

With Audio-Technica’s M3M Wireless In-ear Rig, you get your choice of 1321 UHF channels, and useful LCD info displays on both the transmitter and receiver for setting your personal preferences. You and other musicians on stage using the M3M rig will enjoy controlling the volume and mix of two separate signals via the controls on the M3R stereo body-pack receiver, ensuring that you can dial in the right sound and hear yourself accurately. While you can use up to 16 complete M3 systems at once on stage, you can actually use any number of M3R stereo receivers on the same frequency with one M3T stereo transmitter. An excellent, pro choice for live performance monitoring – hear yourself more clearly with Audio Technica’s M3M Wireless In-ear Rig!

Audio-Technica M3M

High-fidelity sound
Band M operates between 614.000 to 647.000MHz
Band L operates on frequencies between 575.000 to 608.000Mhz 1321 selectable UHF channels
Automatic frequency scanning
Up to 16 simultaneous systems per frequency band

Receiver
Operating Frequencies	Band L: 575.000 to 608.000 MHz, 1321 frequencies Band M: 614.000 to 647.000 MHz, 1321 frequencies Bande H1: 754.000 to 787.000 MHz, 1321 (nombre de fréquences) (Not all frequency bands available in all areas. Pl
Minimum Frequency Step	25 kHz
Modulation Mode	FM stereo
Maximum Deviation	±40 kHz
Frequency Response	60 Hz to 13 kHz (+/- 3 dB)
Operating Range	100 m (300'), typical (Open range environment with no interfering signals.)
Dynamic Range	90 dB (typical), A-weighted
Total Harmonic Distortion	<1% at (1 kHz, ±20 kHz Deviation)
Operating Temperature Range	-5° C (23° F) to +50° C (122° F) (Battery performance may be reduced at very low temperatures.)
Simultaneous Use	16 channels per band (maximum recommended)
Receiving System	Double conversion superheterodyne
Sensitivity	20 dBuV (at 60 dB S/N ratio, 50 ohms termination)
Headphone Output	3.5 mm TRS stereo phone jack, 65 mW (at 32 ohms)
Antenna Input	SMA-type, 50 ohms
Dimensions	70.0 mm (2.76") W x 25.0 mm (0.98") D x 110.0 mm (4.33") H
Weight	133g, without batteries
Accessories Included	EP3 earphone; flexible antenna
Battery Current/Life	8 hours (alkaline) Depending on battery type and use pattern
Battery Type	2 x 1.5V AA (not included)
Transmitter
Accessories Included	AC adapter (country dependant); rack mount adapters; flexible antenna
Antenna Connector	BNC, 50 ohms
Dimensions	210.0 mm (8.30") W x 132.0 mm (5.20") D x 44.0 mm (1.70") H
Headphone Output Connector	6.3 mm (1/4") TRS stereo phone jack
Headphone Output Power	120 mW at 32 ohms
Loop Output Connection	XLRM-type connector Pin 1: Ground Pin 2: Hot Pin 3: Cold
Input Connection	XLRF-type/6.3 mm stereo (1/4") combination connector Pin 1 and Sleeve: Ground Pin 2 and Tip: Hot Pin 3 and Ring: Cold
Maximum Input Level	XLRF-type/6.3 mm stereo, (1/4") balanced: +26 dBu 6.3 mm (1/4") mono, unbalanced: +26 dBu
Net Weight	930g, without accessories
Power Output	10 mW/50 mW (switchable), 50 ohms Limited to 10 mW within 863 MHz to 865 MHz Following national regulations
Power Requirement	12-18V DC, 600 mA
Spurious Emissions	Following national regulations
