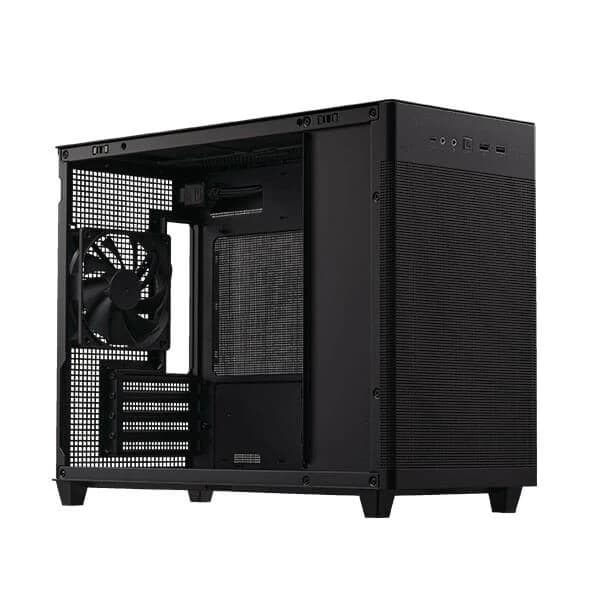

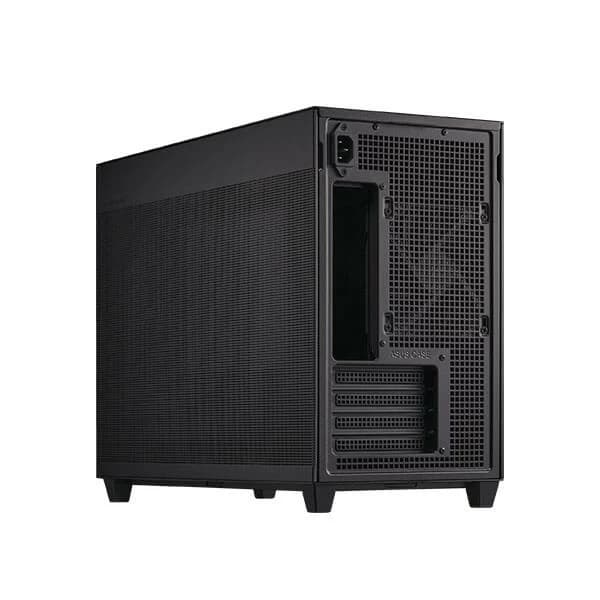

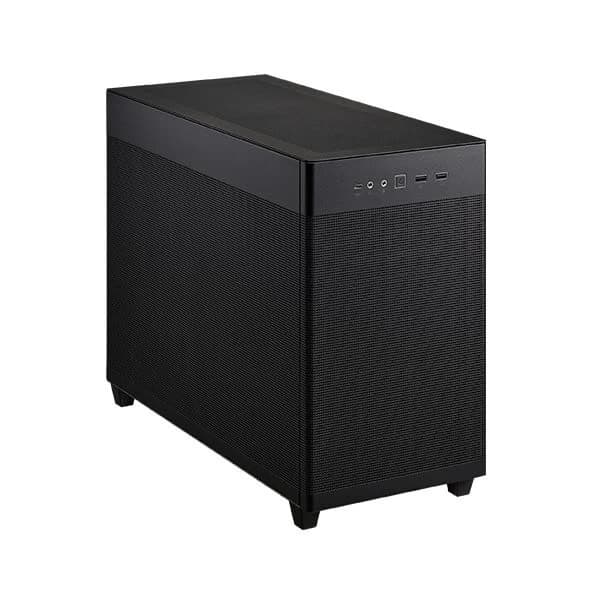

Asus Prime AP201 (M-ATX) Mini Tower Cabinet (Black)
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

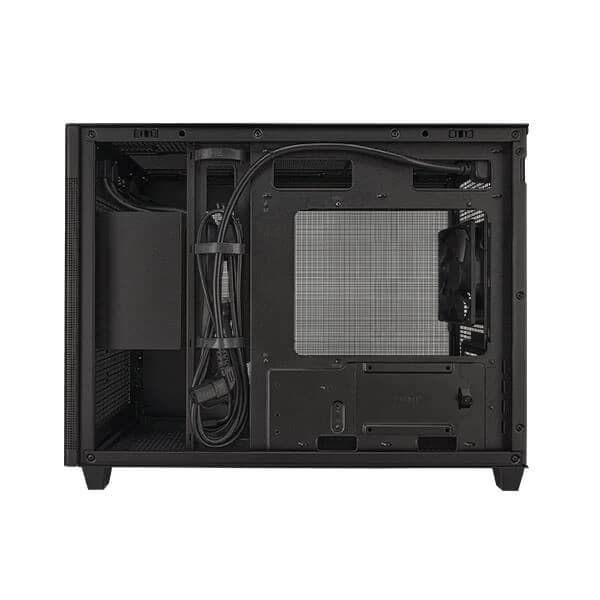

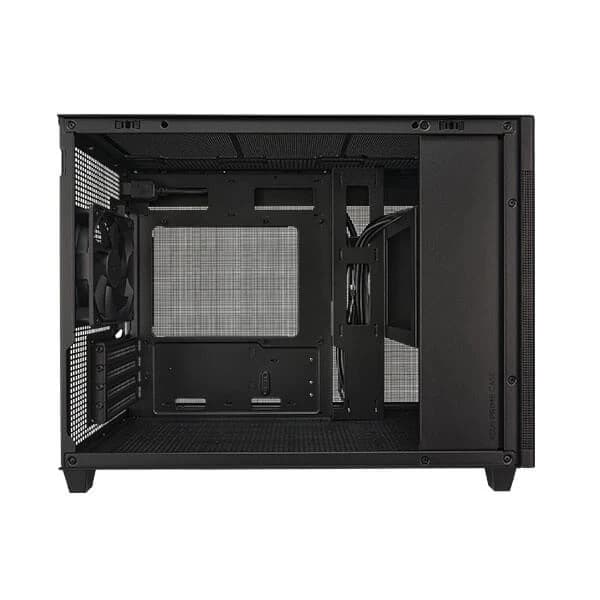

- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.

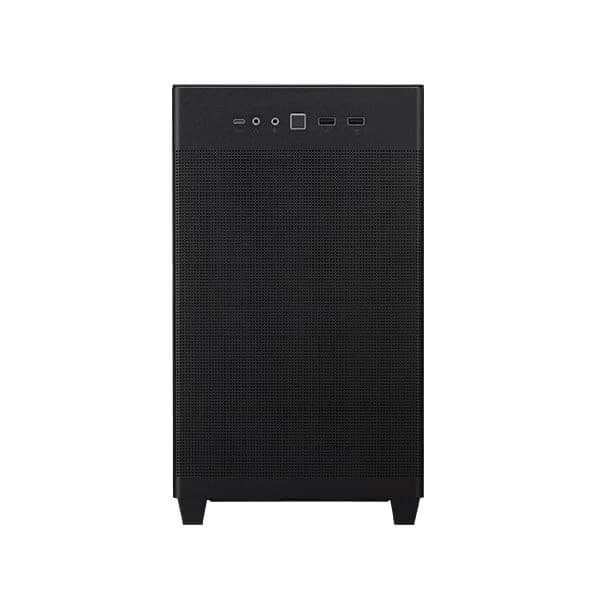

- Asus Prime AP201 Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Original price was: ₹9,300.00.₹5,799.00Current price is: ₹5,799.00.
Asus Prime AP201 (M-ATX) Mini Tower Cabinet (Black)
Features:
The ASUS Prime AP201 is a stylish 33-liter MicroATX case with tool-free side panels, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.
- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
- Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Go Big. Stay Compact.
A breakthrough in micro ATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels also provide easy access, and they complete a tasteful, minimalist aesthetic.
Quasi-Filter Mesh Panels
The AP201 mesh design is comprised of over 57,000 precision-machined 1.5mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build.
Industry-Leading Spatial Efficiency
Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.
Removable Dust Filter
The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.
Tool-Free Side Panels
Instead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.
Available in Two Colors
The AP201 is available in either black or white, giving you options to create a rig that blends in or stands out.
Build Small. Play Big
This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
| Model | AP201-BLACK |
| Motherboard Compatibility | Micro-ATX, Mini-ITX |
| Color | Black |
| Dimension (W*H*D) | 205 x 350 x 460 mm (33L) |
| Weight | 7 kg |
| Materials | Steel, Plastic/Steel, Plastic |
| I/O Ports | 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen 2 (Type-C), 1 x Headphone, 1 x Microphone |
| 3.5"/2.5" Drive Bays | 3 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 |
| Vertical VGA | NA |
| Maximum GPU Length | 338 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum PSU Length | 140-180 mm |
| Radiator Compatibility | Top: 120/140/240/280/360 mm, Rear: 120 mm |
| Cooling Support | Top: 2 x 140mm / 3 x 120mm, Rear: 1 x 120 mm, Bottom: 2 x 120 mm |
| Pre-installed Fans | Rear: 1 x 120 mm |
| Removable Dust Filters | Bottom |
| Cable Routing | Max. 32mm |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without prior notice. |
| Weight | 2 kg |
|---|---|
| Product Type | |
| Brands | |
| Radiator Size | |
| Case Form Factor | |
| Motherboard Size | |
| Motherboard Series | |
| EAN / UPC Code |
