Antec Signature 1300 Platinum SMPS – 80 Plus Platinum
- Antec Signature 1300 Guaranteed 1300W of continuous power from Antec
- 80 PLUS Platinum certified up to 94 percent efficient, to reduce your electricity bill
- Antec quality 10-years warranty
- 135mm double ball bearing fan with super silent cooling
- Japanese capacitors achieve unprecedented tight voltage regulation and low ripple and noise to maximize your system’s performance
- Country of Origin: China
Original price was: ₹37,400.00.₹24,385.00Current price is: ₹24,385.00.
Features
Antec Signature 1300 Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.
Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.
100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.
PhaseWave Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
OC Link Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
10-year Warranty
This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

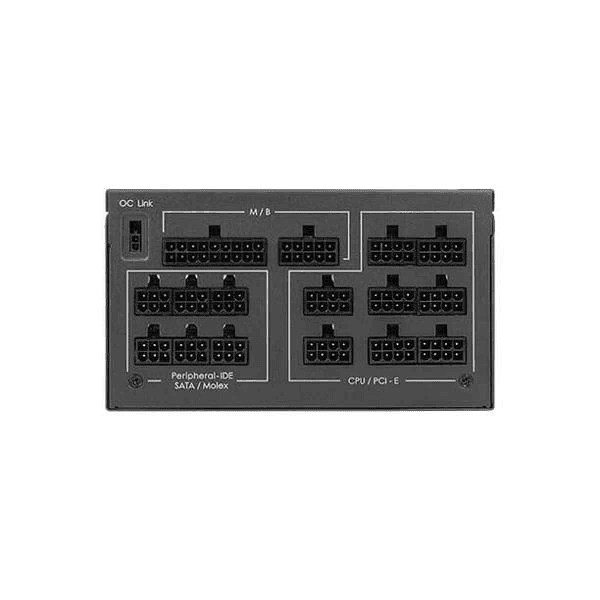

Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
| Model | Signature 1300 Platinum |
| Type | ATX |
| Modular | Fully |
| Dimension (W x L x H) | 150 x 170 x 86mm |
| Input Voltage | 100-240 |
| Input Current | 15A ~ 7.5A |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | APFC PFC at half / full load: >0.95 at AC 110v 60Hz(typical) >0.90 at AC 230v 50Hz(typical) |
| Power Good Signal | 100 ~ 500mS |
| Efficiency | At 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 89%. |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 1300W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | CB, CE, FCC, BSMI, TUV, cTUVus, 3C, KC, RCM |
| Fan | 135 x 135 x 25(mm) FDB Silent Fan |
| Certifications | 80 Plus Platinum |
| Connector |
|
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Dimensions | 14 × 15 × 9 cm |
| Brands | |
| Wattage | |
| Modular | |
| EAN / UPC Code |
