Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Intel Motherboard

Brands
  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 10+2+1 Phases Digital VRM Solution with 105A Power Stage*
  • Advanced Thermal Design with Fins-Array II, Thermal Guard III and Heatpipe
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNRHDMI 2.0 supports Premium 4K
  • Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard III
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strip
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

31,959.00

Out of stock

Email when stock available

Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Intel Motherboard

THE NEW KING OF GAMING

Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory

Features :

Intel® Gigabyte Z690M Aorus Elite AX DDR4 Motherboard with Direct 12+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Fully Covered Thermal Design , 3*PCIe 4.0 M.2 with Thermal Guard, Intel® 2.5GbE, WIFI6 802.11ax , Rear USB 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus
  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 10+2+1 Phases Digital VRM Solution with 105A Power Stage*
  • Advanced Thermal Design with Fins-Array II, Thermal Guard III and Heatpipe
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNRHDMI 2.0 supports Premium 4K
  • Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard III
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strip
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Overview :

UNPARALLELED PERFORMANCE

Gigabyte Z690I Aorus Ultra DDR4 With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

ADVANCED THERMAL SOLUTION

Gigabyte Z690I Aorus Ultra DDR4 Motherboard Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.

NEXT GENERATION CONNECTIVITY

Gigabyte Z690I Aorus Ultra DDR4 let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.

DEFINITIVE AESTHETICS

Gigabyte Z690I Aorus Ultra DDR4 several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. Gigabyte Z690I Aorus Ultra DDR4 motherboard use the best components and reinforce every slots to make each of them solid and durable.



CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors (Go to GIGABYTE's website for the latest CPU support list.)
  • L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset Intel® Z690 Express Chipset
Memory
  • DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz * Support for DisplayPort 1.4 version and HDCP 2.3 * The DisplayPort does not support HDMI connection by adapter.
(Graphics specifications may vary depending on CPU support.)
Audio
  • Realtek® ALC4080 CODEC
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2-channel
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6 AX201:
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slots conform to PCI Express 5.0 standard.)
Storage Interface
CPU:
  • 1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  • 1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the USB headers on the front of GC-Z690I BTB PLUG
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x external power connector(Note 1)
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))
  • 1 x addressable LED strip header(Note 1)
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors(M2A_CPU(Note 2)/M2P_SB(Note 1))
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x speaker header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header(Note 1)
  • 1 x reset button(Note 1)
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. (Note 1) The connector is on the front of GC-Z690I BTB PLUG. (Note 2) The connector is on the back of GC-Z690I BTB PLUG.

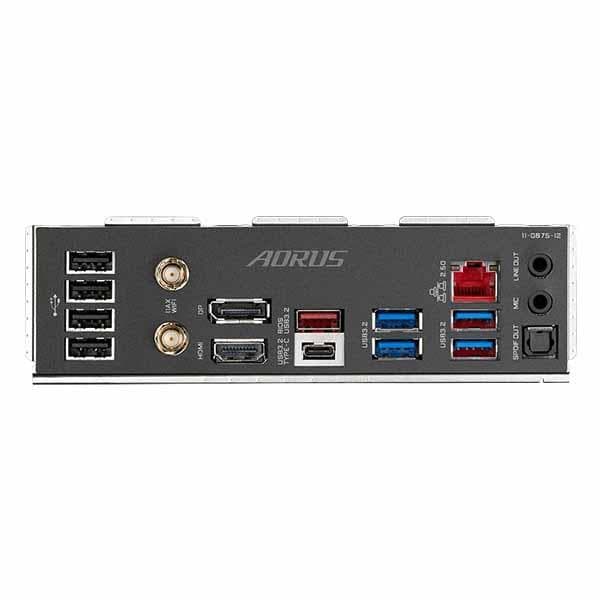

Back Panel Connectors
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 3 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor Mini-ITX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note  ***Features, Price and Specifications are subject to change without notice
