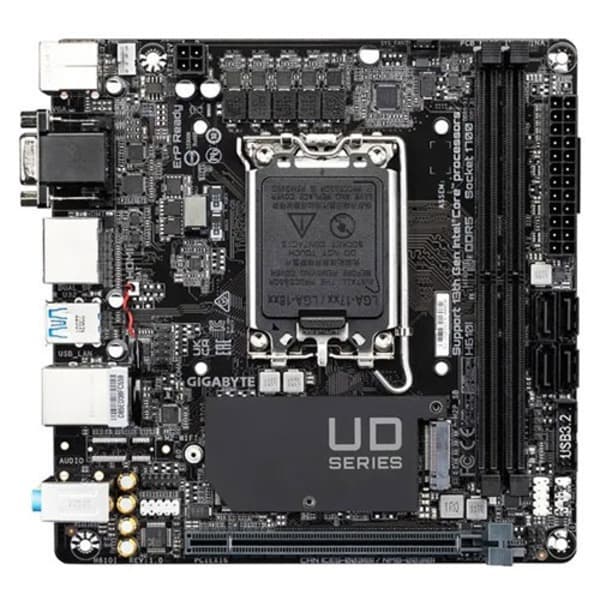

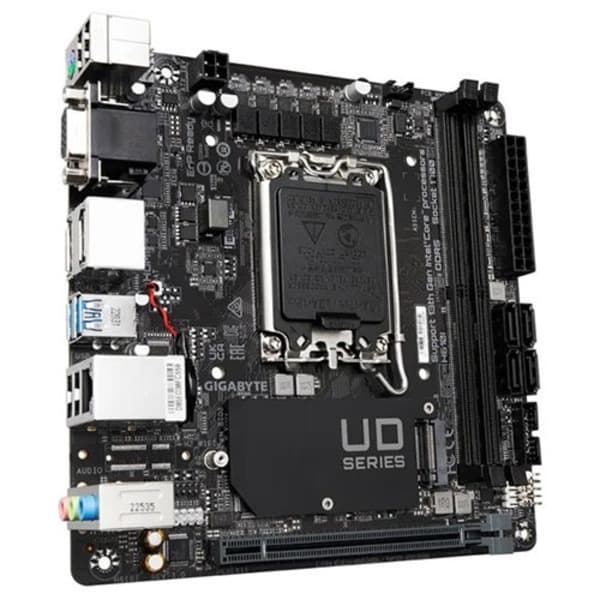

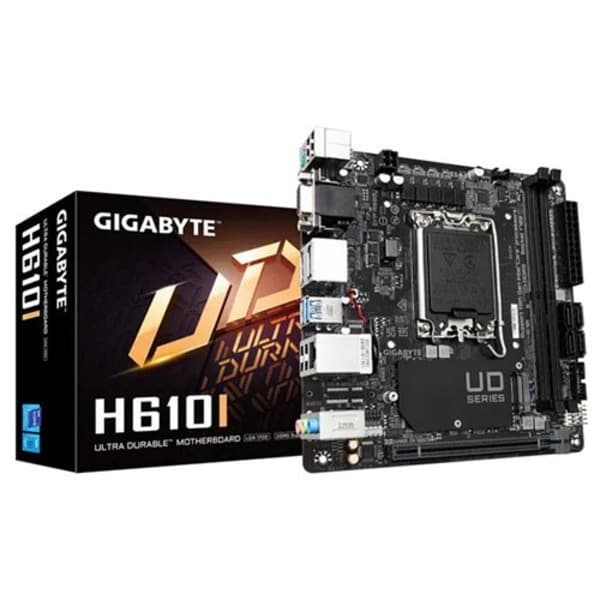

Gigabyte H610I DDR5 (rev. 1.0) Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors

GIGABYTE H610I DDR5 (rev. 1.0) Intel LGA 1700 Mini-ITX Motherboard with DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Intel GbE LAN Chip

Feature

• Supports Intel® Core™ 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
• 4+1+1 Hybrid Digital VRM Design
• Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

• 4+1+1 Phases DrMOS*.
• Solid capacitors to improve transient response and minimize oscillation.
• Solid Pin CPU Power Connector.

* DrMOS adopted only on Vcore / VGT.

XTREME MEMORY

GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.

Support for DDR5 XMP Up to 5600MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Unlock DDR5 Voltage

DDR4

DDR4 voltage is managed by MB with wide range

Native DDR5

Secure Mode

MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

GIGABYTE Exclusive DDR5 Circuit Design

Programmable Mode

GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

• • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
• • Transforms Native DDR5 memory module to Overclocked DDR5 memory
• • Increases DDR5 memory overclocking performance and capability
• • Supports all PMIC vendors for maximum compatibility

* Memory overclocking capabiblity will vary based on users' hardware configuration

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

DDR5 Memory Upgrade

GIGABYTE BIOS offers pre-defined and retrievable profiles for users to get higher performance easily. The profiles are based on a database that is created by checking each memory IC and PMIC vendors to optimize the modules to unleash their full potential. This is a time saving feature to manually configure overclocked DDR5 memory kits.

• Instantly upgrade memory performance
• Overclock Native and XMP 3.0 DDR5 memory to higher frequency easily
• No need to input dozens of memory parameters such as clock, voltage and timings
• Built-in wide variety pre-tuned profiles database for different memory IC vendors

XMP 3.0 User Profile

Define and create your own SPD profile into Native and XMP 3.0 memory modules or apply the pre-tuned profiles to XMP 3.0 User Profile. Two user-defined profiles can be saved, loaded either locally or from/to an external storage device.

• Two empty SPD profiles can be defined by users and carry to next computer
• Transfer DDR5 XMP Booster profiles into XMP 3.0 User Profiles
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support

• Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

• Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

• Slope/Stair dual mode for different user scenario

Fan Stop

• Fan can stop completely below users' specified temperature point

Hybrid Cores Optimization

With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

• Deactivate all E-Core
• Zero compromise on gaming performance
• Up to 20% lower CPU package power
• Up to 5°C lower CPU temperature

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

1. Larger contact area for electricity
2. More metal quantity to sustain higher power and generated heat
3. Ultra durable and longer lifespan

START SULFURIZATION PROTECTION

BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

APP CENTER

GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
