Gigabyte
B760
4719331872793
DDR5
Gigabyte Ultra Durable
M-ATX
LGA 1700
Black
B760M-DS3H-GEN5
1 kg
N/A
| Category | Details |
|---|---|
| CPU Support | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors |
| Chipset | Intel® B760 Express |
| Memory | - DDR5 5600/5200/4800/4400 MT/s (i9/i7) - DDR5 4800/4400 MT/s (i5/i3/Pentium/Celeron) - 4x DDR5 DIMM (up to 256 GB) - ECC/non-ECC Un-buffered DIMMs |
| Graphics (iGPU) | - D-Sub (1920x1200@60Hz) - HDMI 2.1 (4096x2160@60Hz) - 2x DisplayPort 1.2 (4096x2304@60Hz) - Quad display support |
| Audio | Realtek® Audio CODEC, 7.1-channel HD Audio, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN |
| Expansion Slots | - 1x PCIe x16 (Gen5) - 2x PCIe x1 (Gen3) |
| Storage | - 2x M.2 PCIe 4.0 x4/x2 (2280) - 4x SATA 6Gb/s - RAID 0, 1, 5, 10 |
| USB Ports | - 1x USB-C 3.2 Gen 2 - 5x USB 3.2 Gen 1 (3 rear, 2 internal) - 6x USB 2.0 (2 rear, 4 internal via headers) |
| Internal Headers | 24-pin ATX, 8-pin 12V, 3x fan, RGB Gen2, TPM, SPDIF, front panel, serial, parallel, USB headers, reset/CMOS jumper, Q-Flash Plus |

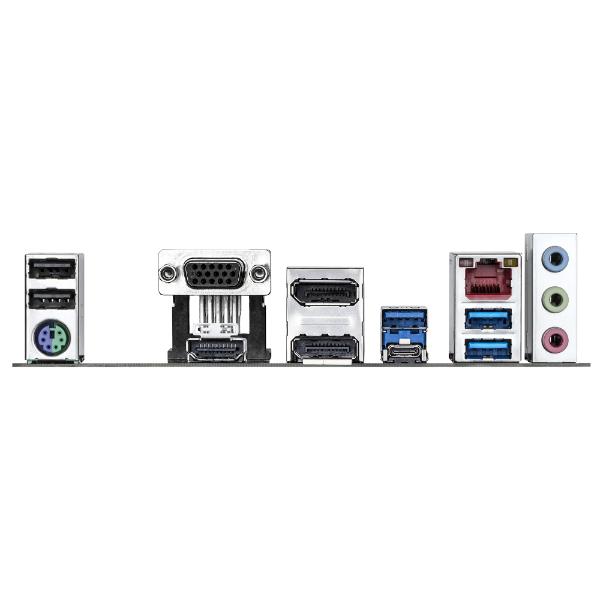

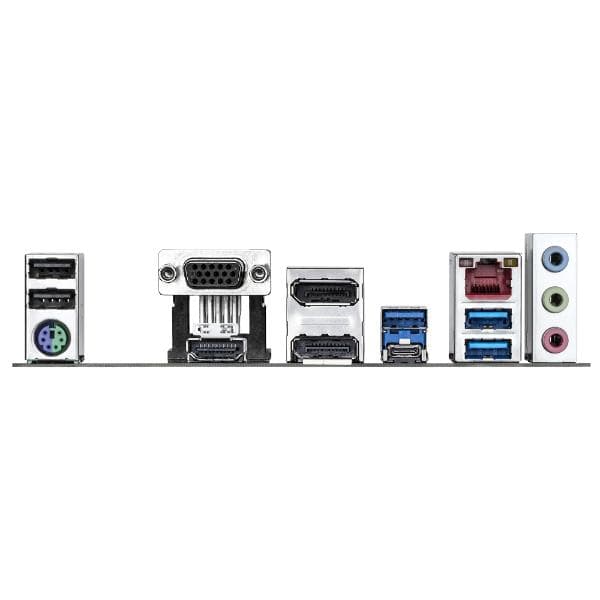

| Back Panel I/O | 2x USB 2.0, PS/2, D-Sub, HDMI, 2x DisplayPort, 3x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 2, RJ-45, 3x Audio jacks |
| I/O Controller | iTE® I/O Controller |
| Monitoring | Voltage, temperature, fan speed, water flow rate, fan fail warning, smart fan control |
| BIOS | 128 Mbit flash, UEFI BIOS, Q-Flash, Q-Flash Plus |
| Software | Norton Internet Security (OEM), GIGABYTE Control Center (GCC) |
| OS Support | Windows 11/10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
