Gigabyte
B760
4719331867638
DDR5
Gigabyte Ultra Durable
M-ATX
LGA 1700
Black
B760M-D3HP-WIFI6
1 kg
N/A
| Category | Details |
|---|---|
| CPU Support | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory Support | - DDR5 5600/5200/4800/4400 MT/s (14th/13th Gen i9/i7) - DDR5 4800/4400 MT/s (13th Gen i5/i3, 12th Gen CPUs) - 4x DDR5 DIMM (up to 192 GB) |
| - Dual channel, ECC/Non-ECC Un-buffered DIMM support - XMP profiles supported | |
| Graphics | Integrated Intel® HD Graphics: - 1 x D-Sub (1920x1200@60Hz) - 1 x HDMI 2.1 (4096x2160@60Hz) - 1 x DisplayPort 1.2 (4096x2304@60Hz) |
| * Triple display support; output depends on CPU | |
| Audio | Realtek® Audio CODEC 2/4/5.1/7.1-Channel HD Audio S/PDIF Out support |
| Networking | - LAN: Realtek® GbE LAN (10/100/1000 Mbps) - Wi-Fi: Realtek® Wi-Fi 6 (RTL8851BE), Dual Band 2.4/5GHz - Bluetooth: 5.3 |
| Expansion Slots | - 1 x PCIe x16 (CPU, Gen 4.0) - 2 x PCIe x1 (Chipset, Gen 3.0) |
| Storage Interfaces | - 2 x M.2 PCIe 4.0 x4/x2 (2280) - 4 x SATA 6Gb/s RAID 0/1/5/10 support |
| USB Ports | - Internal: 1 x USB-C (3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers - Rear: 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O | - 1 x 24-pin ATX, 1 x 8-pin 12V - 1 x CPU fan, 3 x system fans - Addressable & RGB LED headers |
| - TPM, COM, LPT, S/PDIF, Reset, Clear CMOS, Q-Flash Plus | |

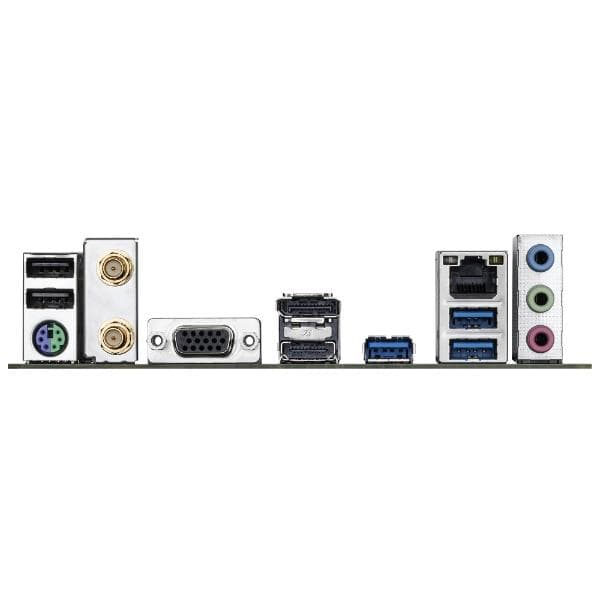

| Rear I/O Panel | - 2 x USB 2.0 - 3 x USB 3.2 Gen 1 - 1 x HDMI - 1 x DisplayPort - 1 x D-Sub - 1 x RJ-45 - 3 x Audio jacks - 2 x Wi-Fi Antennas - 1 x PS/2 |
| Monitoring | Voltage, temperature, fan speed, water flow, fan fail warning, fan speed control |
| BIOS | AMI UEFI BIOS, 128Mbit flash Q-Flash & Q-Flash Plus |
| Software | Norton® Internet Security (OEM), LAN management software, GIGABYTE Control Center (GCC) |
| OS Support | Windows 11/10 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
