No reviews yet. Be the first to review!
Optimize memory with AMD's user-friendly profiles.
Boost Performance: Get the most out of your system's memory.
Gigabyte
X870
DDR5
E-ATX
AMD
Normal
AM5
White
3 Years

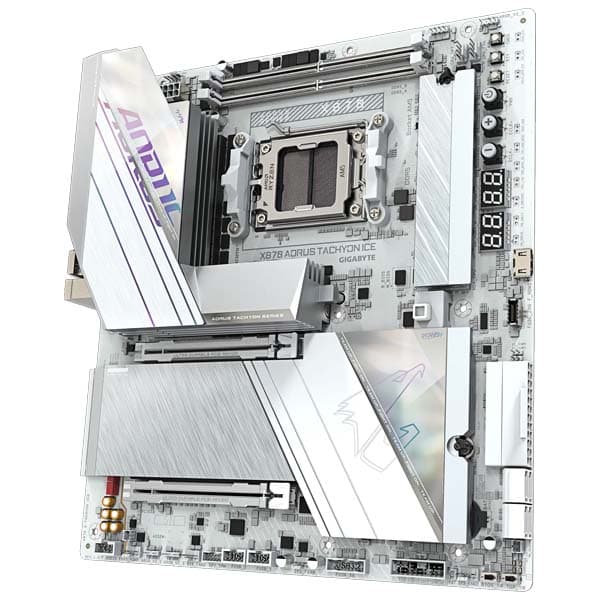

X870-A-TACHYON-ICE
2 kg
N/A
| Category | Specifications |
|---|---|
| CPU | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series / AMD Ryzen™ 8000 Series / AMD Ryzen™ 7000 Series |
| Chipset | AMD X870 |
| Memory Type | DDR5 |
| Memory Speed Support | DDR5 9600(OC) / 9200(OC) / 8800(OC) / 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| Memory Slots | 2 x DDR5 DIMM |
| Max Memory Capacity | Up to 128GB (64GB per DIMM) |
| Memory Architecture | Dual Channel |
| ECC Support | ECC and non-ECC Un-buffered DIMM |
| Memory Profiles | AMD EXPO™ / XMP |
| Graphics Output | Integrated AMD Radeon™ Graphics support |
| Rear USB4 Video Output | 1 x USB4® Type-C®, max 3840x2160 @ 240Hz, DisplayPort 1.4, HDR |
| Rear HDMI Output | 1 x HDMI, max 4096x2160 @ 60Hz, HDMI 2.1, HDCP 2.3, HDR |
| Front HDMI Output | 1 x Front HDMI, max 1920x1080 @ 30Hz, HDMI 1.4 |
| Audio Codec | Realtek® ALC1220 CODEC |
| Audio Channels | High Definition Audio, 2 / 4 / 5.1 / 7.1-channel |
| Audio Features | Back panel line out supports DSD audio |
| Digital Audio | Optical S/PDIF Out |
| LAN | Realtek® 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Module | Realtek® Wi-Fi 7 RTL8922AE |
| Wi-Fi Standards | 802.11a / b / g / n / ac / ax / be |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi Feature | 11be 160MHz wireless standard |
| Main PCIe Slot | 1 x PCI Express x16 (PCIEX16) |
| PCIEX16 Support | Ryzen™ 9000/7000: PCIe 5.0 x16 |
| PCIEX16 Support (8000 Phoenix 1) | PCIe 4.0 x8 |
| PCIEX16 Support (8000 Phoenix 2) | PCIe 4.0 x4 |
| Secondary PCIe Slot | 1 x PCI Express x16 (PCIEX8) |
| PCIEX8 Support | Ryzen™ 9000/7000: PCIe 5.0 x8 |
| PCIe Lane Sharing | PCIEX8 populated reduces PCIEX16 to x8 mode |
| PCIEX8 Limitation | Unavailable with Ryzen™ 8000 Phoenix 1 / Phoenix 2 |
| M.2 Slot 1 | 1 x M2A_CPU, Socket 3, 25110/22110/2580/2280 |
| M2A_CPU Support | Ryzen™ 9000/7000: PCIe 5.0 x4/x2 |
| M2A_CPU Support (8000) | Phoenix 1 / Phoenix 2: PCIe 4.0 x4/x2 |
| M.2 Slot 2 | 1 x M2D_SB, Socket 3, 22110/2280, PCIe 4.0 x2 |
| M.2 Slot 3 | 1 x M2B_SB, Socket 3, 22110/2280, PCIe 4.0 x4/x2 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID NVMe | RAID 0 / 1 / 5 / 10 |
| RAID SATA | RAID 0 / 1 / 10 |
| Rear USB4 | 1 x USB4® Type-C |
| Rear USB 3.2 Gen 2 Type-A | 3 x Type-A (red) |
| Rear USB 3.2 Gen 1 | 4 x ports |
| Internal USB Type-C Header | 1 x USB Type-C®, USB 3.2 Gen 2x2 |
| Internal USB 3.2 Gen 1 Header | 1 x header (supports 2 ports) |
| Internal USB 2.0 Headers | 2 x headers (supports 4 ports) |
| Power Connectors | 1 x 24-pin ATX / 2 x 8-pin ATX 12V |
| Cooling Headers | 1 x CPU fan / 1 x CPU fan-water pump / 4 x system fan / 2 x system fan-water pump |
| RGB Headers | 3 x Addressable RGB Gen2 / 1 x RGB LED strip |
| Internal Storage Connectors | 3 x M.2 Socket 3 / 4 x SATA |
| Front Panel Headers | 1 x front panel / 1 x front panel audio |
| Extra Headers | 1 x noise detection / 1 x TPM / 2 x temperature sensor |
| Internal Buttons & Switches | Power / Reset / Clear CMOS / Cold Reset / CPU Clock Up / CPU Clock Down / BIOS Switch / OC Trigger Switch |
| Special Feature | Voltage Measurement Points |
| Back Panel Utility Buttons | Q-Flash Plus / OC Ignition |

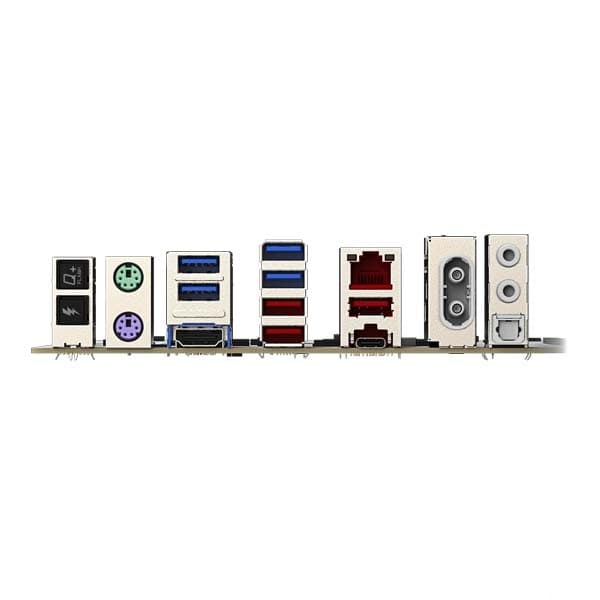

| Back Panel Legacy Ports | 1 x PS/2 keyboard / 1 x PS/2 mouse |
| Back Panel Video Ports | 1 x HDMI / 1 x USB4 Type-C with DisplayPort |
| Back Panel USB Ports | 4 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A |
| Back Panel Network | 1 x RJ-45 |
| Back Panel Wireless | 2 x antenna connectors (2T2R) |
| Back Panel Audio | 2 x audio jacks / 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage / Temperature / Fan speed / Water cooling flow / Fan fail warning / Fan speed control / Noise detection |
| BIOS | 2 x 256 Mbit flash |
| BIOS Type | AMI UEFI BIOS |
| BIOS Feature | DualBIOS™ |
| BIOS Standards | PnP 1.0a / DMI 2.7 / WfM 2.0 / SM BIOS 2.7 / ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) / Q-Flash / Q-Flash Plus / Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | E-ATX |
| Dimensions | 30.5 cm x 27.5 cm |
