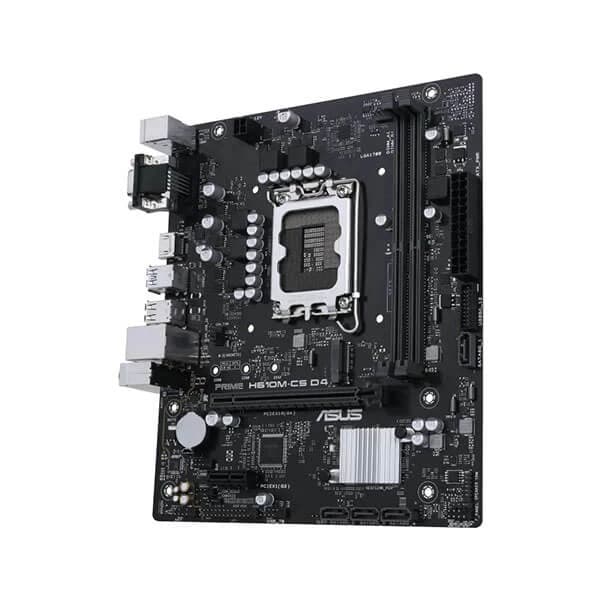

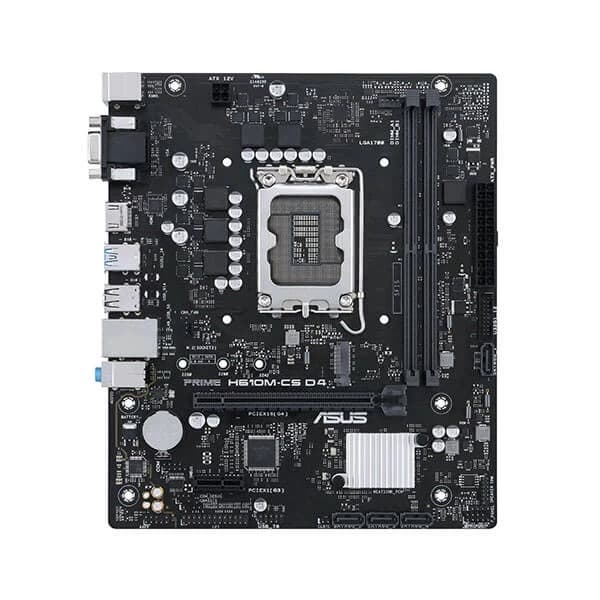

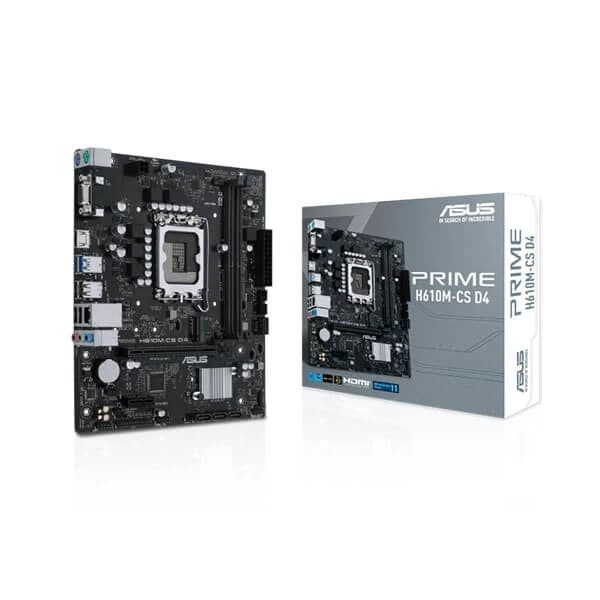

Asus Prime H610M-CS D4 Intel Motherboard
8 sold in last 1 hour
Hurry! Over 8 people have this in their carts
- Intel® LGA 1700 socket: H610M-CS D4 Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Luminous anti-moisture coating: Keep key components from moisture and corrosion
Estimated Delivery: May 06 – May 10
... people are viewing this right now
₹6,399.00
Asus Prime H610M-CS D4 Motherboard
Features
- Intel® LGA 1700 socket: H610M-CS D4 Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Luminous anti-moisture coating: Keep key components from moisture and corrosion
PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU *Refer to www.asus.com for CPU support list |
| Chipset | Intel H610 Chipset |
| Memory | 2x DIMM Max 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Graphics | 1x D-Sub 1x HDMI port *Graphics specifications may Vary between CPU types. Please refer to www.intes.com for any updates |
| Expansion Slots | Intel® 12th Gen Processors 1 x PCle 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports) 2x USB 3.2 Gen 1 ports (2x Type-A) 4x USB 2.0 ports (4x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC -Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking -Audio Shielding -Supports up to 24-Bit/192 kHz playback -Premium audio capacitors -Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 2.1 Surround Sound audio output |
| Back Panel I/O Ports | -2x USB 3.2 Gen 1 ports (2 x Type-A) -4x USB 2.0 ports (4x Type-A) -1 x D-Sub port -1 x HDMI port -1x Realtek 1Gb Ethernet port -3x Audio jacks -1 x PS/2 Keyboard (purple) port 1x PS/2 Mouse (green) port |
| BIOS | UEFI BIOS |
| Operating System | Windows 11 x64, Windows 10 x64 |
| Form Factor | micro-ATX |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Chipset | |
| Socket | |
| Memory Series | |
| Platform | |
| Motherboard Series | |
| EAN / UPC Code |
