* Memory overclocking and XMP/EXPO support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
Unlock the full power of your multi-core CPU for unmatched performance.
*7+7 phases parallel power design
Optimized for integrated GPU performance and memory management within the CPU.
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Gigabyte
X870
DDR5
mATX
AMD
AM5
3 Years
White
X870M A ELITE WF7 ICE
1 kg
N/A
| Category | Details |
|---|---|
| CPU Support | AMD Socket AM5 (Ryzen 9000 / 8000 / 7000 Series) |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM, up to 256GB, up to 8200MHz (OC), Dual Channel, EXPO & XMP support |
| Onboard Graphics | 2× USB4 Type-C (DP, up to 4K@240Hz), 1× HDMI 2.1 (4K@60Hz), 1× Front HDMI (1080p@30Hz) |
| Audio | Realtek ALC1220, 2/4/5.1/7.1-channel, S/PDIF, DSD support |
| LAN | 2.5GbE LAN |
| Wi-Fi / Bluetooth | Wi-Fi 7 (RTL8922AE), Bluetooth 5.4 |
| Expansion Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4 |
| Storage (M.2) | 2× M.2 (PCIe 5.0 + PCIe 4.0 support) |
| SATA | 2× SATA 6Gb/s |
| RAID Support | NVMe: RAID 0/1/5/10, SATA: RAID 0/1 |
| USB Ports (Rear) | 2× USB4 Type-C, 2× USB 3.2 Gen2 Type-A, 4× USB 3.2 Gen1, 4× USB 2.0 |
| Internal Connectors | 24-pin ATX, 8-pin CPU, M.2 slots, RGB headers, fan headers, USB headers |
| Cooling Features | Fan headers, pump headers, temp sensors, water flow monitoring |

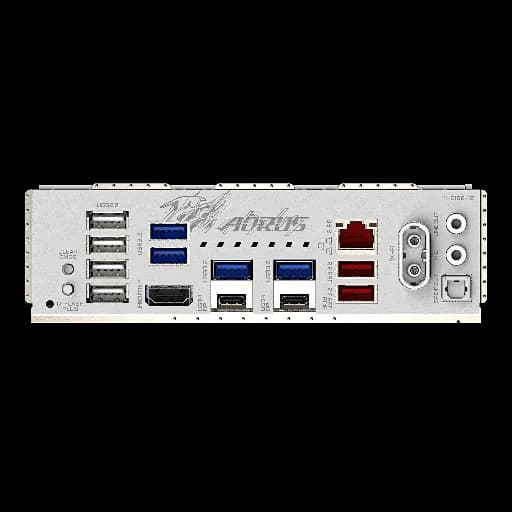

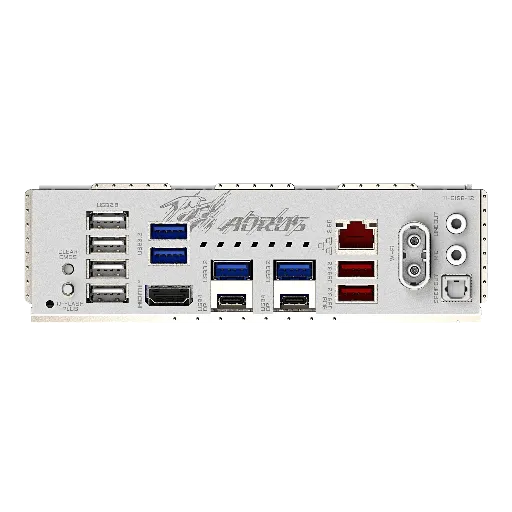

| Back Panel Ports | HDMI, USB4 Type-C, USB-A ports, RJ-45, Wi-Fi antenna, audio jacks, S/PDIF |
| BIOS | 256 Mbit AMI UEFI BIOS |
| Special Features | Q-Flash, Q-Flash Plus, Smart Backup, GCC support |
| Software | Norton Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
