SALE
EMI & Split Payment Options

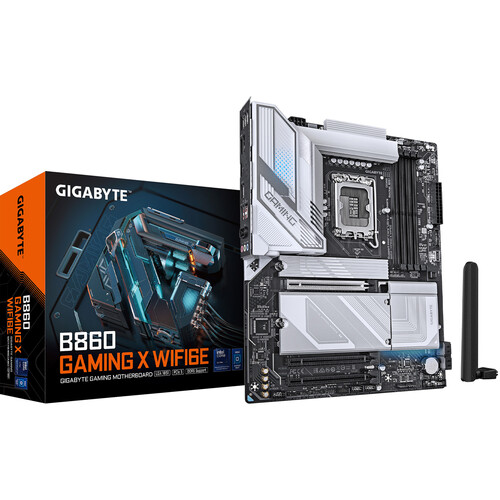

Gigabyte B860 GAMING X WIFI6E LGA 1851 ATX Motherboard
SKU: B860-GAMING-X-WIFI6E
users viewing this item right now
₹35000
₹19349
Save Extra
Availability
In Stock
- ATX Form Factor
- Intel B860 Chipset
- LGA 1851 Socket
- 4 x Dual-Channel DDR5 Slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot
- 2 x PCIe 4.0 x1
- 4 x SATA III | 3 x M.2
- 2.5GbE LAN | Wi-Fi 6E | Bluetooth 5.3
- EZ-Latch Plug, Plus, and Click
- Support for Windows 11 (64-Bit)
Gigabyte B860 GAMING X WIFI6E LGA 1851 ATX Motherboard
AORUS AI Snatch
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.
Hybrid Digital VRM Design
This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 12 VCORE phases unlock the full power of your multi-core CPU while 1 VCCGT phase is optimized for integrated GPU performance and memory management within the CPU. 2 VCCSA phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Wi-Fi EZ-Plug
The Wi-Fi EZ-Plug design integrates Wi-Fi antenna plugs into a single adapter, making it easy to install. Take full advantage of Wi-Fi 6E.
2.5GbE LAN
Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you'll be able to elevate your gaming rig for online competition.
Comprehensive Thermal
With an advanced full-metal thermal design and durable heat sinks, this motherboard is designed to keep your system cool and efficient under graphics-intensive workloads. The VRM heat sinks provide four times the cooling surface for efficient heat dissipation. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs. The RL-ILM significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader). Smart Fan 6 allows you to take full control of both your PWM and DC fans, as well as water cooling pumps.
EZ-Latch Designs
PCIe EZ-Latch Plus
Easy ejection with a single click for graphics cardsM.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Gigabyte Control Center
With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.
Key Features
| CPU | LGA1851 socket, supports Intel® Core™ Ultra Processors |
| L3 Cache | Varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | Supports DDR5 up to 9066(O.C), 4 x DIMM slots (up to 256GB), Dual-channel, ECC/Non-ECC Un-buffered DIMM support, XMP support |
| Onboard Graphics | Intel® HD Graphics, USB4 Type-C (DP 3840x2160@144Hz), DisplayPort 2.1 (3840x2160@144Hz), HDMI 2.1 (4096x2160@60Hz), Supports triple display |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5G/1G/100M) |
| Wireless | Intel® Wi-Fi 6E AX211 (Rev. 1.0) or Realtek® Wi-Fi 6E RTL8852CE (Rev. 1.1), Bluetooth 5.3, 11ax 160MHz support |
| Expansion Slots | 1 x PCIe 5.0 x16 (for GPU/NVMe SSD), 2 x PCIe 4.0 x1 |
| Storage | 1 x M.2 PCIe 5.0 x4, 2 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| USB Ports | USB4 Type-C, USB 3.2 Gen 2 (Type-A & Type-C), USB 3.2 Gen 1, USB 2.0 |
| Internal I/O | ATX power connectors, CPU & system fan headers, RGB headers, M.2 & SATA connectors, TPM header, Q-Flash Plus button |
| Back Panel | HDMI, DisplayPort, USB4 Type-C, USB 3.2, USB 2.0, RJ-45, Audio jacks, Antenna connectors |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan speed control |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, ACPI 5.0, SMBIOS 2.7 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX (30.5cm x 24.4cm) |
Color
Black
Brands
Gigabyte
Socket
LGA 1851
Chipset
B860
Platform
Intel
Warranty
3 Years
Ean-Upc-Code
4719331866532
Memory-Series
DDR5
Motherboard-Size
ATX
Motherboard-Series
Gigabyte Gaming
Only verified purchasers can leave a review.
No reviews yet for this product.
Please log in to ask a question.
No questions have been answered yet.
